Beer brewing equipment micro brewery 100L 200L 300L 500L 1000L per batch

Supplier: Shandong Shendong Equipment Technology Co., Ltd.
Region: Shandong, China
Contact: Mr NDL CRAFT
Price: $3999.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Certification:	CE / ISO / SGS;	Control:	Temperature&pressure control;
Brand Name:	NDL Craft;	Condition:	New;
Supply Ability:	50 Set/Sets per Month Beer brewing equipment micro brewery;	Warranty:	3 years;
Power(W):	10KW - 80KW;	Keywords:	Beer brewing equipment micro brewery;
Certification:	CE/ISO/SGS;	Dimension(LWH):	1260*2600mm;
After-sales Service Provided:	Field installation, commissioning and training;	Weight:	500KGS-5000KGS;
Applicable Industries:	Hotels,Manufacturing Plant,Food & Beverage Factory,Restaurant,Home Use,Retail,Food Shop,Food & Beverage Shops;	Bottom cone:	60 degree;
Packaging Detail:	1. LCL/FCL(20GP/40GP/40HQ) 2. Packed with plastic film in fumigation free wooden case or fixed with iron frame 3. Up to export standard, suitable for delivery 4. Customer's requirements available.;	Type:	vertical/horizontal type;
Processing Types:	Alcohol;	Cooling method:	glycol cooling method;
Showroom Location:	Canada,United Kingdom,United States,Germany,Australia;	Port:	Qingdao or as you need;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alibaba Trade Assurance;	Material:	SUS304;
Cleaning:	Rotary washing ball and CIP tube;	Place of Origin:	Shandong China;
Voltage:	220V/380V 50HZ/60HZ;	Processing:	Fermenting Equipment;
After Warranty Service:	Video technical support,Online support;	Local Service Location:	Canada,United Kingdom,United States,Germany,Australia;
Insulation layer:	polyurethane or rockwool;	Insulation thickness:	70~100mm;

Beer brewing equipment micro brewery 100L 200L 300L 500L 1000L 2000L per batch

NDL Craft Beeer Brewing Equipment for MARCH EXPO

5% discount, at least save you $500

What Can NDL Craft do for you?

New design: the company can design according to CE PED standards and ASME design codes

Localized after service: the company has set up three overseas branches located in the United States, the United Kingdom and Canada, as well as localized technology, sales and operation teams in Europe and the United States

New production: the company deploys a series of advanced production and testing equipment, modern production workshop of nearly 30,000 square meters, which organize production according to European and American technical and quality standards.

New Function: Programing system to achieve automatic control

Send Inquiry>>

Right Choice, Right Now

Click to See Other Promotion Products

Product Description

Brewhouse System:

A typical four-vessel brewhouse will include a Mash tun, Lauter Tun, Kettle and Whirlpool. Each of these tanks is dedicated to performing a single process, and is designed differently than similar vessel used for performing multiple processes.

Four-vessel systems offer the highest throughput and the most versatility. With proper vessel sizing, well laid out hard piping, and well-designed controls these brewhouses can be extremely large and only require one person to operate it. The ability to make more beer with less labor input, paired with gains in efficiency and quality control make the four-vessel brewhouse a worth while investment for breweries that intend to produce a lot of beer.

The alternative to a four-vessel production based brewhouse with dedicated process tanks, is two and three vessel systems with tanks that preform multiple processes. These combination tanks can be a more affordable way to start a brewery, they take up less floor space, and depending on your production goals, they might be able to last your business a very long time.

A typical two-vessel

Combination Mash Lauter Tuns are the first combination vessel in these smaller brewhouses line ups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out.
Next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle, but is equipped with a tangential fitting for whirlpooling.

A three-vessel brewhouse is hybrid system that incorporates at least one combination vessel and two dedicated process vessels. For example, a medium sized brewery with a focus on heavily hopped beers might choose to go with a combination Mash Lauter Tun, a dedicated Kettle, and a dedicated Whirlpool. Whereas, someone focusing on lagers or feeding a distilling operation might go with a dedicated Mash Tun, dedicated Lauter Tun, and a combination Kettle/Whirlpool. Three-vessel systems don’t have the same output and versatility as four-vessel systems, but they will still out perform a two-vessel system and provide increased efficiency.

1000L Brewhouse for Reference

Brewhouse is consisted of mash tun, lauter tun, kettle tun, and whirlpool tun.

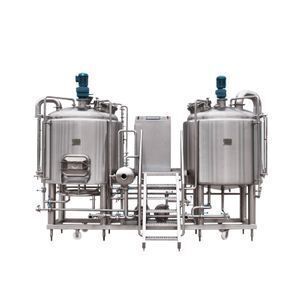

Two Vessels: (Mash lauter tun & Kettle whirlpool tun).

Send Inquiry>>

Click Here Contact Us Now!!!

Fermentation System:

3D & CAD Drawing Available, Contact Us for FREE CUSTOM DESIGN!!!

Fermentation tanks are where the magic happens. It’s important to have a precisely built vessel to condition your beer as it ferments. NDL Craft offers fermentation tanks with ultra-precise welding and polishing, complete traceability, and material exactness to meet all international safety standards. From small, pub-size fermenters to towering outdoor tanks, we have the manufacturing capability and expertise to custom-build fermentation tanks of all sizes.

1000L Fermentation System for Reference

1.) Function: Use for keep wort fermentation or maturation.
2.) Component: It is consisted of Shadowless manhole, Mechnical relief valve, Aseptic valve, Pressure gage, Rotate racking arm, Butterfly valve, Solenoid valve and etc.
3.) Glycol jacket: Dimpled plate on cone side, cooling media: glycol water or alcohol water.
4.) Cooling method: dimple plate or glycol cooling jacket around tank.
5.) Cooling media: glycol water or alcohol water.

Configuration of beer brewing equipment:

Cooling way	Ice water belt cooling
Heat exchange area	3.6m2
Material	SUS304
Inner thickness	3.0mm
External-Jacket(SUS304) thickness	1.5mm
inner surface polished accurancy	Ra0.4um
Fermentation tank pressure	Design pressure 0.3MPa; Working pressure 0.15Mpa
Cleaning System	CIP washing unit: Comprehensive cleaning
Insulation	Polyurethane-thickness: 80mm
Oval head cone bottom	thickness: 3.0mm

Company Information

NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes, and institutes production and quality control methods according to both European and American quality standards.

Based on the customized requirements of global customers, the company has established an ERP management system and has passed quality audits for internationally recognized certifications; ISO9001, 2000 International Quality Management System Certification, ISO14001 Environmental Certification, ISO18001 Occupational Health and Safety System Certification, DI, and DII Pressure Vessel Certification. We have also been recognized at a national-level as a scientific and technological innovation enterprise with 15 patented technologies granted in China.

NDL Craft attend the Exhibition all over the world, such as USA, Franch, Germany, Brazil, Australia etc, hope to see you at the Exhibition, dear all!

Our Services

3D & CAD Drawing Available, Contact Us for FREE CUSTOM DESIGN!!!

*Free Consulting Service

*24-Hours on-line service

*Free 3D & CAD drawing available

*One-stop Service

*Assist Service

*Free Accessovies

*3 years Warranty Guarantee

Customer Case

NDL Craft is a brewing equipment manufacturer and brewing technology engineering company that provides turnkey projects throughout the world.

NDL Craft with more than 10 years experience for Beer Brewery Equipment Produc industry, prefessional global craft beer and wine equipment "One-stop" suppliers

Just CONTACT US and Realize your brewing dream!!!
