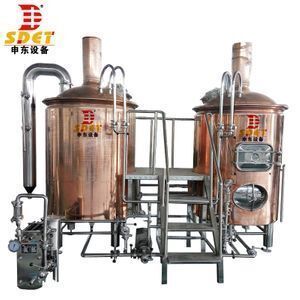

beer dispenser Luxury copper beer dispenser

System

Name

Advantage

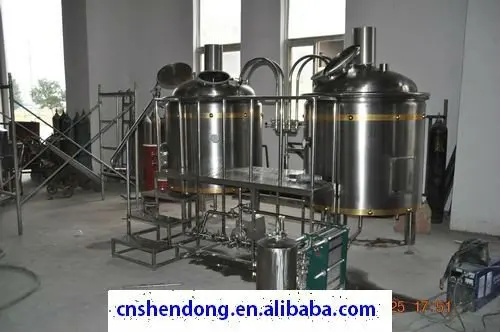

Saccharification

system

mash tun

Fliter tank

Boiling tank

whirlpool tank

1. Inner tanks all adopt the international standard of 304 stainless steel material

2. All welding are argon protection double welding, double forming.

3. Internal comprehensive cleaning, and improve the internal quality of cleaning.

4. Mechanical mixing: mixing machine USES frequency conversion stepless speed

regulation control, improve wort making time.

Malt Mills&

Handling

1. Roller width adjustable, eliminate the noise.

2. The inner is equipped with dust plate, sealed performance is good, avoid the small things

after crushing grain splash. Little dust, low noise, work environment has been greatly improved

Wort pump

1.Wort pump with open impeller, outside system seal, internal mirror polishing Ra0.4, no dead corner, no retentate after cleaning.

2. Low noise, and are resistant to chemical performance. Food grade centrifugal pump.

plate-type heat

exchanger

BR type plate heat exchanger with in high thermal efficiency, material flow resistance loss small

Compact structure, temperature control sensitive, operating flexibility, long service life, especially for high viscosity

fluid, free unpick and wash

Fermentation

System

Fermentation

tanks

1. Bladder all adopt the international standard of 304 stainless steel material, all welding are argon protection double welding,

2. The maximum increase the service life of equipment.

Refrigerating

system

Ice Water Tank

1. The refrigerating unit for water tank water cooling, through the cycle to fermentation tank, through the

plate heat exchanger to heat wort cooling.

2. Ice water medium choose industrial alcohol or edible alcohol (not including cl-), water dilution to 25%

3. The maximum increase the service life of equipment.

refrigerating unit

1. Using the latest evaporator condenser one-piece, import compressor.

2. The plate heat exchanger cooling technology, cooling effect than copper coil type 40% faster.

Ice water pump

1. Booster pump high pressure parts material for hard aluminum alloy, high pressure plunger is made of stainless steel.

2. Service life than the ordinary carbon steel long 2-3 times.

Cleaning

system

Disinfection tank

Alkali tank

sterilizing vehicle

1. Material all adopt the international standard of 304 stainless steel, all welding are argon protection

single-sided, double-sided forming.

2. One-piece CIP is convenient to move.

Filtering

system

Diatomite aseptic

filter

1. This filter than ordinary filter, the operation can save 92% energy, beer loss reduced by 90%.

2. And filtered wine and drinks, flavor is changeless, avirulent, suspended matter, sediment, clear transparent,

filtration degree is high, cover an area of an area small, light and flexible, convenient to move.

Bright beer tank

1. Bladder all adopt the international standard of 304 stainless steel material, all welding are argon protection double

welding, double forming.

2. The maximum increase the service life of equipment.

Control

system

(LG)

control cabinet

1. International standard GGD cabinet, stable performance, convenient operation, maximum limit reduces the

randomness of artificial operation, not only ensure the beer brewing quality and pure taste, more you to save

unnecessary management cost.

Cabinet put oneself in another's position with internal maintenance lamp and maintenance socket and

Improves the human, the operation is convenient.

PLC

1. All electrical components are LG, global joint guarantee, maximum limit reduces customer maintenance cycle.

2. At the same time, the first domestic PLC in input to join isolation transformer and filter, improves the PLC

operation stability and control accuracy. In addition, all of the motor are join overload, overheating, the flow,

leakage, short circuit, lack of equal protection, increasing the service life of equipment.

Line, signal lines

Signal wire the anti-interference signal line, improve the temperature acquisition accuracy, accuracy reached 0.5%,

Improves the accuracy of the beer fermentation temperature.
