Rutile Type Electrode Bridge Welding Electrode AWS A5.1 E6013 J421

Product details
Quality:High Qulity;Standard:Bridge;
Payment Terms:L/C,T/T;Main market:Global;
Product Name:E6013;Type:Welding Electrode E6013;
Brand Name:BRIDGE;Welding Current:40-70 50-90 80-130 150-200;
Operating Temperature:30;Model Number:E6013;
Application:COMMOM;Supply Ability:1000 Ton/Tons per Week;
Advantage:Small Splash;Place of Origin:China;
Operating Current:0;Certification:AWS CE ISO SGS;
Port:Tianjin xinang port;OEM:25MT;
Material:STEEL ALLOY;

Rutile Type Electrode Bridge Welding Electrode AWS A5.1 E6013 J421

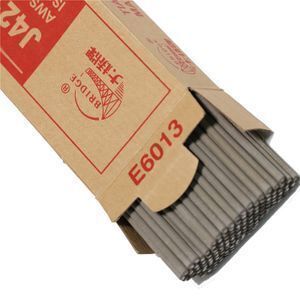

PRODUCT DISPLAY





+
J421

Rutile Type Electrode

AWS A5.1 E6013

ISO 2560-A-E35 0 RA 12

GB/T 5117 E4313



APPLICATIONS:

It is suitable for welding of low carbon steel structure, especially for the welding of thin plate steel with short discontinuous weld and requirement of smooth welding pass. CHARACTERISTICS:

J421 is a rutile type electrode. Can be welding by both AC & DC power source and can be for all-position. It have excellent welding performance as stable arc, little spatter, easy slag removal and reignition-ability etc.

ATTENTION:

In generally, don't need to re-dry the electrode before welding. When it be affected with damp, should be re-dry it at 150℃-170℃ for 0.5-1 hour.

WELDING POSITIONS:

PA, PB, PC, PD, PE, PF



J421 Rutile type electrode Less Smoke Type Electrodes

DEPOSIT COMPOSITION(Quality Score):                       %

+

items

C

Mn

Si

S

P

Ni

Cr

Mo

V

Require-ments

≤0.10

0.32-0.55

≤0.30

≤0.030

≤0.035

≤0.30

≤0.20

≤0.30

≤0.08

Typical Results

0.08

0.37

0.18

0.020

0.025

0.030

0.035

0.005

0.004



MECHANICAL PROPERTIES:

+

items

Tensile Strength

Rm/MPa

Yield Strength Rel/Rp0.2   MPa

Elongation

A/%

Charpy V-Notch

KV2(J)0℃

Require-ments

440-560

≥355

≥22

≥47

Typical Results

500

430

27

80



X-ray flaw detection: Ⅱ level

TYPICAL OPERATING PROCEDURES:(AC,DC)

Diameter

in(mm)

2.0

2.5

3.2

4.0

5.0

5.8

Current

in(A)

40-70

50-90

80-130

150-200

180-240

220-280



Classification Society Certification:

+

Ship inspection agency

ABS

BV

CCS

DNV

GL

LR

NK

CWB

Recognition level

2

2

2

2

2

2m

KMW2

E4313



The European Union certification:

Certification authority

CPD - CE certification of steel structure

Type

ISO 2560-A-E35 0 RA 12

+
PRODUCT APPLICATION



Some of our products have been applied to overseas key projects.

Electrode, SAW wire and flux of 600MPa Grade & 800MPa Grade

applied to hydro steel at Laos pumped storage power station

E6010 cellulose electrode Applied to the Ghana TEMA pipeline project in Africa successfully. It breaks the monopoly of Bohler cellulose electrode and won the bidding of oil pipeline Ghana tank project

+
