GMAW Solid Wire THQ-50C AWS A5.18 ER70S-6 CO2 g3si1mig welding wire for weld

Product details
Model Number:AWS ER70S-6;Spool materials:Plastic Spoo(Black);
Product name:Co2 Welding Wire ER70s-6;Flux Content:100%co2,75-95%Ar+Re;
Quality:top;Port:XINGANG,TIANJIN,CHINA;
Customized support:OBM;Packaging Detail:15 KGS/SPOOL,/CARTON, 72 CARTONS/PALLET=1080 KGS one container loading 22 pallets=23760 kgs 5 kgs/spool/box, 4 boxes/carton=20 kgs, 50 cartons/pallet=1000 kgs;
Type:CO2 Mag Welding Wire;Supply Ability:100 Ton/Tons per Day;
Certificate:ISO9001:2008;Payment Terms:L/C,T/T;
Place of Origin:China;Material:Copper wire;
Brand:BRIDGE;Keyword:ER70S-6;
Package:15kg/spool;Brand Name:BRIDGE BRAND;
PAYMENT:T/T L/C;Shielding Gas:100% CO2 / 80% Ar+20%CO2;
Diameter:0.8/0.9/1.0/1.2/1.6;Weight:15-25kg;
Melting Point:2700;

GMAW Solid Wire THQ-50C AWS A5.18 ER70S-6 CO2 g3si1mig welding wire for weld

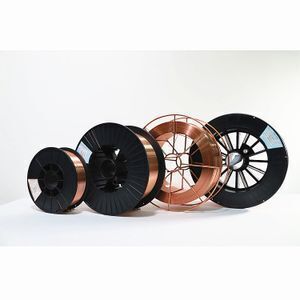

PRODUCT DISPLAY





+
THQ-50C
(ER70S-6)

GMAW Solid Wire

AWS A5.18 ER70S-6

ISO 14341-A-G42 3C1 Z3Si1

GB/T 8110 ER50-6



APPLICATIONS:

It is suitable for the welding of carbon steel and low alloy steel, such as Gr.50, and so on.

CHARACTERISTICS:

This GMAW wire is for Rm 500MPa level carbon steel with shield gas of CO2 or M21. Small spatter, beautiful appearance, high deposition efficiency and small weld metal porosity sensibility. All positions is suitable.

ATTENTION:

1. The rust, oil, water and other impurities of the weld area must be removed before welding.

2. The mechanical properties of all weld metal be decided by heat input, normally the small heat input will better than larger one.

WELDING POSITIONS:

PA, PB, PC, PD, PE, PF

Chemical composition of the welding wire (mass fraction):                   %

+

Items

C

Mn

Si

S

P

Ni

Cr

Mo

V

Cu

Standard value

0.06-0.15

1.40-1.85

0.80-1.15

≤0.025

≤0.025

≤0.15

≤0.15

≤0.15

≤0.03

≤0.50

Case of value

0.08

1.50

0.89

0.012

0.013

0.03

0.02

0.002

0.003

0.11

X - Ray Detection: Grade II

Mechanical properties of deposited metal: (CO2)

+

Items

Tensile strengthRm/MPa

Yield strength

Rel/Rp0.2   MPa

Elongation

A/%

Charpy V-notch impact energy

KV2(J)-30℃

Standard value

≥500

≥420

≥22

≥27

Case of value

560

450

26

108

Welding reference current : (DC +)

+

Welding wire diameter(mm)

0.8

1.0

1.2

1.6

Welding current(A)

50-180

70-230

80-350

120-500

Classification Society Certification:

+

Ship inspection agency

ABS

BV

CCS

DNV

GL

LR

NK

KR

CWB

 level of

recognition

3YSAH10

SA3YMHH

3YSH10

ⅢYMS(H10)

3YS

3YSH15

KSW53G(C)H10

3YSG(C)H10

B-G49A3CG6

EU certification:

+

Certification body

CPD-CE steel structure certification

Model

G42 3 C1 Z3Si1



+
PRODUCT APPLICATION



Some of our products have been applied to overseas key projects.

Electrode, SAW wire and flux of 600MPa Grade & 800MPa Grade

applied to hydro steel at Laos pumped storage power station

E6010 cellulose electrode Applied to the Ghana TEMA pipeline project in Africa successfully. It breaks the monopoly of Bohler cellulose electrode and won the bidding of oil pipeline Ghana tank project

+
RELATED PRODUCTS

+
         Welding Wire Flux Cored Welding Wire
         MORE >> MORE >>
+
ABOUT US



Tianjin Bridge Welding Materials Group Co., Ltd., founded in 1957, is one of the largest welding consumables manufacturing enterprises in China. In the past half century, "BRIDGE " welding consumables sell well in more than 60 countries and regions. "BRIDGE”welding consumables has 4 categories, 500 types more,including covered electrodes (SMAW), solid wire/Rod (GMAW & GTAW), flux-cored wire/Rod (FCAW) and sub arc wire/strip & flux (SAW/ESW). They are for welding steel of non-alloy & fine grain steel, creep resistant & weatherproof steel, stainless steel, surfacing welding, cast iron, Ni & Ni-alloy steel, AI & Al-alloy steel, Cu & Cu-alloy steel and other special welding & cutting. Our products are widely used in construction, shipbuilding and offshore, land traffic and aerospace, boiler and pressure vessel, energy, household appliance, machinery manufacturing,military industries and many other fields.

Keeping improvement and development for product technology and quality continually, which always make us the leader in welding consumables industry. Tianjin Bridge Welding Materials Group Co., Ltd. Passed ISO9001, ISO14001, OHSAS18001 and ISO5001 approvals. Our products of shipbuilding & offshore are approved by ABS, BV, CCS, DNV.GL, LR, NK, KR, RINA, RS, BKI and CWB. Main products are approved by CPD-CE, DB-AG and VD-TUV.

Our: Guiding Ideology- "People-oriented, pursuing sustainable development" Quality policy- "pursuing perfect quality, establishing a good corporation reputation, with excellent quality and service" Principle- "Customers' satisfaction is the first"



We are the professional and perfect partner

of yoursin welding consumables.

+
F A Q



Q: what is delivery time / lead time ?

A: 30 days

Q: what is your minimum order ?

A: 5000kgs

Q: what is your payment term ?

A: 1- 30% down payment for order confirmation, 70% before shipment.

    2- 100% at sight LC

Q: can we visit your factory ?

A: yes you can at your free time.
