Zibo factory 1.6mm175mm 1/16"7" WT20 Thorium/thoriated tungsten electrode DC for tig welding

Supplier: Zibo Huaxiang Tungsten Molybdenum Products Co., Ltd.
Region: Shandong, China
Contact: Ms Christina xue
Price: $0.30 /piece
Min. Order: 1 piece

Click here to contact

Product details

brand:	real	Package preview:
Warranty:	3 years	application:	Argon arc welding, arc welding, direct current
Welding current:	standard	place of origin; place of origin:	Shandong China
surface:	ground treatment	model:	1.6X175MM,1/16"X7"
Model:	WT20/EWTh-2	standard:	EN26848/ISO6848
Packaging Details:	Inner packing: 10 pcs/plastic box with label, 10 pcs plastic box/ordinary carton Outer packing: 10 pcs ordinary carton/big carton, big carton size 26cm x 45cm x 17cm We can also pack the goods according to customer's requirements.	color:	Red
diameter:	1.6 mm, 1/16"	Material:	tungsten
sample:	freely	Customization support:	OEM production
MOQ:	1	usage:	Argon arc welding
Supply capacity:	20 metric tons per month	payment terms:	L/C, Western Union, T/T
Operating temperature:	standard	Working current:	50-100
port:	Qingdao/Tianjin

Product Description

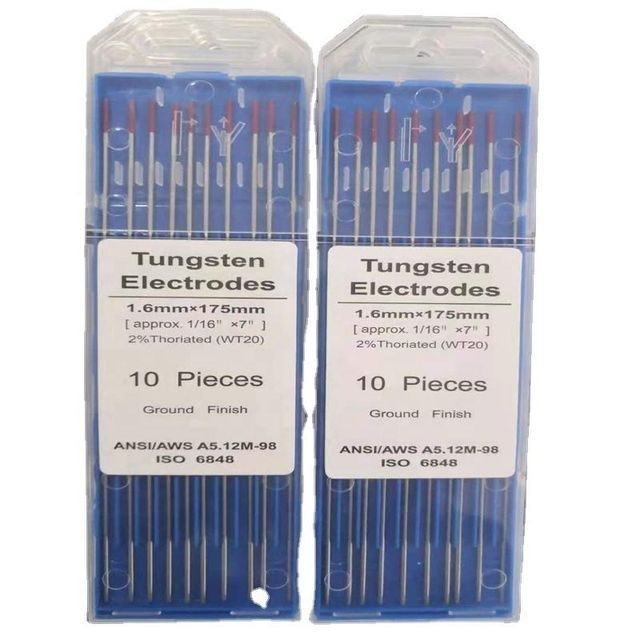

WT20 tungsten electrode

Thoriated tungsten electrodes are widely used as additive oxide electrodes. The operation is convenient, the load current is large, and the arc is easy to stabilize. In addition, the arc breaking gap is large, the loss is small, and the service life is long. Tungsten WT20 has a higher recrystallization temperature, better electrical conductivity and machinability, and is suitable for welding carbon steel, stainless steel, nickel alloy and titanium. Thoriated tungsten electrodes become the material of choice for high-quality welding

Technical data

trademark	Add impurities	Impurity content%	Impurity content%	tungsten content%	color sign	standard
WT10	Sulfur oxide₂	0.90~1.20%	<0.2	balance	yellow	IS06848 AWS A5.12M
WT20	Sulfur oxide₂	1.8~2.2%	<0.2	balance	Red
WT30	Sulfur oxide₂	2.80~3.20%	<0.2	balance	purple
WT40	Sulfur oxide₂	3.80~4.20%	<0.2	balance	tangerine
