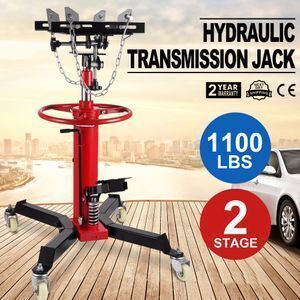

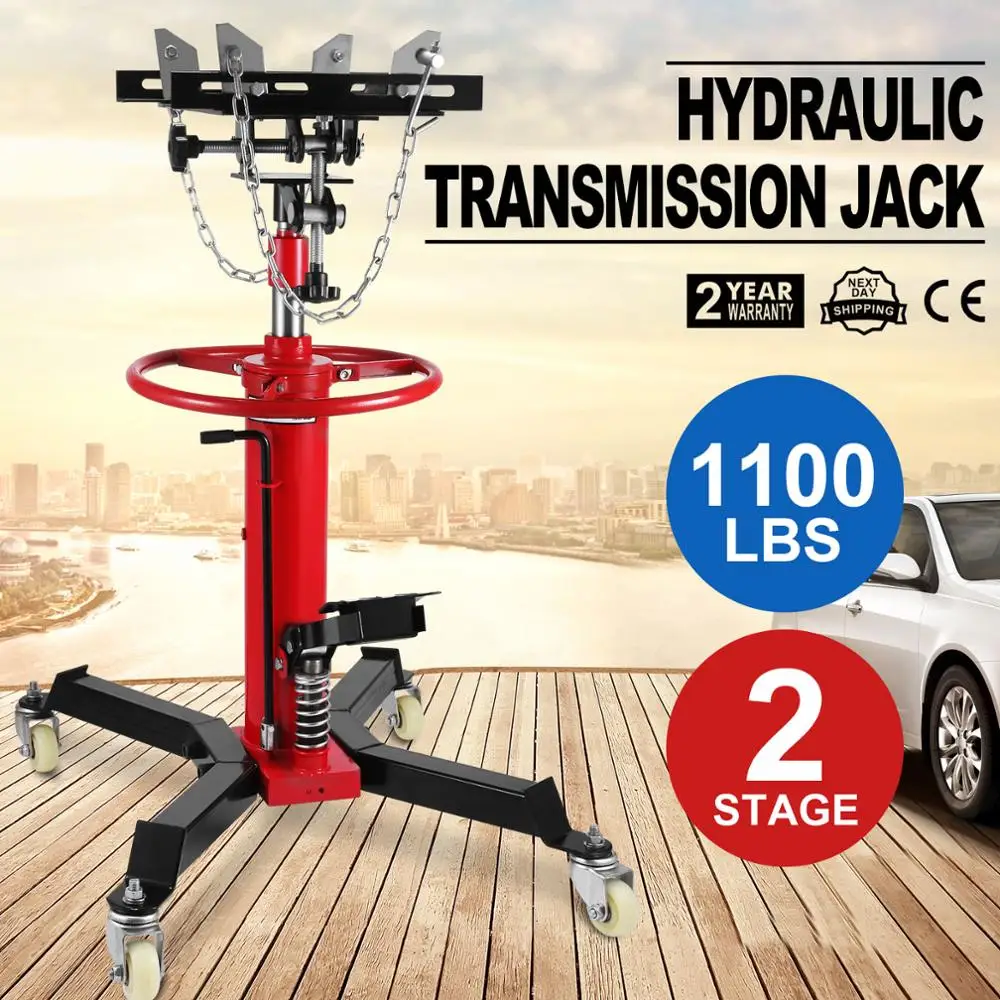

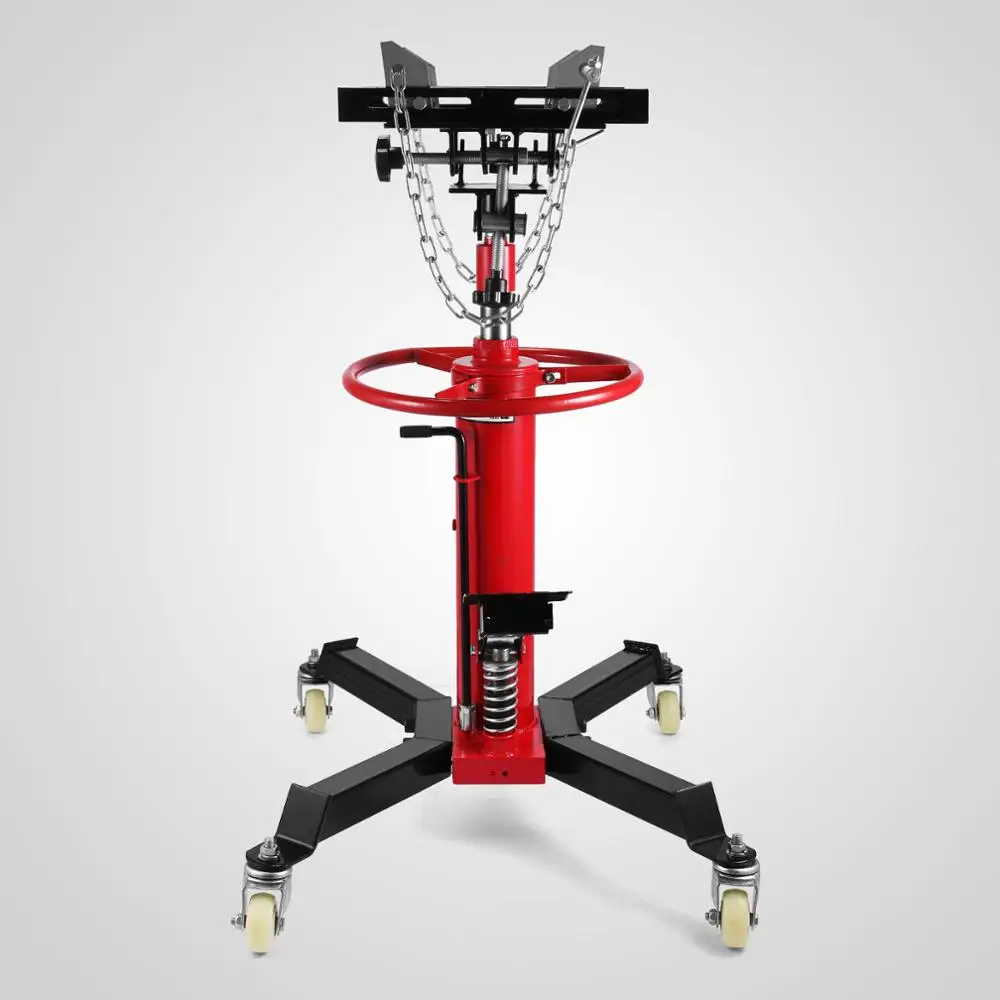

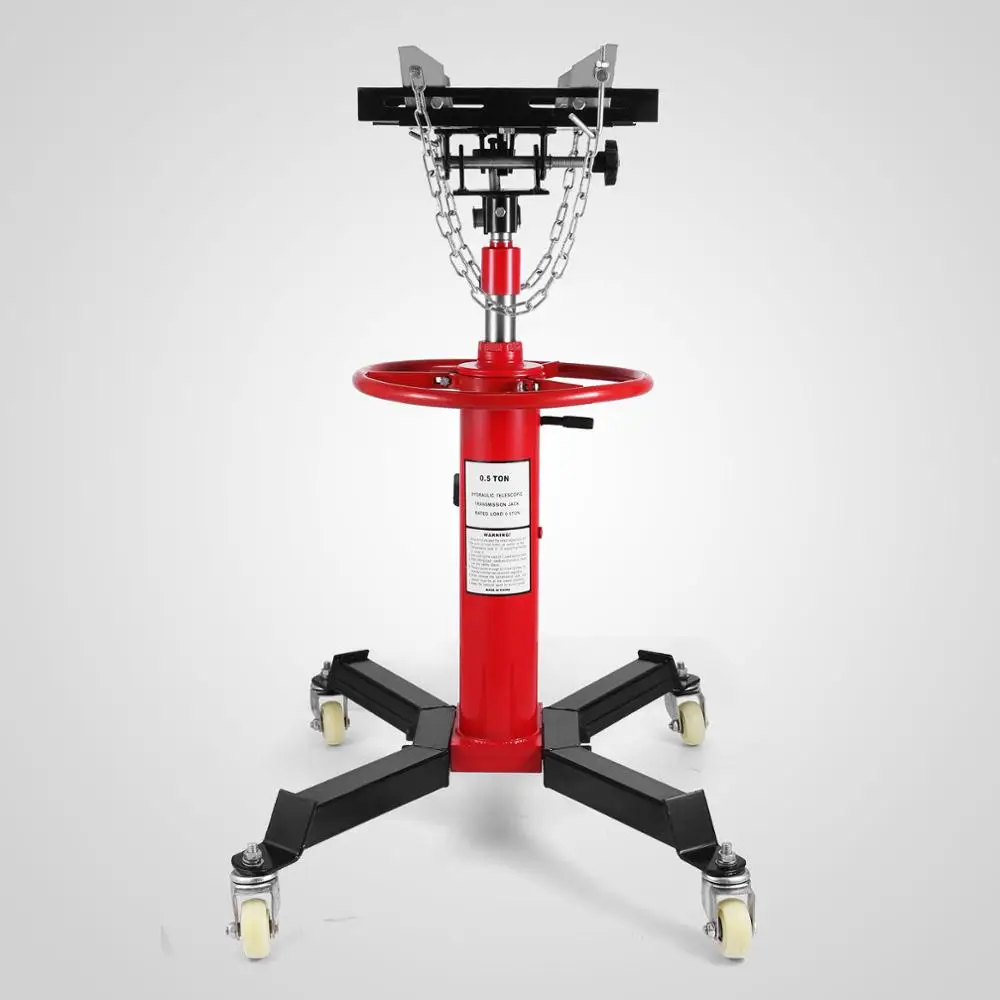

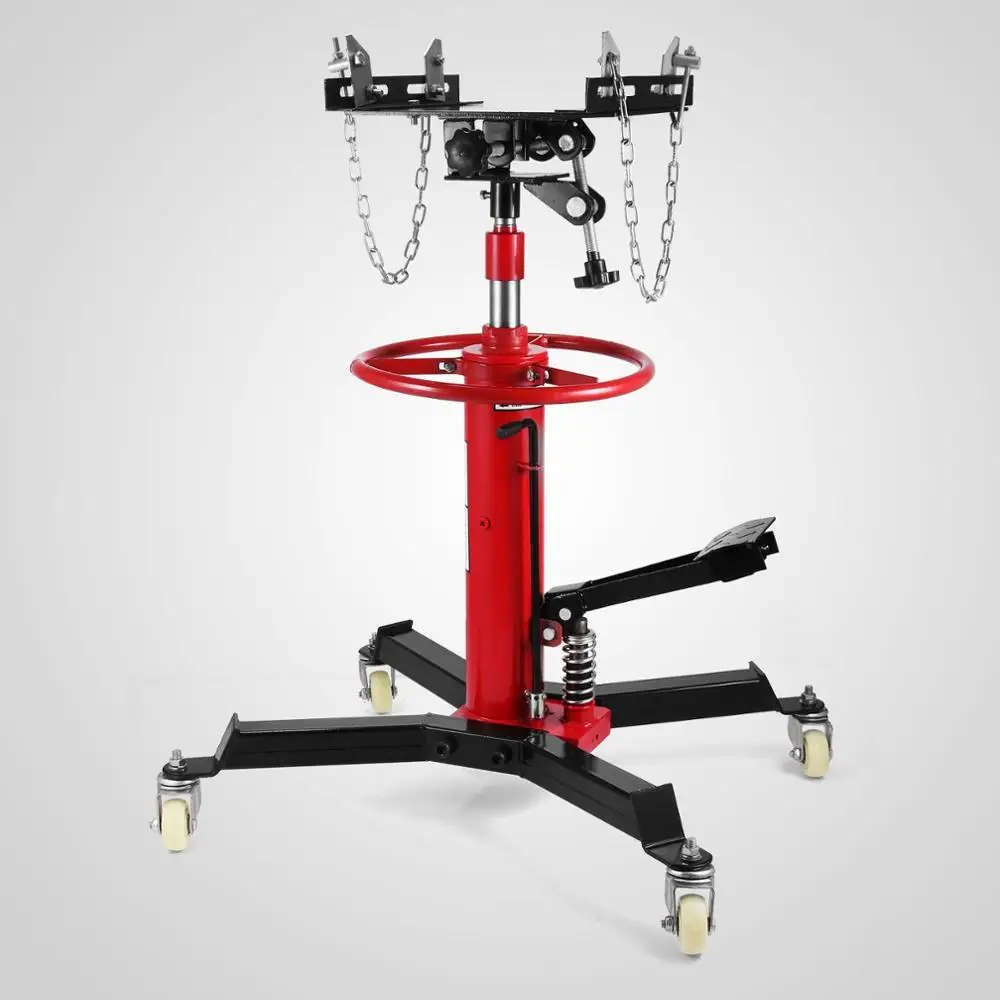

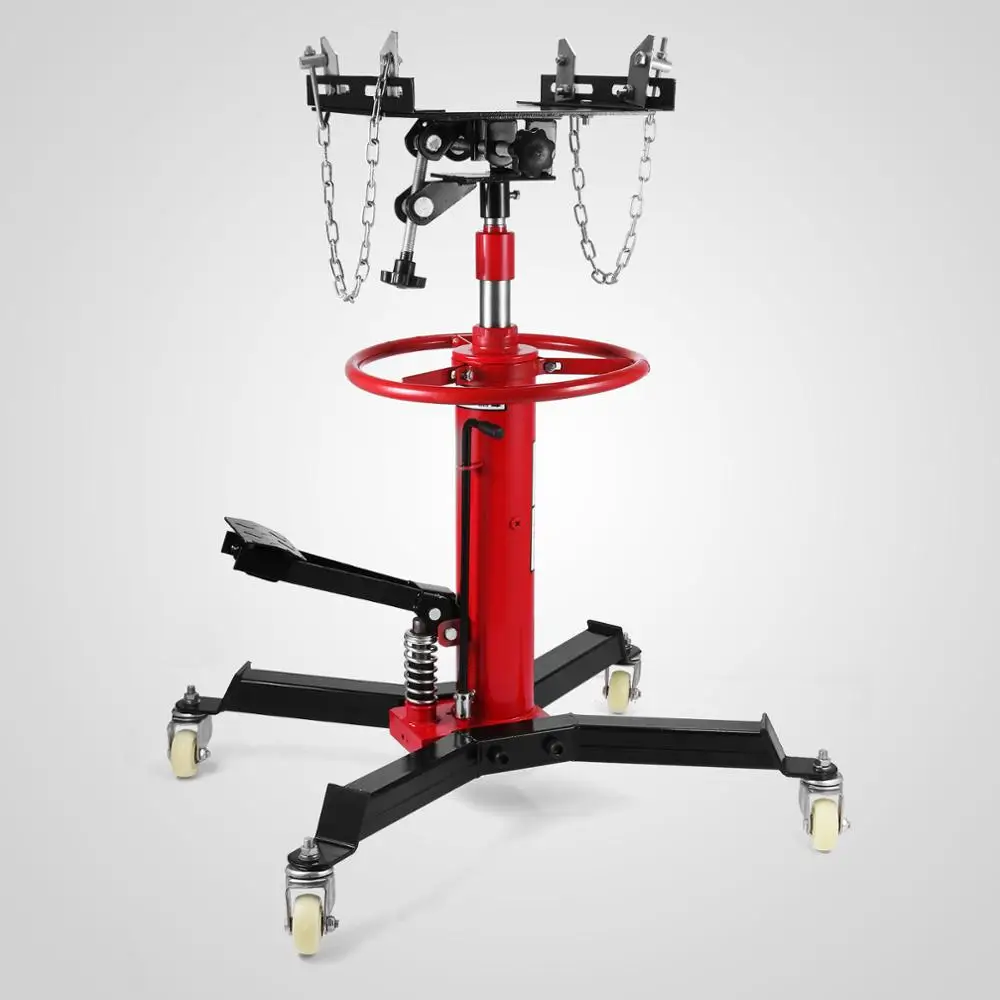

Transmission Jack 500kg 1/2 Ton Capacity Hydraulic Transmission Jack 2 Stage 360 Swivel Wheel Transmission Jack

Introduction

Application:
Two 26''long safety chains for securing the transmission on the saddle, The hydraulic transmission Jack is mainly used in high position installation and removal of automobile gearbox,car engines , conveyor of front and rear axles and other objects weighing no more than 500KG, It is a necessary lifting and convey tool for antomotive repair and maintenance facility.

• Telescopic two-stage hydraulic ram for greater lift range
• Steering handle fixed at the middle of the jack for easy transporting of load
• Foot operated pump and lowering pedal allow mechanic to position and align the transmission with both hands
• Close the oil return handle before pumping through the pedal to lift the jack and open it to lower the jack
• Wide,stable four-leg base with 4 cast iron swivel casters for ease of mobility
• Strong heavy duty steel construction for maximum durability

Safety Warnings:
This transmission jack is only used for the removing and installing automotive transmissions or specified components only. This transmission jack is designed for use only on hard level and smooth surfaces, read understand and follow all instructions before operating this jack, Vehicle must be properly and adequately supported before starting repairs.

Operation instructions:
Monthly Maintenance is recommanded,This product must be maintained after each-use to ensure that it works properly
A handle socket should be greased
B pump and ram piston
C linkage attached to the lift flatform

Features

• Two 26''long safety chains for securing the transmission on the saddle
• Telescopic two-stage hydraulic ram for greater lift range
• SteerTing handle fixed at the middle of the jack for easy transporting of load
• Foot operated pump and lowering pedal allow mechanic to position and align the transmission with both hands
• Close the oil return handle before pumping through the pedal to lift the jack and open it to lower the jack
• Wide,stable four-leg base with 4 cast iron swivel casters for ease of mobility
• Strong heavy duty steel construction for maximum durability

Technical

• Red and Black Heavy Duty Powder Coat Finish
• Load Capacity: 1100Lbs (0.5 TON)
• Rated Capacity : 1100Lbs / 500Kg

• Lift Range: 33"~ 70"

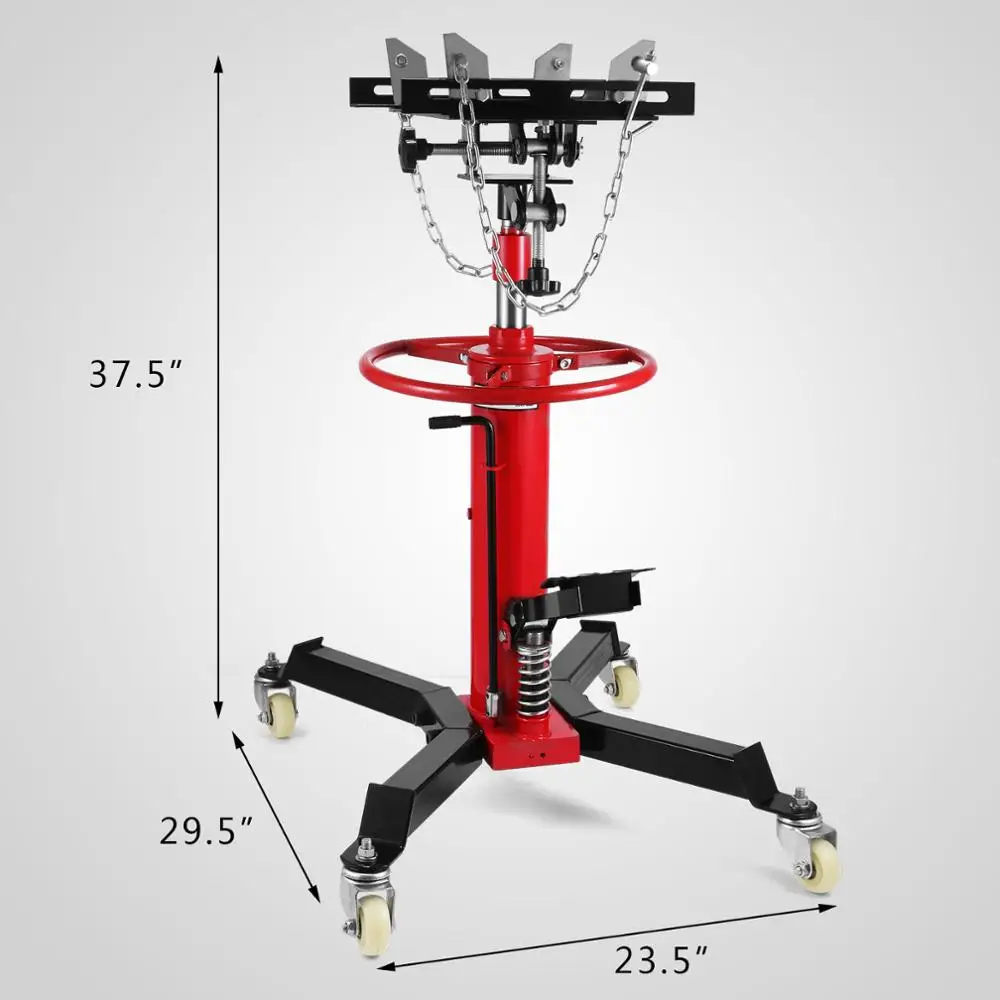

• Physical size: 22.8*29.5*36.2(in) / 58*75*92 (cm)
• Two years Warranty
• 2- 28" Chains
• 29.5"x 23.5" Base
• Steel 3" 360 Degree swivel Wheels
• Foot Pump
• Multi Angle Adjustment
• Easy Assembly
• Wide base

 Package

• 1* Main Machine 1100 LB 2 Stage Hydraulic Transmission Jack
• 1* Operation Manual
• Some Other Accessories
