small retort sterilizing autoclave for cans pouched foods glass jar

Supplier: Zhucheng City Dingsheng Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms June wang
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1-3 Years;	Application:	small scale retort for food;
Dimension(LWH):	220010002000MM;	Port:	free;
Certification:	CE ISO;	Brand Name:	DINGSHENG;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Capacity:	60-350 liter;
Power(W):	3200w;	Place of Origin:	Shandong China (Mainland);
Delivery Detail:	Shipped in 15 days after payment;	Model Number:	small sterilizer retort;
Condition:	New;	material:	stainless steel SUS304/sus316;
After-sales Service Provided:	Engineers available to service machinery overseas;	operation way:	semi or full automatic;
Name:	small retort sterilizing autoclave for cans pouched foods glass jar;	Packaging Detail:	pack this small retort sterilizing autoclave for cans in wood case;
Type:	Autoclave;	Supply Ability:	2 Set/Sets per Week small retort sterilizing autoclave for cans pouched foods glass;
working pressure:	0-0.44 mpa;	working temperature:	0-135 degree centigrade;
Voltage:	accoding to customers;	heating way:	electric or gas;
Weight:	350kg;	delivery:	15 days;
Usage:	Canned Food;

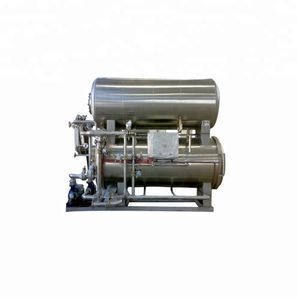

small retort sterilizer autoclave for can /pouched food/ glass bottle/jar

small retort sterilizer autoclave for can /pouched food/ glass bottle/jar is a retort machine for food sterilization so as to prolong the shelf time ,and this small model is always used to sterilize food in laboratory.and it is very suitable for food in can,meat in can and vegetable and fruit in jars. and it adopts spray type sterilization ways .

Basic Principle

1. Atomized sterilizing water can enlarge the heat-exchanger area in order to reach the

efficient heat-exchange.

2. Steam and water will directly exchange the heat in the autoclave. Steam heat can be 100% used, saved heat energy and gained the maximum energy utilization.

3. In order to setting temperature, a small amount of circulating water will be quickly circulated within the well-distributed water temperature.

4. Sterilizing water is sprayed in all angles which create high temperature airflow inside the autoclave; this can ensure the well-proportioned temperature inside.

other type canning retrot machine from our factory

Related Retort

Accessories

Automatic rotort parts	Pump	Butterfly valve	Angle valve	Pressrue Sensor	Temperature sensor	Control system	Trays
Brand	BAOGE	SOMO	BURKERT	SANBU	MEAS	SIEMENS	DS
Origin	China	Germany	Germany	Japan	Amerca	Germany
Pricture

Parameter

Spec	DS-700	DS-900	DS-1000	DS-1200	DS-1300
Inner D (mm)	700	900	1000	1200	1300
Cylinder L(mm)	1200	1800	2200	3600	4000
Total H(mm)	2100	3400	3700	4000
Net capacity (m3)	0.5	1.17	1.78	4.82	6.20
Weight(unload)(t)	0.6	0.9	1.5	2.2	2.6
