YIHUA 3005D-II dual channel output variable adjustable laboratory precision dc power supply details
carton size:46*34.5*23.5CM;Supply Ability:1000 Piece/Pieces per Month;
Brand Name:YIHUA;Payment Terms:L/C,T/T,Western Union,Visa;
Input Voltage:110v/220v/230v/240v Optional;Output Voltage:30V/60V;
Model Number:3005D-II;Output Frequency:50/60Hz;
Port:Guangzhou;Output Power:500W;
Output Type:DUAL;Packaging Detail:1PC/CTN;
CARTON G.W.:10.5KG/CARTON;Place of Origin:China;
Q'ty:1PCS/CARTON;Output Current:5A/10A;

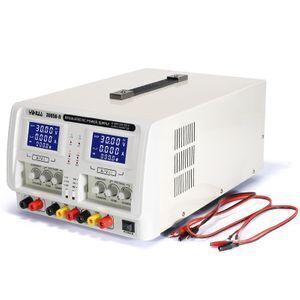

YIHUA 3005D-II dual channel output variable adjustable laboratory precision dc power supply



1.4 digits display for accurate displaying of current values,precise to mA value,the machine is built

with SMT manufacturing and the latest technology

2.The machine inside transformer is copper,and inside have fan ,when the machine work temperaute over 45 degree,the fan will be work,it is good for heating radiation,can prolong the machine life.



Parameters

Ⅰ,Ⅱ Channel II Independent Mode

Output Voltage

Continuously adjustable between 0-30V

Output Current

Continuously adjustable between 0-5A

Power Effect

CV≤0.01%+1mV   CC≤0.2%+1mA

Load Effect

CV≤0.01%+5mV (I≤3A)    CC≤0.2%+5mA (I≤3A)

CV≤0.01%+7mV (I>3A)     CC≤0.2%+10mA (I>3A)

Ripple Noise

(5Hz-1MHz)

CV≤0.5mVrms (I≤3A)  CC≤3mArms (I≤3A)

CV≤1mVrms (I>3A)    CC≤5mArms (I>3A)

Voltage Accuracy

±0.5%rdg+2 characters

Voltage Accuracy

±0.5%rdg+2 characters

Display Resolution

±0.5%rdg+2 characters

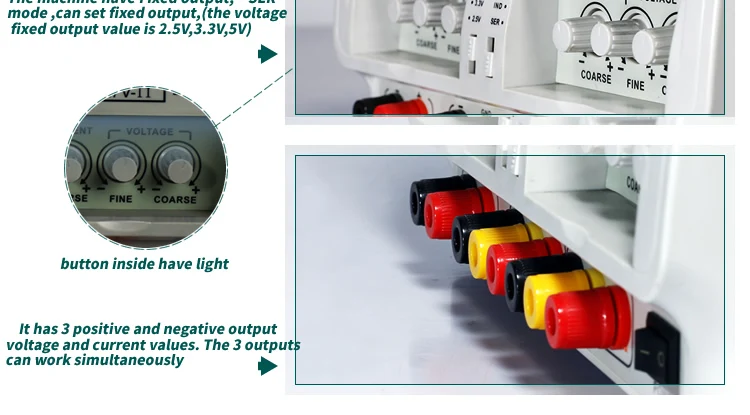

Channel III Output Characteristics

Rated Output Voltage

2.5V/3.3V/5V±0.1

Rated Output Current

3A

Power Effect

≤1mV

Load Effect

≤10mV

Ripple Noise

(5Hz-1MHz)

≤1mVrms







Tracking Characteristics
Characteristics Operating in Series

Power Effect

≤1mV

Load Effect

≤30mV

Ripple Noise

(5Hz-1MHz)

≤1mVrms



Characteristics Operating in Parallel

Power Effect

≤1mV

Load Effect

≤20mV

Ripple Noise

(5Hz-1MHz)

CV≤0.5mVrms (I≤6A)  CV≤1mVrms (I>6A)



Safety Requirements

HV Test

Leakage current ≤1mA (Test condition: input to ground of 1700VAC/2S)

Insulation Test

Insulation resistance ≥100MΩ (Test condition: input to ground of 500VDC/5S)





carton size:46*34.5*23.5CM;Supply Ability:1000 Piece/Pieces perMonth;Brand Name:YIHUA;Payment Terms:L/C,T/T,Western Union,Visa;Input Voltage:110v/220v
above is detail introduction of YIHUA 3005D-II dual channel output variable adjustable laboratory precision dc power supply, include price, model, picture and supplier of YIHUA 3005D-II dual channel output variable adjustable laboratory precision dc power supply.
