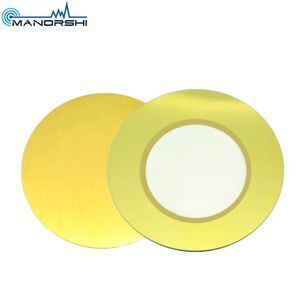

Dia.50mm Piezo Element Discs Piezoelectric Copper Ceramic Plate Buzzer
- 0.20 >=5000 pieces
| Place of Origin: | Jiangsu China; | Material: | Copper; |
| Payment Terms: | L/C,T/T,Paypal; | Supply Ability: | 10000 Piece/Pieces per Day; |
| Model Number: | piezo ceramic buzzer; | Port: | Shanghai; |
| Type: | Piezoelectric Ceramics; | Packaging Detail: | Export standard packing; |
| Brand Name: | MANORSHI; |
This item is a piezo discs which are essential parts for pickups of acoustic instruments. All the discs are made from selected copper, ensuring excellent conductivity and long-lasting use. It can be easily installed and suitable for mnay kinds of instrument like acoustic guitars, drums. Great for acoustic instrument pickups, stomp boxes, contact mics, etc.
NO. | Fr(KHz) | Zr( Ω) | C(nF) | Shapc | Dimension(mm) | Metal | |||
D | d | T | t | ||||||
FT-9.9H-7.5A1 | 7.5±1.0 | 500 | 10nF±30% | A | 9.9 | 7 | 0.12 | 0.05 | A11oy |
FT-10.5H-10.0A1 | 10.0±0.8 | 500 | 5.5nF±30% | A | 10.5 | 8 | 0.17 | 0.05 | A11oy |
FT-11H-9.0A1 | 9.0±0.5 | 500 | 11nF±30% | A | 11 | 8 | 0.17 | 0.10 | A11oy |
FT-12H-5.5AI | 5.5±0.5 | 500 | 13nF±30% | A | 12 | 9 | 0.12 | 0.05 | A11oy |
FT-13H-4.5A1 | 4.5±0.5 | 500 | 15nF±30% | A | 13 | 9 | 0.12 | 0.05 | A11oy |
FT-14H-4.3A1 | 4.3±0.5 | 300 | 70nF±30% | A | 14 | 12 | 0.12 | 0.05 | A11oy |
FT-15T-3.5AI | 3.5±0.5 | 300 | 35nF±30% | A | 15 | 12 | 0.12 | 0.05 | Brass |
FT-17.2H-3.5A1 | 3.5±0.5 | 300 | 32nF±30% | A | 17.2 | 13.4 | 0.18 | 0.10 | A11oy |
FT-18T-3.6A1 | 3.6±0.5 | 300 | 15nF±30% | A | 18 | 12 | 0.20 | 0.08 | Brass |
FT-19.9T-3.6A1 | 3.6±0.5 | 300 | 20nF+30% | A | 20 | 14 | 0.22 | 0.10 | Brass |
FT-20T-3.6A1 | 3.6±0.5 | 300 | 21nF±30% | A | 20 | 15 | 0.22 | 0.10 | Brass |
FT-21T-4.5A1 | 4.5±0.5 | 300 | 18nF+30% | A | 21 | 15 | 0.30 | 0.15 | Brass |
FT-22T-4.8A1 | 4.8±0.5 | 300 | 12nF±30% | A | 22 | 16.8 | 0.37 | 0.15 | Brass |
FT-27T-2.0A1 | 2.0±0.5 | 300 | 50nF±30% | A | 27 | 20 | 0.20 | 0.10 | Brass |
FT-30T-0.9A1 | 0.9±0.5 | 300 | 49nF±30% | A | 30 | 20 | 0.16 | 0.05 | Brass |
FT-31G-1.6A1 | 1.6±0.5 | 300 | 45nF±30% | A | 31 | 20 | 0.22 | 0.10 | S-T |
FT-32T-2.9A1 | 2.9±0.5 | 300 | 30nF±30% | A | 32 | 25 | 0.42 | 0.20 | Brass |
FT-35T-2.3A1 | 2.3±0.5 | 300 | 28nF±30% | A | 35 | 25 | 0.42 | 0.20 | Brass |
FT-41H-0.7A1 | 0.7±0.5 | 800 | 80nF±30% | A | 41 | 25 | 0.22 | 0.10 | A11oy |
FT-43T-0.8A1 | 0.8±0.5 | 800 | 75nF±30% | A | 43 | 25 | 0.22 | 0.10 | Brass |
FT-45T-0.7A1 | 0.7±0.5 | 300 | 80nF±30% | A | 45 | 25 | 0.22 | 0.10 | Brass |
FT-50T-2.7A1 | 2.7±0.5 | 300 | 35nF±30% | A | 50 | 25 | 0.42 | 0.20 | Brass |
