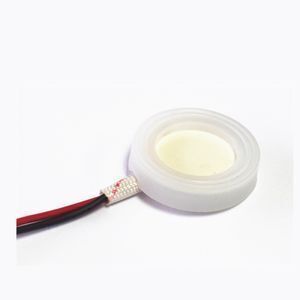

Microporous Piezo Electric Disc Ultrasonic Vibration Plate Atomizers Transducer

Supplier: Changzhou Manorshi Electronics Co., Ltd.
Region: Jiangsu, China
Contact: Ms Amy Shi
Price: $0.50 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Dielectric loss:	Max.0.5%;	Operating Temperature:	-20~70℃;
Material:	Other;	Type:	Piezoelectric Ceramics;
Brand Name:	MANORSHI;	Supply Ability:	1000000000 Piece/Pieces per Month for Ultrasonic Plate Atomizers Transducer;
Srorage Temperature:	-30~80℃;	RoHs:	yes;
Packaging Detail:	Standard export packing for Ultrasonic Plate Atomizers Transducer;	Piezoelectric constant(C/N):	Min.300;
Resonant Impedance:	Max.5Ω;	Port:	China Port for Ultrasonic Plate Atomizers Transducer;
Payment Terms:	L/C,T/T,Paypal;	Mechanical quality:	Min.800;
Place of Origin:	Jiangsu China;	Resonant Frequency:	1.70-30KHz±60KHz;
Model Number:	MNSE2517B-W;	Electromechanical Coupling Factor:	Min.55%;
Capacitance:	1600±15%PF;

Product Description

Microporous Piezo Electric Disc Ultrasonic Vibration Plate Atomizers Transducer

Specification

Resonant Frequency(Note 1)			1.70-30KHz±60KHz
Resonant Impedance(Note 1)			Max.5Ω
Capacitance (Note 2)			1600±15%PF
Electromechanical Coupling Factor(kt,kp)			Kp=Min.25%
Mechanical quality(Qm)			Min.800
Dielectric loss(tan)			Max.0.5%
Piezoelectric constant(C/N)			Min.300
Operating Temperature			-20~70℃
Srorage Temperature			-30~80℃
Buzzer Soldering process			Soldering Parameter
			Temp(℃)	Time(Sec.)	Times
Inclusive Lead		Reflow soldering	230±10	Above 170℃ time 40~70	2
		Wave soldering	245±5	3~6	1~2
		Manual soldering	330±10	1~2	1~2
Lead Free		Reflow soldering	245±15	Above 180℃ time 40~70	3
		Wave soldering	260±5	4~8	2~3
	*	Manual soldering	350±10	1~3	2~3

Note1:Measured by HP-4194A at 25℃ 80%R.H

Note2:Measured by LCR meter at 1kHZ,10Vms

Dimension

Packaging & Shipping

Packaging Details: Export standard packing

Our Services

1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in professional and fluent English.

3. Customized design is available.

Technical support

1.We have professional technical support team to support our customers

2.If you have any question for the technology of our products,please Email to us and we will reply to you immediately

Company Information

We specialize in manufacturing & exporting of Piezo Components such as Piezo Buzzers/Transducers, Piezo/Electronic Sirens, Electromagnetic Buzzers/Transducers,speakers,and Ultrasonic Sensors of the finest quality. We are presently catering to OEM of Automotive, Defence, White Goods, Telecom & Toy Industry.

We have strong ability in designing new products as per customer's specification by full sets of tooling equipment and advanced test equipment. We have been expanding our market in US, Europe, Middle East, and Southeast Asia. We have built impectable reputation and business relations with our customers all over the world.

"Forever sincerity, practice and business prosperity" is our service concept. We hope to cooperate with all overseas partners. Let's do it better.
