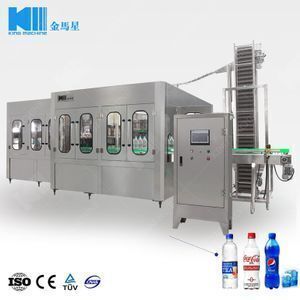

High Quality Carbonated Beverage Making Machine / CO2 Mixer

Supplier: Zhangjiagang King Machine Co., Ltd.
Region: Jiangsu, China
Contact: Ms Joyce Xu
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	wooden case for High Quality Carbonated Beverage Making Machine / CO2 Mixer;	Payment Terms:	L/C,T/T;
Power(W):	15kw;	Warranty:	1 year;
Port:	shanghai for Carbonated beverage mixer;	Applicable Industries:	Food & Beverage Factory;
Weight:	300kg;	Voltage:	380V;
Condition:	New;	Processing:	Co2 mixer;
Supply Ability:	30 Set/Sets per Month of Carbonated beverage mixer;	After-sales Service Provided:	Free spare parts;
PLC:	SIEMENSE;	Material:	Stainless steel;
Capacity:	1000Liter/hour-10000Liter/hour;	Brand Name:	King Machine;
Place of Origin:	Jiangsu China;	Processing:	Mixer;
Processing Types:	Carbonated Beverage;	After-sales Service Provided:	Engineers available to service machinery overseas;
Dimension(LWH):	according machine;	Certification:	CE SGS ISO9001;
Pump:	Southern pump;	Name:	Carbonated beverage making machine;

Product Description

Containers and specifications
Project Name: Full Automatic Complete Carbonated Drink 2000-36000bph Production Line				Carbonated Drink
Material	Shape	Filling volume	Filling level（mm）	Neck type
PET Bottle	Square or Round Bottle	100-2000ml	Distance from bottle neck According request	As request
Adjustable specifications of the bottle type	【Middle Mould Base】Bottle diameter ≤105mm Bottle Height≤335mm
	Customers need to buy additional change-over parts for the different bottles. If using square bottles, then bottle separating system will be added.
Container Label & Control Mode		Packaging system		Palletizing system
Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic		Packing system	Min, Spec.	Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm Palletizer Manual Palletizer
		Manual Film shrinker Wrap Around packer Robert Packing Machine	12 23 34 46 3*5
User Ambient Conditions		Temperature：10～40℃；Humidity：No dew
User Electrical Supply Specification		Voltage：380V±5%， 3phase； Frequency：50HZ±1%

Washing heads.

<1>Into bottle way is air conveyor direct connection with Bottle dial .
<2>All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
<3>304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
<4> 304/316 stainless steel washing pump make the machine more durable .

Filling heads.

<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing

Capping heads.

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5>Capping effect is stable and reliable ，Defective rate ≤0.2％ .

Air conveyor.

Air conveyor is fixed on the floor, with fan installed on the top.
Air filter is positioned at every entrance of air fan, to prevent dust blown into bottles. Bottles are held on the neck in the conveyor and transported into filling machine by blowing power.
All are made of stainless steel SUS 304 /316.
Rack made by high quality carbon steel welded .

Flat conveyor.

1/Energy saving. High efficient. Adapt to customer factory layout
2/Special lubrication system, keep products clean, health, safety
3/Extended service life
4/Electric eyes design keep whole line running safety and quickly
5/Overload protection mechanism to effectively ensure the safety of the machine

Auxiliary Equipment

Pre-process system.

1 High-shear emulsifying tank + Plate heat exchanger
2 Mixing tank
3 UHT sterilizer + homogenizer machine + Buffer tank
4 Hot water system + Hot water tank
5 CIP cleaning system

Water treatment system.

1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump

1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame

Blow Molding System.

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Drink Mixing Machine.

1/Wide range of uses - The system can handle a wide range of products such as carbonated drinks, juice drinks, etc.
2/Easy power adjustment - easy adjustment of mixing ratio without having to replace parts.
3/Structural Hygiene - All parts in contact with fluids are of high quality stainless steel, all tanks are equipped with CIP ball for easy cleaning.
4/Accurate mixing accuracy - product mixing accuracy G ≤ 2%

Warmer Bottle Machine.

1/Mainly for cooling and sterilization
2/The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
3/Nozzles are manufactured using U.S. technology and spray water evenly
4/Conveyor belt adopts Rexnor technology, flat surface with small wear
5/Smooth and reliable operation with low energy consumption

Automatic labeling machine.

1/Heat shrink sleeve labeling machine
2/OPP Hot melt labeling machine
3/PVC label stick labeling machine

It adopts double driving structure which is a new and advanced driving device for the thermal shrink sleeve machine, that is, four-wheel driving, self-centering and balanced pressure of four wheels. It can achieve the good effect of transmission of labels smoothly, stably and rapidly.

PE film packaging machine.

1/PE film shrink wrapping machine
2/Half-tray shrink wrapping machine
3/Carton box packaging machine

It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.

Certificate & Patent

About King Machine

<1> Standardized workshop of total 12,000 square meters.

<2>International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine .
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.

<3>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.

<4>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.

<5>The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.

<6>Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

King Service

1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

Packing & Delivery

Delivery.

Package Type : As usual, we adopt wooden case as package type. It’s suitable for long-distance transport. According to customers’ special demand, we could adopt sheet iron case and so on.

Transport : By sea. By train. By aircraft.
