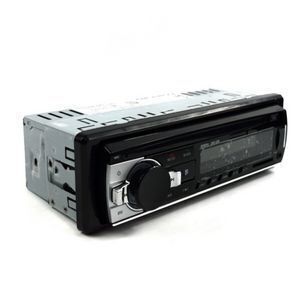

universal 1 Din short body car mp3 player with BLUETOOTH car multimedia entertainment USB

Product details
Single gross weight:0.65 KG;Product name:car mp3 player;
Selling Units:Single item;Model Number:JSD520;
Single package size:21X14.4X8.4 cm;Color:black;
Brand Name:jiayitong;Function:Bluetooth;
Style:Card;Audio Format Support:MP3, WMA, WAV, MP1, MP2;
Place of Origin:China;Packing:Color Box;
Battery Life:> 20 hours;Screen:Yes;
power IC:7388;

Features: Bluetooth Specification: V3.0 Supports advanced audio distribution profile Off time display

function Digital high-quality FM stereo radio Preset 18 stations

( frequency: 87.5-108 MHz ) Support USB / SD / MMC card reader

Support Audio: MP3 / WMA / FLAC / WAV etc. Support folder function

Support breakpoints and ID3 Play Support remote control Rotary

volume control MP3 randomized, 10 track up / down playback

Electronic control volume treble, bass, balance and fader

Multiple EQ scene selection: Jazz, rock, pop, classical, etc.

Mute and loud control L / R RCA audio output jacks 4-chan

nel high power output ( 4 loud speaker )

Support modes: BT / WAV / WMA / MP3 / FM The remote control battery (not included ): CR2025 3V   FM Radio Tuning Range: 87.5 - 108.0MHz Sensitivity: Less than 20db Stereo Separation: More than 25db

SNR: More than 60db   Some Playback Music

format support: MP3 / WMA Display

format: ID3 display

Distortion: Less than 0.3 percents   Power Supply 12V Machine: 11 - 16V Note:

This machine is 12V machine, not according to the 24V power supply   Audio

Operating temperature: -20 - 60 deg.C Quiescent current speaker

impedance: 4 ohm Frequency Response: 20 - 20000Hz   Type: Car MP3 Player Special Function :

FM Radio, Bluetooth, Hands-free calls, MP3 Player, USB flash disk Output Power :

 4 x 60W Voltage : 12V Music Source: SD card, 3.5mm stereo headphone jack,

Cellphone, Flash drive Built-in EQ: Rock, Classic, Pops, Jazz SNR (dB): ≥60db

Degree of Distortion (%): ≤0.3% FM Channel: 87.5 - 108.0MHz Bluetooth V

ersion: 2.0 Media Format : WAV, WMA, Mp3 APE Package weight: 0.614 kg

Package Size (L x W x H) : 22.00 x 10.50 x 8.00 cm  Package

Contents: 1 x JSD - 520 FM Radio , 1 x Remote Control(no battery), 1 x Wire, 1 x Installation Tool Set,

1 x User Manual   Important notice before installation: Please read carefully!!!

Yellow line (for memory wire) connected to the battery constant current positive,

the machine will have memory function.  Red line pick the key to the ACC line,

this line is also positive, control power switch. Black wire connected to

the negative power supply.  Blue line connected lift the antenna or subwoofer

REM control line, if not have do not connected, wrapped up with rubberized fabric.

The remaining eight wires(gray white green purple) are speaker line, a group

of colors corresponding to a pair of speaker lines (positive and negative).

Please pay attention to check whether the original car speaker cable

if contact iron (the original car speaker wire welding to the metal, or a speaker

only a line thow out, called contact iron). contact iron will cause

our high-power machine without sound, please test it with a multimeter before install,

if contact iron, please disconnect and then install.   The following conditions

may cause the machine to burned: 1. Can not use the original car

plug directly connected to our new machine, do not match will lead to the machine

burned, part of the machine can be shared please consult customer service.

2. If you buy a 12V voltage product do not install to 24V voltage models,

otherwise it will cause the machine burned. 3. When wiring,

speaker cable and power cord together, will cause a short circuit, lead the machine burned/unable to

boot or machine without sound.




FAQ
FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 1-3 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
