JQ Factory Hotsale MP3 Module Bluetooth MP3 Board 12V
- 2.50 >=2 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| style: | card | OEM/ODM: | Support foundry |
| place of origin; place of origin: | Guangdong, China | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| port: | Shenzhen or Guangzhou Port | usage: | Bluetooth audio PCBA |
| FM radio: | 87.5-108MHz | Supply capacity: | 10000 pieces per day |
| Packaging Details: | Carton packing: box size; 51x34x28CM 300pcs/carton 13.5kg/carton | Music format: | MP3/WAV/WMA/Ape/FLAC |
| Screen: | Yes | Voltage: | DC 5V/12V |
| Private model: | Yes | ID: | Custom Logo Printing |
| exhibit: | Digital display LED screen | model: | JQ-D106BT |
| type: | bluetooth recording board usb | Audio format support: | WMA, MP3, WAV, APE, FLAC |
| Function: | tape recorder, FM radio | brand: | Jiang Qing |

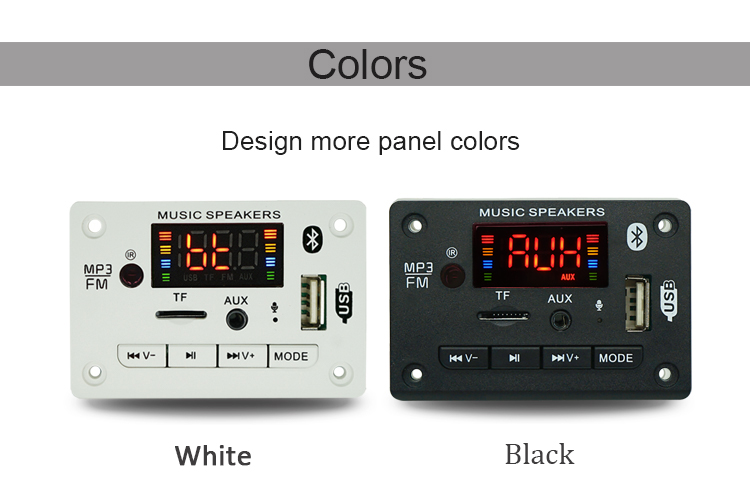

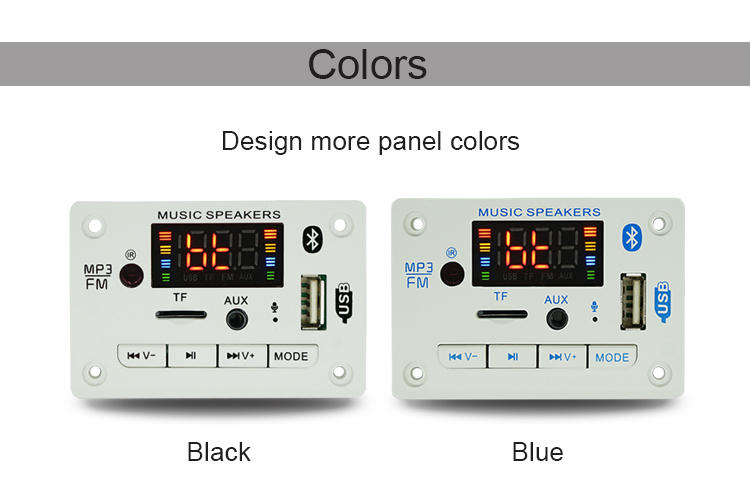

| Packaging Preview: | color: | black and white | |
| product name: | MP3 Bluetooth module | Battery Life: | > 20 hours |
JQ Factory Hot Sale MP3 Bluetooth Module MP3 Board 12V
Product Description

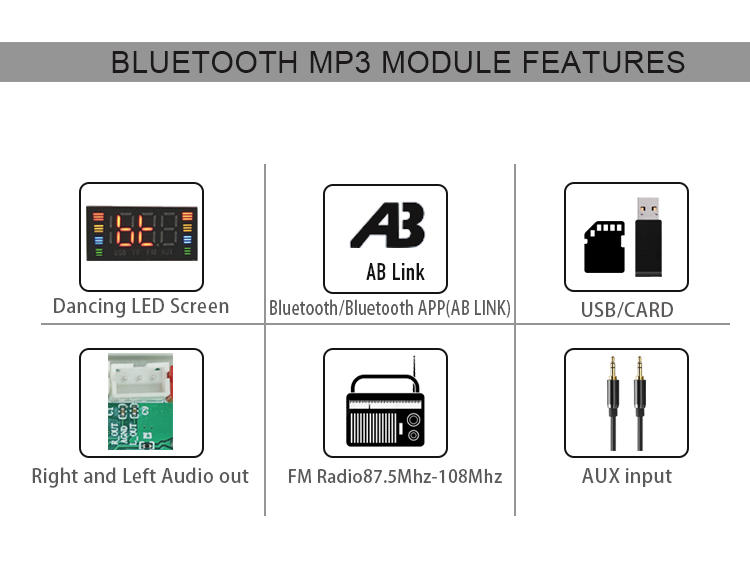

Features:
Support Bluetooth calling function, dual decoding MP3/WMA/WAV format music, read U disk, read SD and MMC card, radio FM, infrared
Remote control, power off memory, power supply 5V or 12V optional.
The main function:
1. Dual decoding, support MP3/WMA/WAV format music;
2. Support bluetooth music and bluetooth calling function;

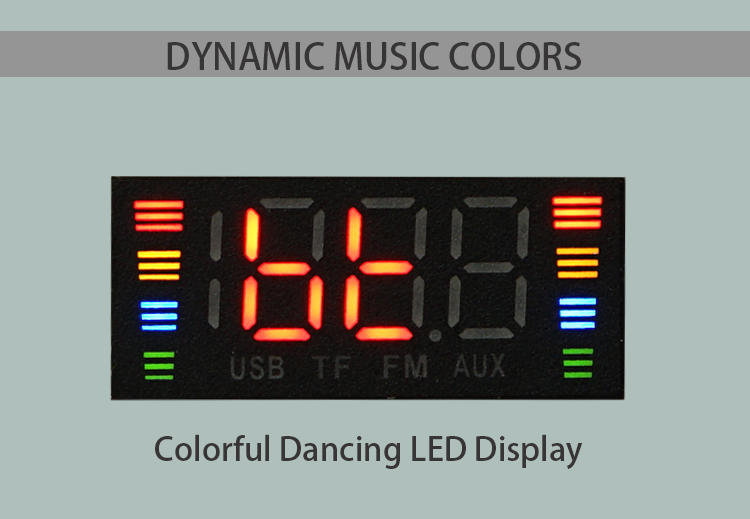

3. Digital tube display;
4. Support USB/MMC/SD/MMA card;
5. Power-off memory function 24C02;

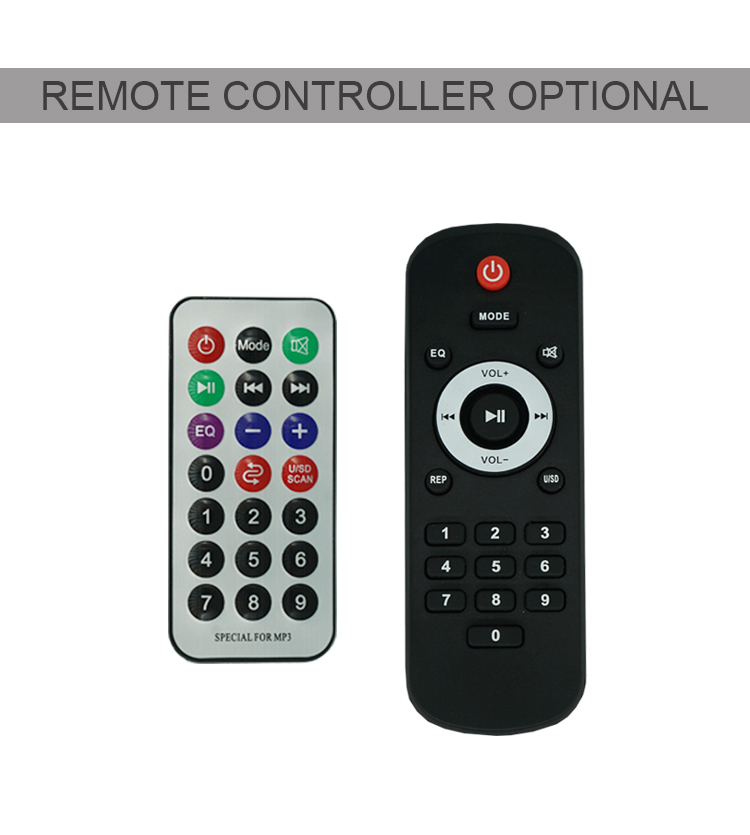

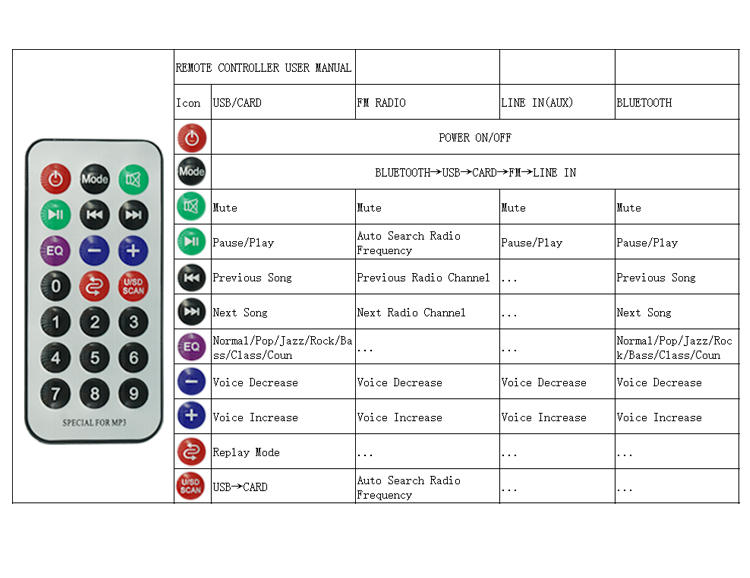

6. Support infrared remote control operation at a distance of 5-10 meters;
7. Support frequency modulation (87.5MHZ-108.0MHZ);
8. Button: VOL-/AUTO/VOL+/MODE;

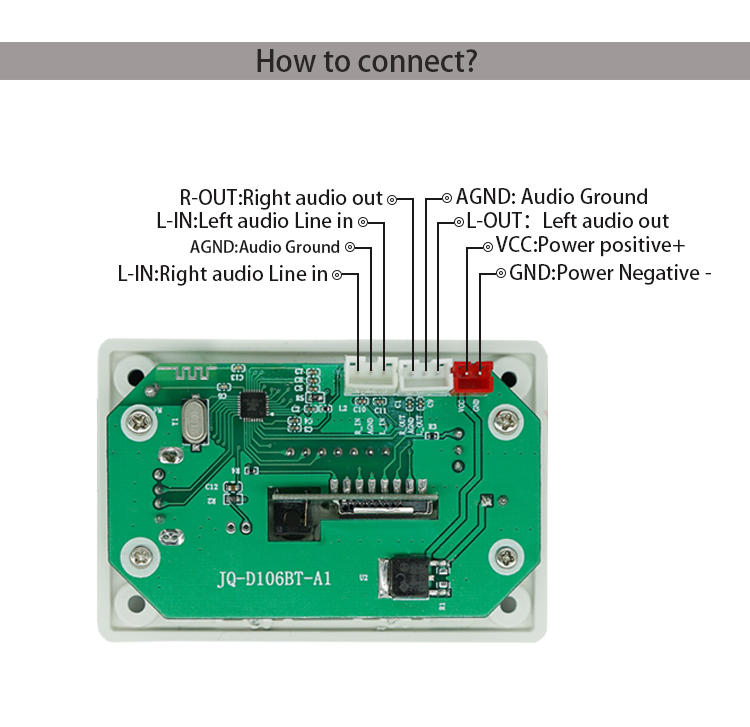

9. Support LINE-IN/LINE-OUT;
10. Support power supply automatic protection system (PCBA will not burn out when the positive and negative poles are reversed
Serving);
11. The maximum volume is 30 levels;
12. Support pause/single loop play/replay all tracks.

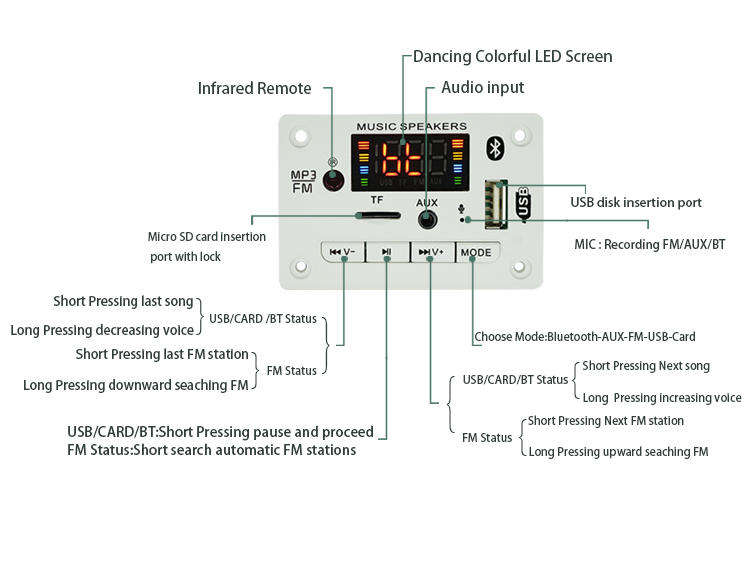

Key operation instructions:
1. Vol-key (last song/volume reduction): in MP3 state, vol-short press the last song, long press the volume
Decrease; in FM state, short press is to increase the number of one level; in Bluetooth function, short press is Bluetooth one, long press
Press to decrease volume;
2. Auto button (play/pause): in MP3 state, auto play/pause for a short time; in FM state, short press to play/pause, long press
is an automatic receiving station; in the Bluetooth function, short press is play/pause;
3. Vol+ key (next song/volume up): in MP3 state, short press the volume of a song, long press the volume up; in FM
Status, short press is to lower a stage number; under Bluetooth function, short press Bluetooth to the next song, long press the volume
reduce;
4. MODE key: Switch between USB/SD/FM/AUX/BT functions in turn.
Support Bluetooth calling function, dual decoding MP3/WMA/WAV format music, read U disk, read SD and MMC card, radio FM, infrared
Remote control, power off memory, power supply 5V or 12V optional.
The main function:
1. Dual decoding, support MP3/WMA/WAV format music;
2. Support bluetooth music and bluetooth calling function;
3. Digital tube display;
4. Support USB/MMC/SD/MMA card;
5. Power-off memory function 24C02;
6. Support infrared remote control operation at a distance of 5-10 meters;
7. Support frequency modulation (87.5MHZ-108.0MHZ);
8. Button: VOL-/AUTO/VOL+/MODE;
9. Support LINE-IN/LINE-OUT;
10. Support power supply automatic protection system (PCBA will not burn out when the positive and negative poles are reversed
Serving);
11. The maximum volume is 30 levels;
12. Support pause/single loop play/replay all tracks.
Key operation instructions:
1. Vol-key (last song/volume reduction): in MP3 state, vol-short press the last song, long press the volume
Decrease; in FM state, short press is to increase the number of one level; in Bluetooth function, short press is Bluetooth one, long press
Press to decrease volume;
2. Auto button (play/pause): in MP3 state, auto play/pause for a short time; in FM state, short press to play/pause, long press
is an automatic receiving station; in the Bluetooth function, short press is play/pause;
3. Vol+ key (next song/volume up): in MP3 state, short press the volume of a song, long press the volume up; in FM
Status, short press is to lower a stage number; under Bluetooth function, short press Bluetooth to the next song, long press the volume
reduce;
4. MODE key: Switch between USB/SD/FM/AUX/BT functions in turn.

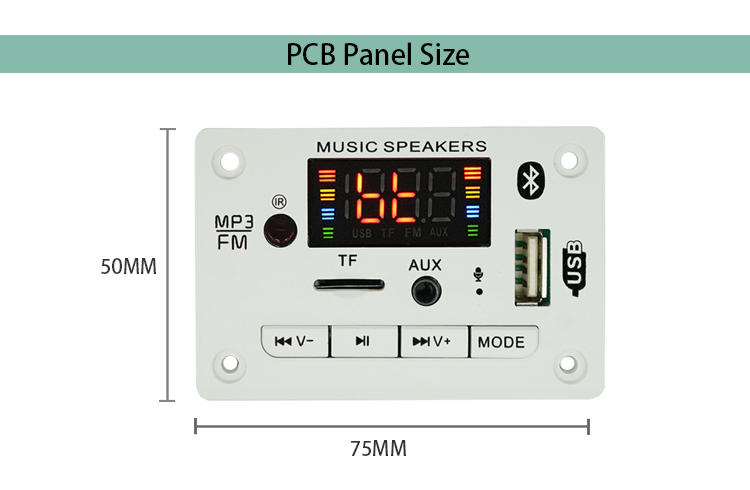

Specification
product name | MP3 player bluetooth module |
FM radio | 87.5MHz-108MHz |
exhibit | Dancing Digital LED Display |

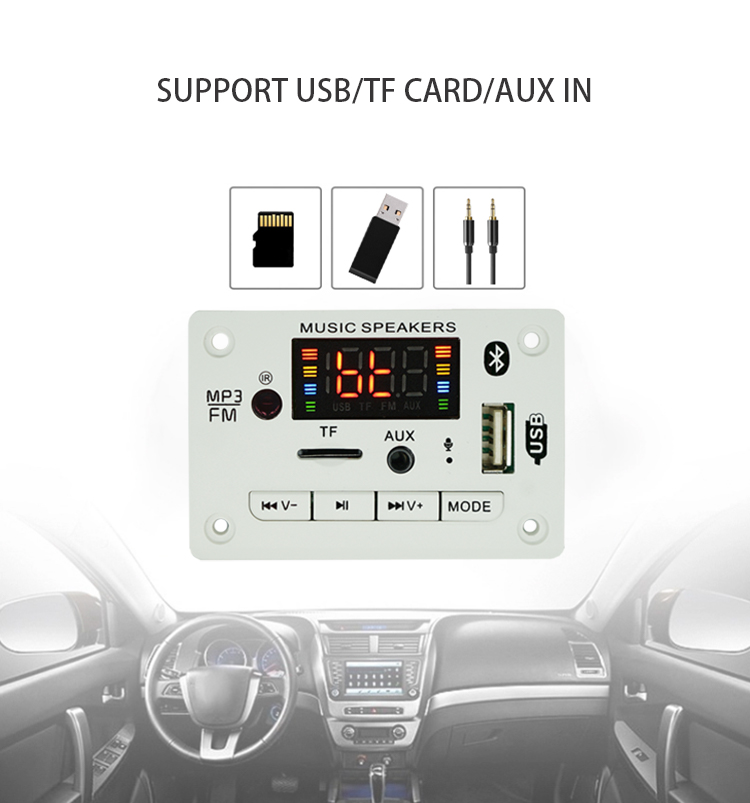

Support function | Bluetooth/FM radio/TF card/USB/AUX/remote control |

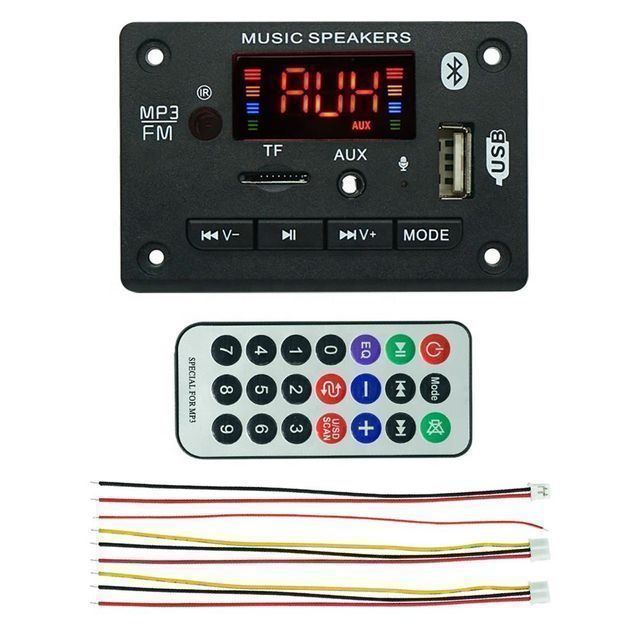

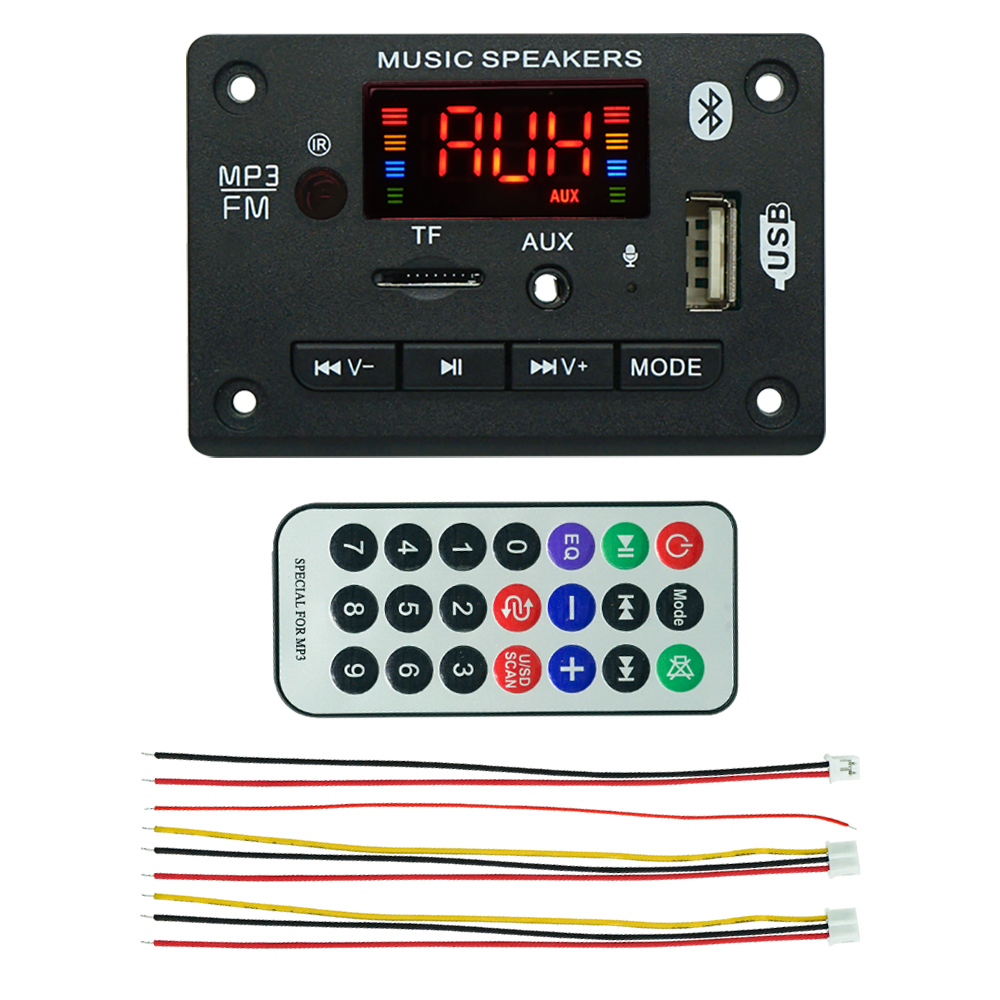

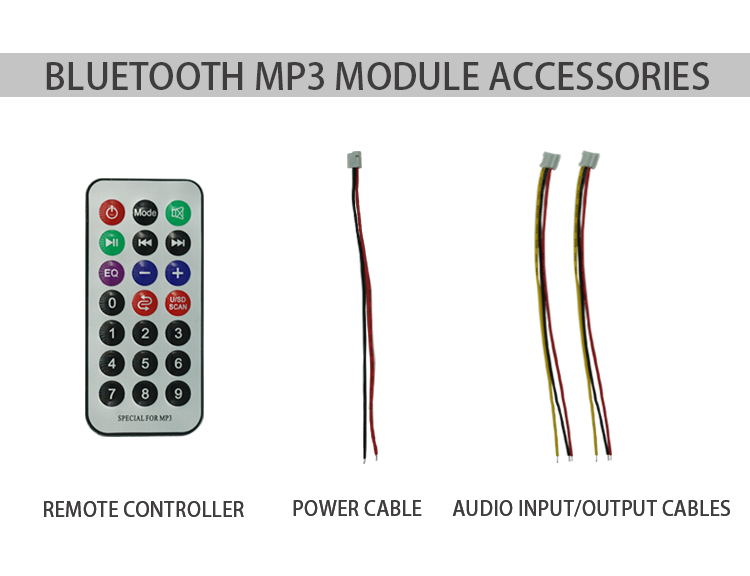

Accessories | Cables and Remotes |
Voltage input | DC 5V/12V |
Serve | OEM/ODM |
