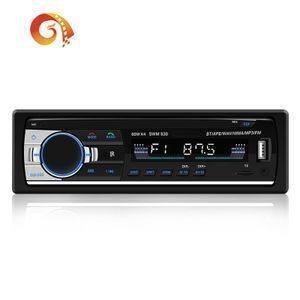

Fm Sd Usb Stereo Audio Radio Video Navigation Car Dvd Vcd Cd Mp5 Mp4 Mp3 Player With Bluetooth

Product details
Single package size:21X14.4X8.4 cm;Style:card;
Brand Name:jiayitong;Battery Life:> 20 hours;
Selling Units:Single item;Function:bluetooth;
Single gross weight:0.65 KG;Audio Format Support:MP3, WMA, WAV, MP1, MP2;
Model Number:JSD520;Screen:YES;
Color:black;Packing:Color Box;
Product name:car mp3 player;Place of Origin:Guangdong China;
power IC:7388;

Fm Sd Usb Stereo Audio Radio Video Navigation Car Dvd Vcd Cd Mp5 Mp4 Mp3 Player With Bluetooth

Features: Bluetooth Specification: V3.0 Supports advanced audio distribution profile Off time display

function Digital high-quality FM stereo radio Preset 18 stations

( frequency: 87.5-108 MHz ) Support USB / SD / MMC card reader

Support Audio: MP3 / WMA / FLAC / WAV etc. Support folder function

Support breakpoints and ID3 Play Support remote control Rotary

volume control MP3 randomized, 10 track up / down playback

Electronic control volume treble, bass, balance and fader

Multiple EQ scene selection: Jazz, rock, pop, classical, etc.

Mute and loud control L / R RCA audio output jacks 4-chan

nel high power output ( 4 loud speaker )

Support modes: BT / WAV / WMA / MP3 / FM The remote control battery (not included ): CR2025 3V   FM Radio Tuning Range: 87.5 - 108.0MHz Sensitivity: Less than 20db Stereo Separation: More than 25db

SNR: More than 60db   Some Playback Music

format support: MP3 / WMA Display

format: ID3 display

Distortion: Less than 0.3 percents   Power Supply 12V Machine: 11 - 16V Note:

This machine is 12V machine, not according to the 24V power supply   Audio

Operating temperature: -20 - 60 deg.C Quiescent current speaker

impedance: 4 ohm Frequency Response: 20 - 20000Hz   Type: Car MP3 Player Special Function :

FM Radio, Bluetooth, Hands-free calls, MP3 Player, USB flash disk Output Power :

 4 x 60W Voltage : 12V Music Source: SD card, 3.5mm stereo headphone jack,

Cellphone, Flash drive Built-in EQ: Rock, Classic, Pops, Jazz SNR (dB): ≥60db

Degree of Distortion (%): ≤0.3% FM Channel: 87.5 - 108.0MHz Bluetooth V

ersion: 2.0 Media Format : WAV, WMA, Mp3 APE Package weight: 0.614 kg

Package Size (L x W x H) : 22.00 x 10.50 x 8.00 cm  Package

Contents: 1 x JSD - 520 FM Radio , 1 x Remote Control(no battery), 1 x Wire, 1 x Installation Tool Set,

1 x User Manual   Important notice before installation: Please read carefully!!!

Yellow line (for memory wire) connected to the battery constant current positive,

the machine will have memory function.  Red line pick the key to the ACC line,

this line is also positive, control power switch. Black wire connected to

the negative power supply.  Blue line connected lift the antenna or subwoofer

REM control line, if not have do not connected, wrapped up with rubberized fabric.

The remaining eight wires(gray white green purple) are speaker line, a group

of colors corresponding to a pair of speaker lines (positive and negative).

Please pay attention to check whether the original car speaker cable

if contact iron (the original car speaker wire welding to the metal, or a speaker

only a line thow out, called contact iron). contact iron will cause

our high-power machine without sound, please test it with a multimeter before install,

if contact iron, please disconnect and then install.   The following conditions

may cause the machine to burned: 1. Can not use the original car

plug directly connected to our new machine, do not match will lead to the machine

burned, part of the machine can be shared please consult customer service.

2. If you buy a 12V voltage product do not install to 24V voltage models,

otherwise it will cause the machine burned. 3. When wiring,

speaker cable and power cord together, will cause a short circuit, lead the machine burned/unable to

boot or machine without sound.
