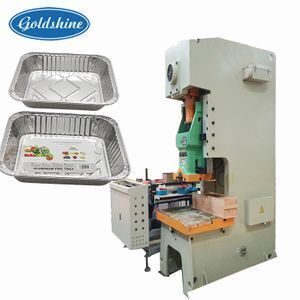

Take away food aluminum foil container making machine

Supplier: Zhangjiagang Goldshine Aluminium Foil Co., Ltd.
Region: Jiangsu, China
Contact: Mr Sam Chow
Price: $10000.00 /set
Min. Order: 1 set

Click here to contact

Product details

After-sales Service Provided:	Engineers available to service machinery overseas;	Supply Ability:	5 Set/Sets per Month for Take away food aluminum foil container making machine;
Certification:	CE,ISO,BV;	Driven Type:	Electric and pneumatic;
Function:	Pressing;	Color:	As customer required;
Place of Origin:	Jiangsu China (Mainland);	Packaging Detail:	Wooden box for Take away food aluminum foil container making machine;
Nominal PRESSURE:	630KN;	Delivery Detail:	Shipped in 30 days after payment;
Power(W):	5.5~7.5KW;	Type:	Multi-Function Packaging Machine;
Maximum Die Set Height:	310~450mm;	Condition:	New;
Plastic Type:	aluminum foil;	Product Type:	Fast Food Box;
Product Name:	Take away food aluminum foil container making machine;	Model Number:	GS-JF21-63T;
Application:	Food;	Weight:	5500~6300kg;
Port:	shanghai;	Voltage:	220V,360V;
Packaging Type:	wooden box;	Automatic:	Yes;
Die Set Height Adjustment:	70mm;	Brand Name:	Goldshine;
Dimension(LWH):	161012002500mm;	Type:	punching machine;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;

Product Description

Performance Characteristic of Take away food aluminum foil container making machine

1. This machine adopts Siemens CPU216 programmable logic container(PLC) as the controlling system. It is reliabale. The feeding length, producing speed and other parameter are easily set. It is integration of Gas & Electrical, centralized control, automated production.
2. Feeding, punching, scrap collecting is running automatically.
3.The accurate press adopts steel plates joining body, variable frequency speed regulation, dry type friction clutch to clutch-on-off,rigid over-load protector to protect the press. In short, this is a high accuracy and reliability press.

Main specifications and technical parameters

1.Feeding machine

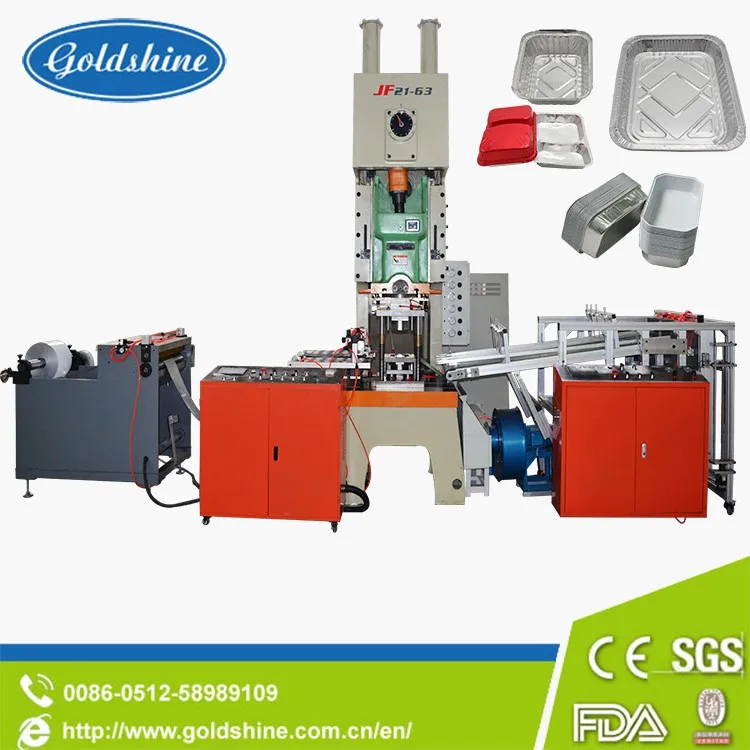

2.High Accuracy Press

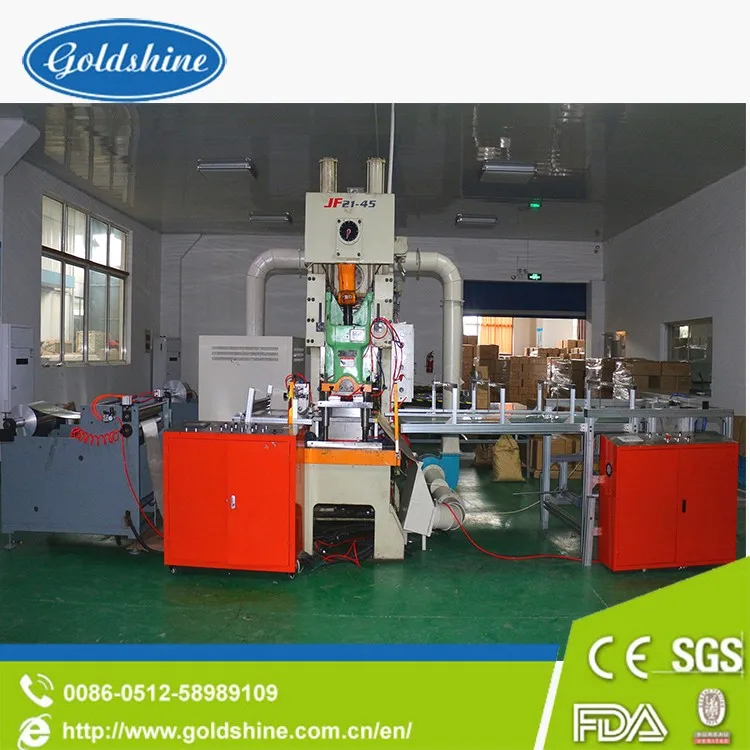

Model	JF21-45	JF21-63	JF21-80	JF21-110
Nominal Pressure (KN)	450	630	800	1100
Slide Block Strok (mm)	100-260mm	120-260mm	140-260mm	150-260mm
Slide Stroke Per Minutes(/min)	70-50	70-50	60-45	50-40
Maximum Die Set Height(mm)	270-400	310-450	325-450	345-500
Die Set Height Adjustment(mm)	60mm(2.36)	70mm(2.76)	80mm(3.15)	90mm(3.54")
Slide Bottom Size (mm)	410*340mm	480*400mm	560*460mm	630*520mm
Stemhole Size(mm)	φ60*60mm	φ60*65mm	φ60*75mm	φ60*85mm
Bolster Surface Size (mm)	810440/990750mm	870520/1000800	1000600/1200800	1100680/1300800mm
Total Power (KW)	5.5	5.5-7.5	7.5-11	11-15
Weight(kg)	3800-4500	5500-6300	8000-9000	11000-12000
Overall Dimension Before Changed(mm）	144010802300mm	161012002500mm	200013002900mm	203015003130mm
Overall Dimension After Changed(mm）	155011502500mm	180013002700mm	220014503100mm	230016003300mm

3.Mould

4.Scrap Collrcting Device

Detailed Images

Machine Parts

Name: Automatic feeding device

Brand: Goldshine

It can realize automatic oiling,automatic feeding ,automatic tracking features,automatically fedding 20-999mm in length.

Main Parts

Name: press parts
Flatten aluminum foil to make aluminum foil better fit the mold.

Machine Parts

Name: Control system
Brand: PLC
Duplex safety valve are used to achieve emergent stop,inching,sing action and continuous operation. Electric adjustment of mould load height is adoped,enabling eady operation.

Main Parts

Name: Mould
The mould adopts aeroelasticily resilience device,and our advantages of the mould have kong shelf life,stable quality,high precision and resaonable desigh.

Packing & Delivery

Film packaging

Wooden box packaging

Our Company

Goldshine is China's outstanding OEM and ODM.

Established in 2005.

Welcome to visit our factory.

Zhangjiagang goldshine aluminum foil co.,ltd. is a leading company engaged in the research, development, production and sale of aluminum foil and aluminum foil relevant products, established in 2005,located in Zhangjiagang City.

The company has a plant area of over 20000 square meters, the superior geographical environment and convenient traffic conditions make goldshine aluminum foil quickly into the international market.

The company's products are exported to U.S., EU, Japan, Australia and more than 70 countries and regions, enjoy a good reputation in the international market with best service and high quality products.

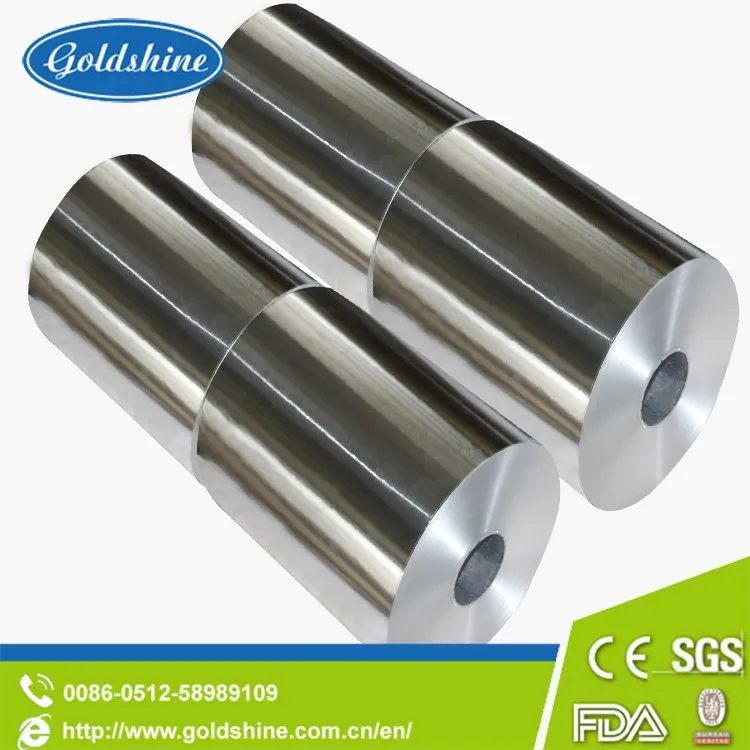

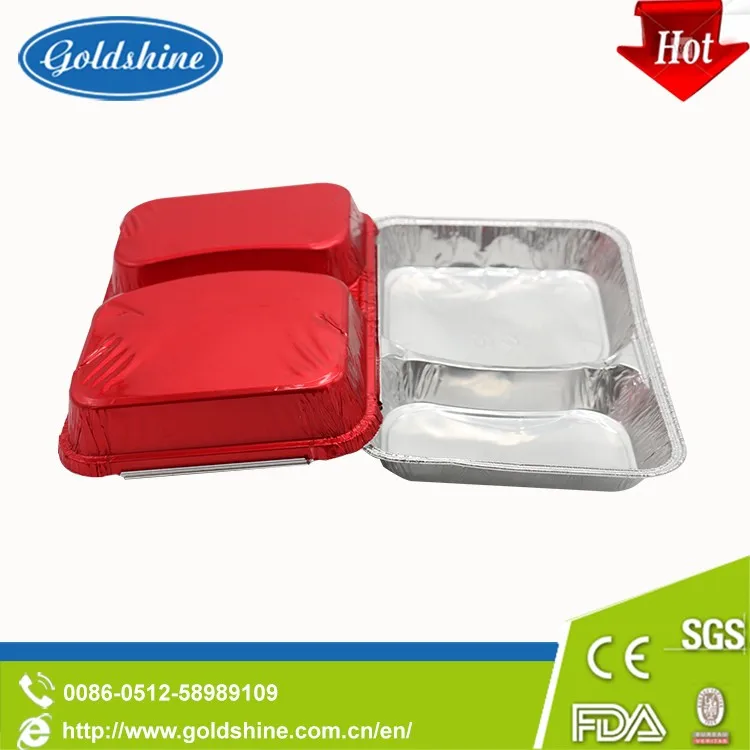

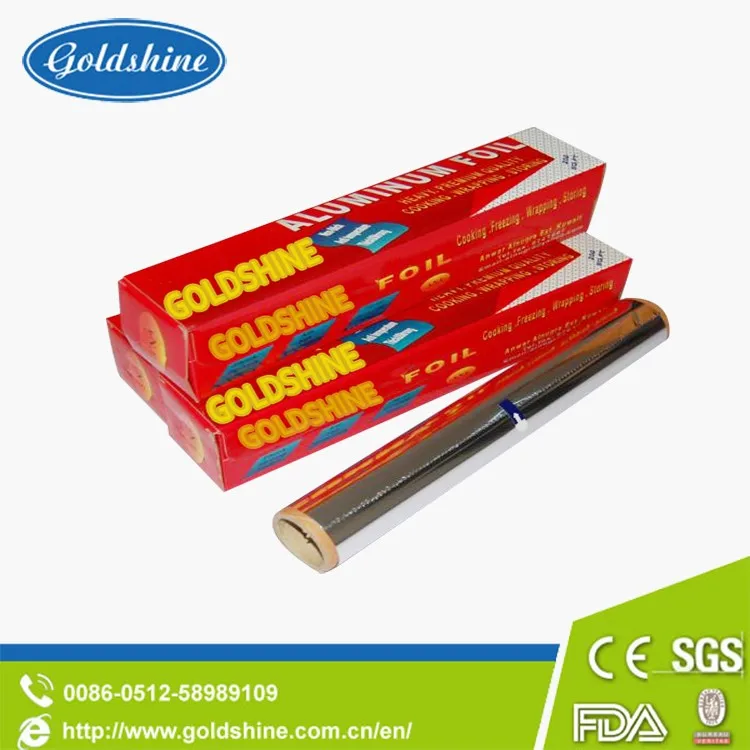

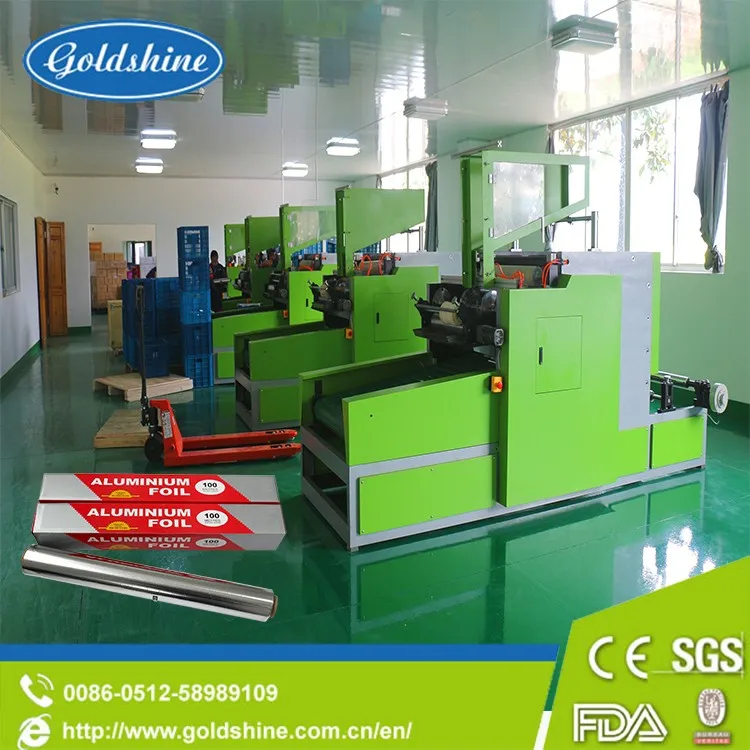

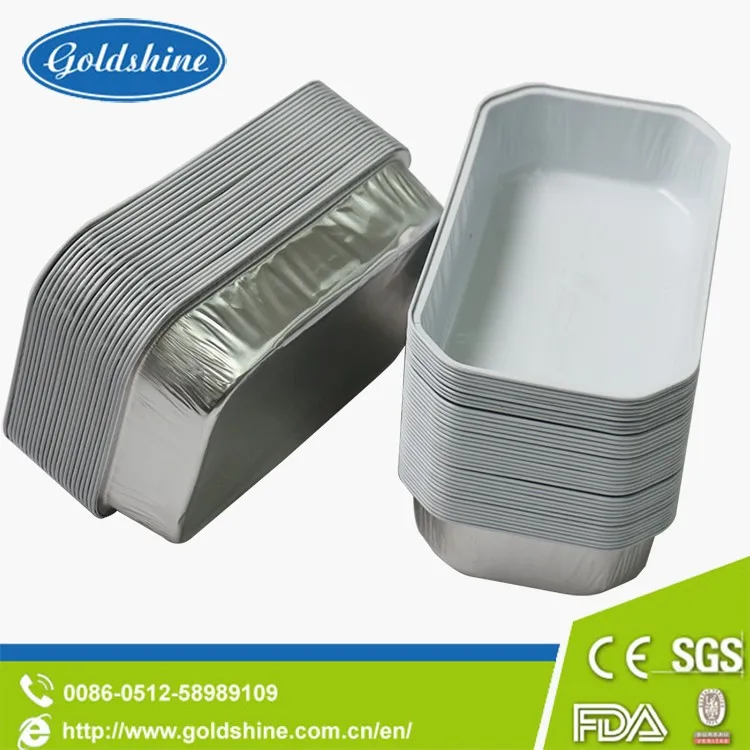

The main products: aluminum foil jumbo roll, aluminum foil, aluminum foil container, aluminum foil container machine,aluminum foil roll machine, POP-UP foil sheets and so on.
