Hand Held Metal Analyzer

Click here to contact

Product details

Display system:	4.3" touch screen;	Focal Length:	0-5cm;
Supply Ability:	1000 Unit/Units per Month Metal Analyzer Portable;	Port:	Shanghai, Guangzhou, Shenzhen, Ningbo;
Product name:	Metal Analyzer Portable;	Wavelength Range:	0.001~10nm;
Power supply:	Battery;	Working time:	3-4 hours/battery;
Warranty:	1 year;	Brand Name:	LONN;
Packaging Detail:	Packing for XRF Metal Analyzer Gun Portable Metal Analyzer Spetrometer Inner: plastic case Outer: carton box or according to customers' requirements;	Work temperature:	-20~50℃;
Weight:	1.6KG;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;
Detector:	BOOST Si-pin Detector, SDD Detector;	Response time:	15-35s;
Model Number:	TrueX 800, TrueX 860;	Data processing:	32GB memory;
Size:	25479280mm;	Type:	X-ray;
Place of Origin:	Shaanxi China;

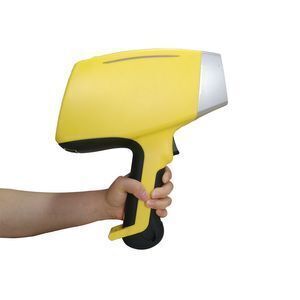

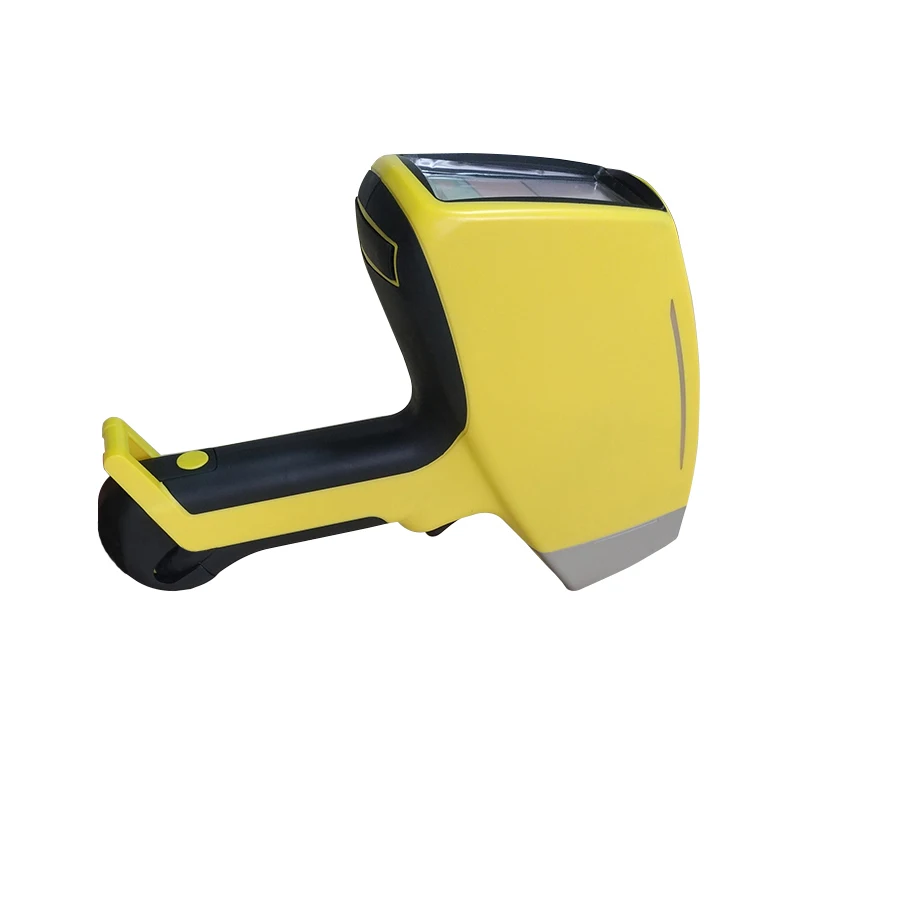

XRF Metal Analyzer Gun Portable Metal Analyzer Spetrometer

Product Description

Performance Features:

1. Small, light and easy to carry.

2. High-speed processing chip, advanced algorithm and high-responsive software.

3. High-performance X-ray Tube, Ultra-high Resolution Detector combined with Digital Multi-channel Processing Technology.

4. Industrial resistive touch screen, superior to capacitor screen in back-light and clearer against sunlight in the field.

5. Automatic switch to standby mode, which saves power and extends working time.

6. Users can customize the reports by adding their company logos, addresses, spectrum and others (such as product description and batch number).

7. TrueX can automatically sense whether there is a sample at the measurement window. This is also a safety and protection feature.

8. TrueX can be configured and maintained in a remote way via Internet.

9. TrueX Ultra-short optical™ path design can significantly improve light element excitation effects.

10. TrueX has a built-in environmental sensing system covering conditions such as temperature, dust humidity and others.

Parameter

TrueX 800 (STD)	Can analyze Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, Re, Pb, and Bi,totaling 25 elements
TrueX 860 (DX)	Can analyze Mg, Al, Si, P, S, Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Se, Zr, Nb, Mo, Rh, Pd, Ag, Cd, Sn, Sb, Hf, Ta, Re, Pb, and Bi,totaling 30 elements
Weight	1.6Kg (With battery)
Detector	Boost Si-PIN detector for TrueX 800
Detector	SDD detector for TrueX 860
Data processing	32GB memory; USB, bluetooth, WIFI, or linked to the Internet; Data can be exported via EXCEL or PDF
Power supply system	Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of battery; A single battery can last 8 hours
