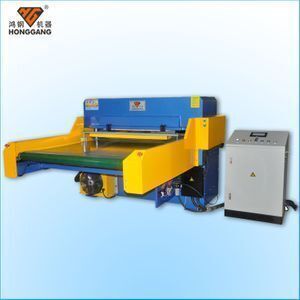

automatic feeding foam/leather/fabric roll die cutting machine

Supplier: Guangdong Honggang Intelligent Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Mandy Chen
Price: $23100.00 /set
Min. Order: 1 set

Click here to contact

Product details

Automatic Grade:	Automatic;	Cylinders:	Double;
After-sales Service Provided:	Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Feeding side:	double, or as request;
Dimension(LWH):	210022001700MM;	Place of Origin:	China;
Stroke:	50-240mm;	Applicable Industries:	foam/leather/fabric;
Voltage:	220V/380V/415V;	Condition:	New;
Certification:	CE;	Port:	guangzhou,shenzhen;
Supply Ability:	30 Set/Sets per Month roll cutting machine;	Cutting area:	810X1600mm;
TYPE:	roll cutting machine;	Power(W):	7.5KW;
Application:	foam,roller foam,leather;	Warranty:	1 year;
Weight:	5000KG;	Roller:	rolling to roll automatic feeding;
Brand Name:	HONGGANG;	Packaging Detail:	roll cutting machine 1,Standard export carton with plastic film. 2,as customer's request...;
Cutting force:	100TONS;	Payment Terms:	L/C,T/T,Western Union;

automatic feeding foam/leather/fabric roll die cutting machine

What Features of our roll cutting machine?

100ton automatic feeding roll cutting machine is a equitment die cut roller materials with superior productivity and labor saving. It is converted from usual cutting machine by using the

rotary or roller which enhance the auto feeding system and cutting speed. In HG, the roller can meet your request or just design for you.

This roller Feeding cutting machine is widely applied in automotive interior and foam manufacturing,For example, car cushion, seat cover, floor MATS, car roof, car sticker, epe foam and so on.

What Specifications of our roll cutting machine?

Features:

1.Automatic roller-in-feeding,moveable clamp out-feeding,allows all cutting process without any labor.

2.Roller device with auto rolling function to roll materials easily;rollers easy to change.

3.Controlled by PLC(Programmable Logic Controller),with touching screen,to adjust working pressure,stroke,feeding

speed easier,faster and more precise.

4.Auto-balance structure of double-cylinder,four-column and self-balance connecting rod,makes sure equal pressure in any working area.

Models for choose:

Model. No	HG-B60T	HG-B80T	HG-B100T	HG-B120T	HG-B150T
Cutting force	60 tons	80 tons	100 tons	120 tons	150 tons
Dimension (LWH)	210022001700 mm	210022001700 mm	210022001700 mm	210022001700 mm	210022001700 mm
Stroke	50-240mm	50-240mm	50-240mm	50-240mm	50-240mm
Area of Work Table	810mm*1400mm	810mm*1400mm	810mm*1400mm	810mm*1400mm	810mm*1400mm
Main Motor Power	5.5KW	7.5KW	7.5KW	11KW	11KW
Weight	4500KG	5500KG	5600KG	6000KG	6300KG
