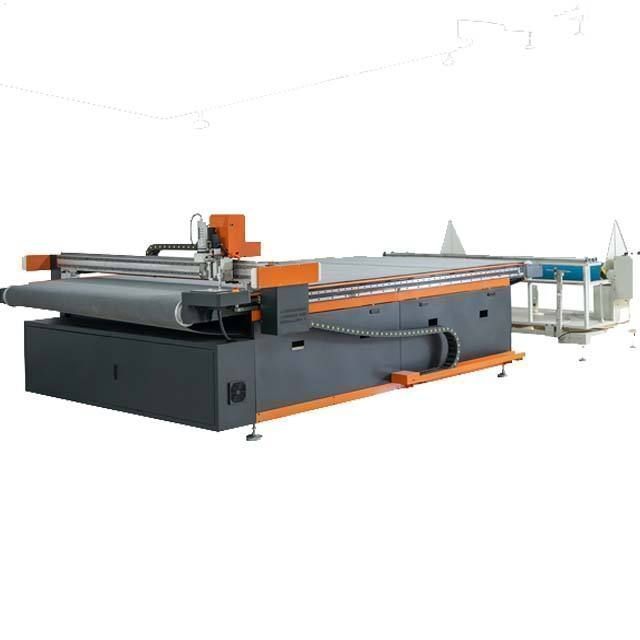

FW1625 CNC corrugated vibrating knife cutting machine fabric leather cloth car seat pu cutting machine price

Supplier: Jinan Finework CNC Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms FW CNC
Price: $9999.00 / 1 - 2 sets
$8000.00 / 3 - 4 sets
$7000.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

Packaging Details:	1. Whole film packaging machine 2. Anti-collision edging 3. Wooden box packaging	feature:	automatic
Video external inspection:	if	Cutting thickness:	≤22mm
Marketing Type:	Popular products	Showroom location:	Egypt, Italy
Voltage:	220V/380V	capacity:	2GB
strength:	11kW	Warranty:	5+ years
color:	customer request	Mechanical test report:	if
software:	Trosen	Supply capacity:	200 sets per month
application:	Cut fabric, leather, PU	Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Material Capability:	Cut fabric, leather, PU	Dimensions (LWH):	345022001250mm
place of origin; place of origin:	Shandong	Production capacity:	100%
Working size:	1600*2500mm	Key words:	CNC Vibrating Knife Fabric Textile Cutting Machinery China
Core Components Warranty:	1 year	Certification:	Chief Executive
Packaging Preview:		Applicable industries:	Clothing stores, building materials stores, manufacturing plants, machinery repair shops, household, retail, construction engineering, advertising companies
weight:	1200kg	Name:	PVC/PU Leather Fabric Automatic Cutter
Maximum cutting speed:	200-800mm/s	port:	Qingdao
Health status:	new	payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
brand:	Seiko CNC	Auto grade:	automatic

Product Description

Machine Features

Advantage 1.

Imported Taiwan square linear guide and Japanese servo motor to ensure high precision, fast cutting speed and stable working performance.

Advantage 2.

The whole machine is welded with thickened square seamless steel structure and treated at high temperature.
Ensure high precision, no deformation, and long service life

Advantage 2.

The whole aluminum platform is a honeycomb structure, which is not easy to deform and absorb sound.

Advantage 3.

Digital cutters are designed to be easy to install, set up and operate.

Advantage 4.

Equipped with infrared sensor and emergency stop device to ensure safety.

Advantage 5.

Knife cutting is not laser cutting, no air pollution, no burning edge, cutting speed is 5-8 times faster than laser cutting machine

Specification

Parameters/Models	FW1625
working desk size	1600*2500mm
Rated voltage	380V three-phase, 220V three-phase, 220V one-phase

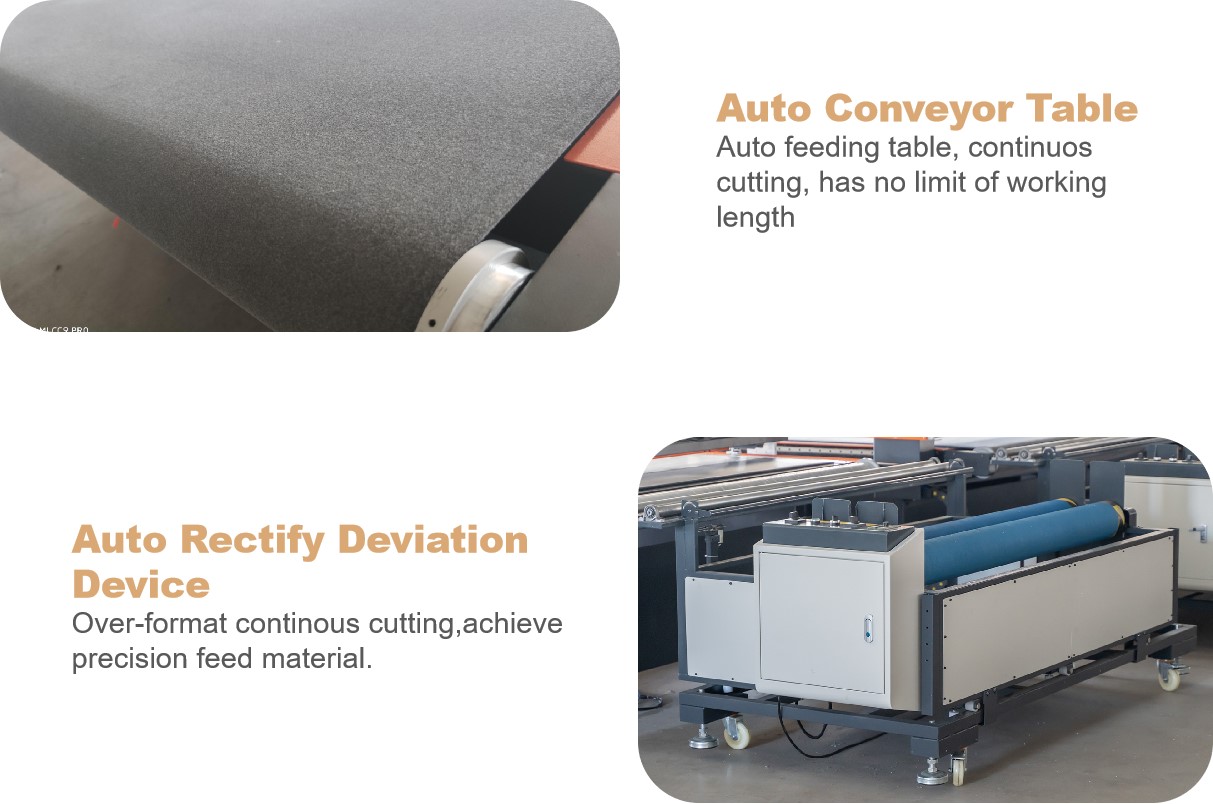

table	Vacuum table with automatic conveying table

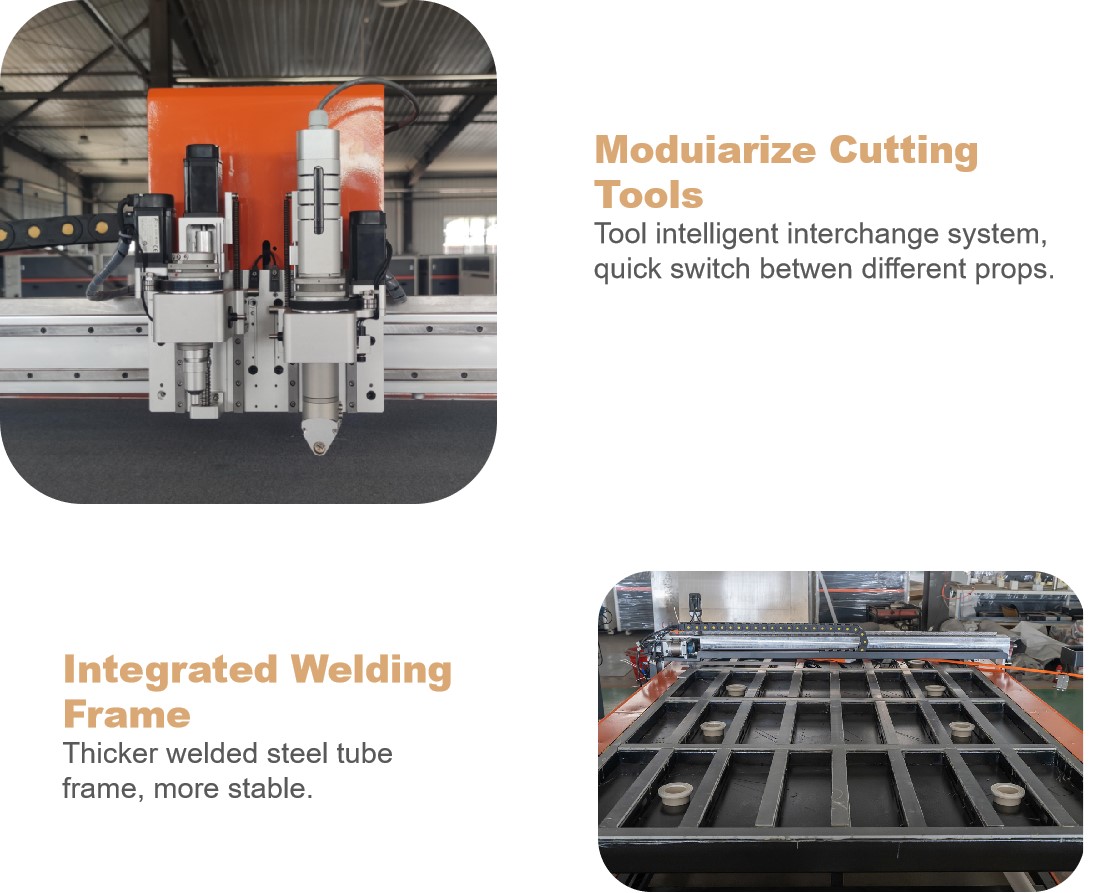

Multifunctional cutting head	Replaceable swing knife
Safety	High sensitivity infrared sensor (optional)
Moving speed	maximum. 1200mm/sec
cutting speed	maximum. 800mm/s (please set the speed according to the material)

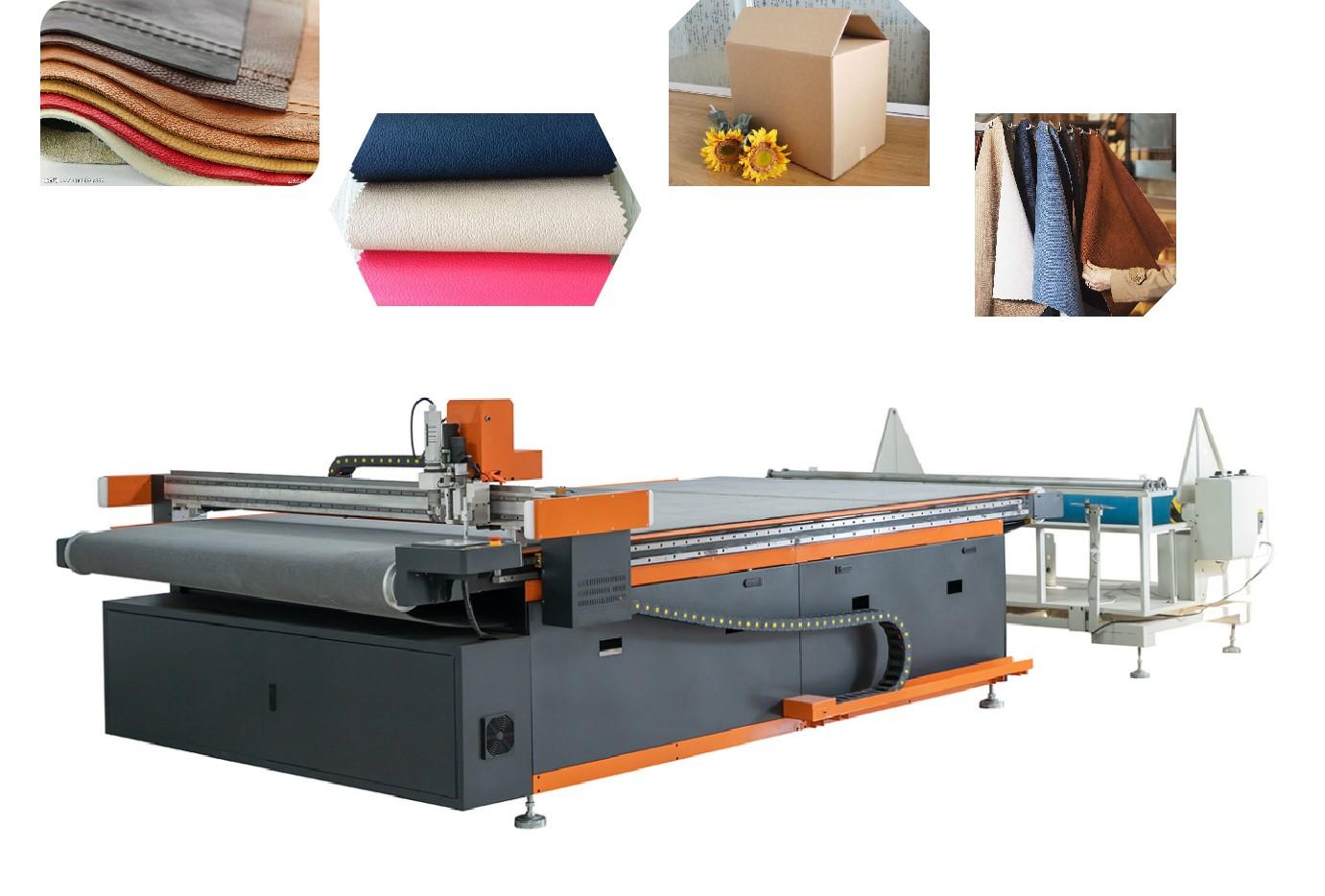

Applicable materials	Corrugated paper, PVC expansion sheet, KT board, foam board, gray cardboard, cardboard, car stickers, stickers, etc.
cutting depth	30mm max (depending on material)
Material fixing method	High-power vacuum adsorption intelligent partition
Reset positioning accuracy	Maximum 0.01mm
Mechanical accuracy	Maximum 0.02mm

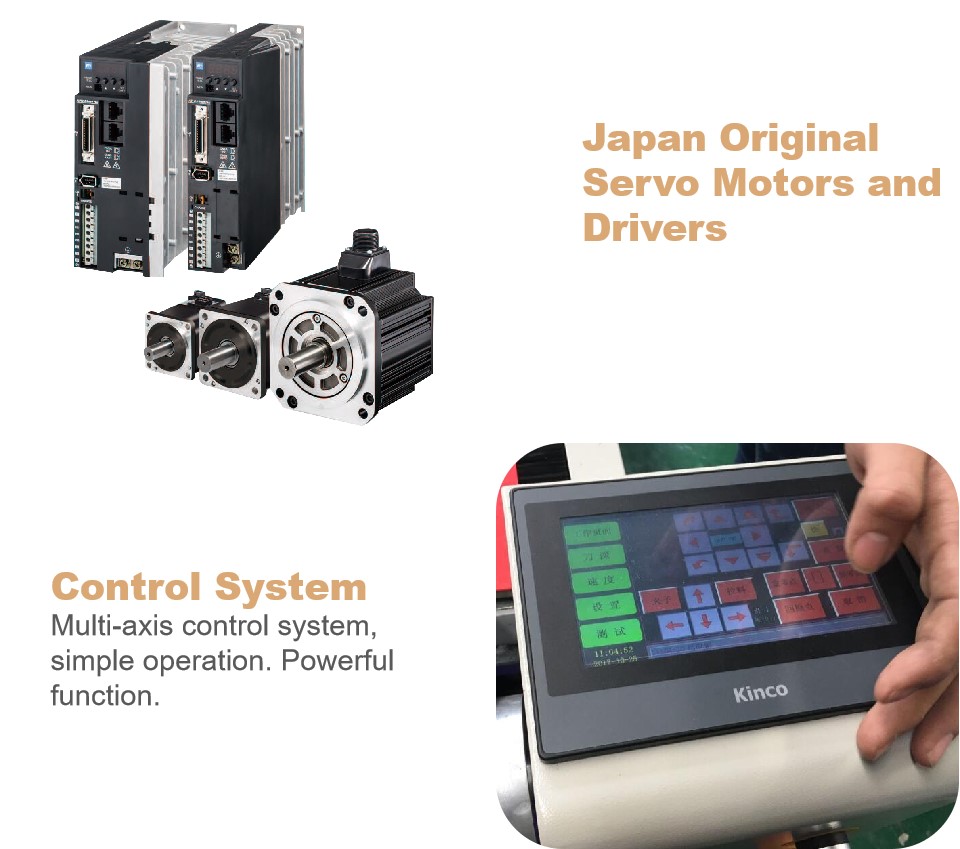

Drive System	Steel timing belt, Japanese servo motor, HIWIN guide rail, timing belt, Taiwan ball screw
Control System	Kinco or Trocen control system
operating mode	op workbench + data output control software (op workbench has two types of connection type and separate type)

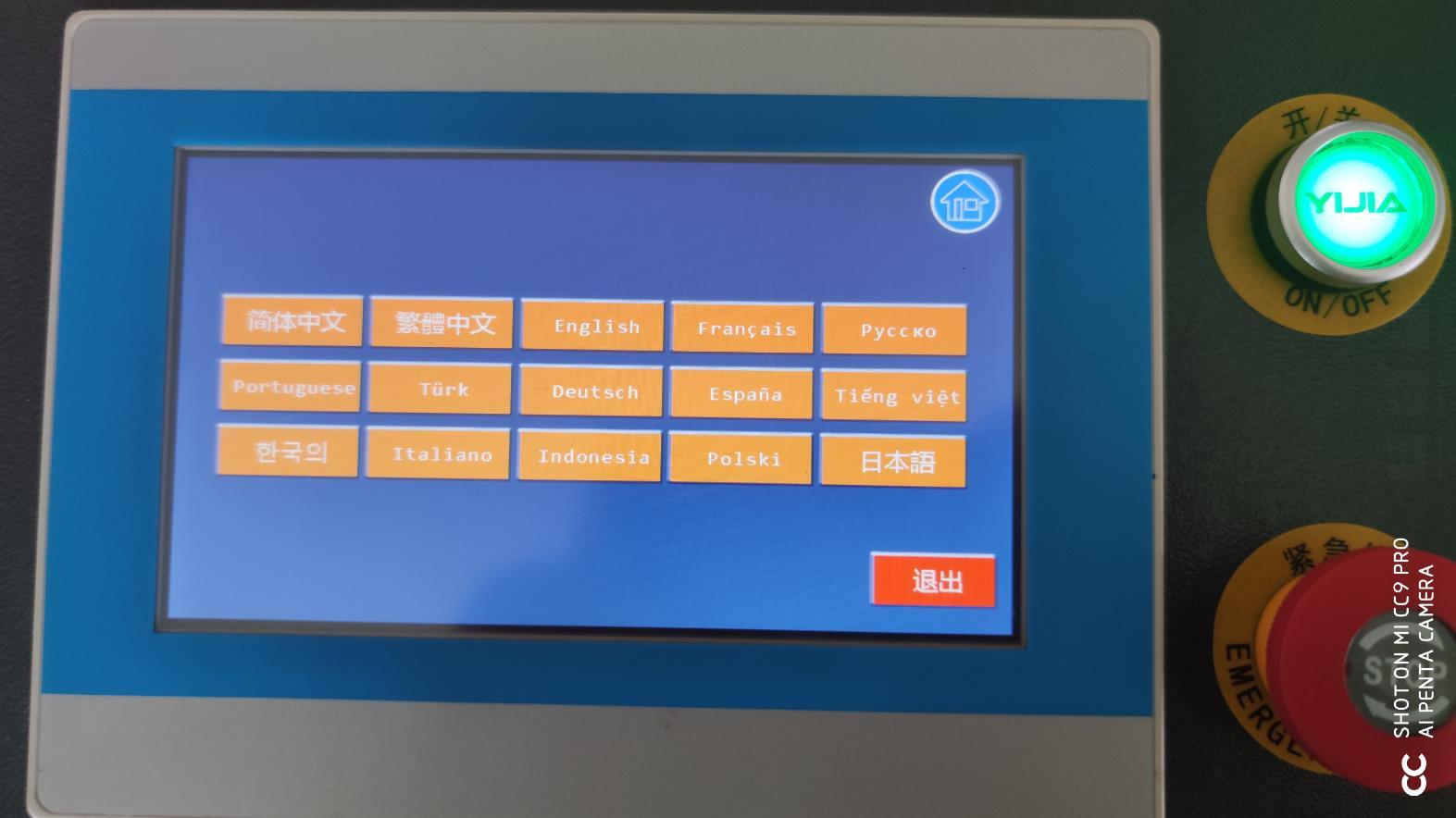

exhibit	English LCD Display
Order	HP-GL Compatible Format
buffer capacity	Standard -- 2GB

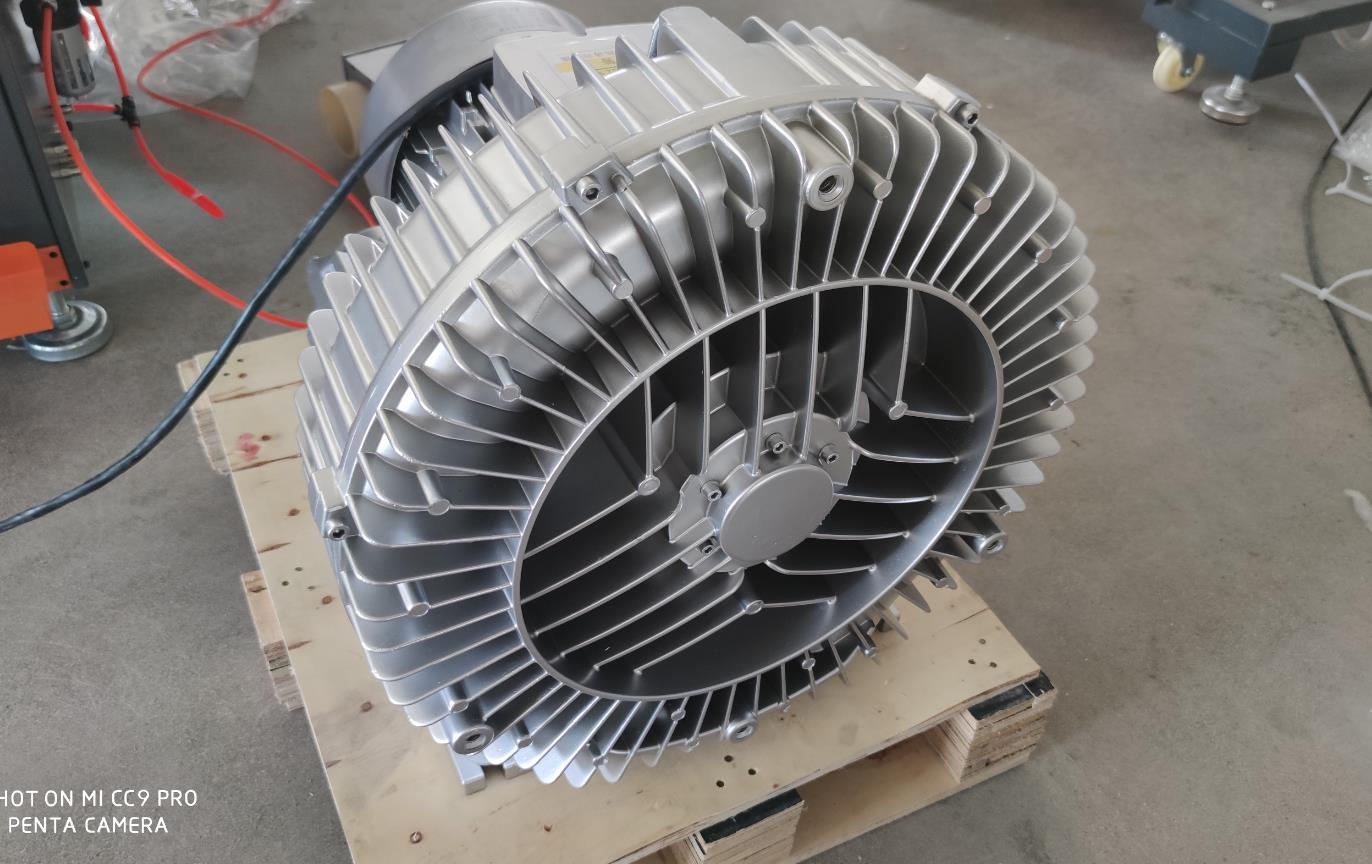

vacuum pump	9KW vacuum pump
knife box	20 new customers
Body size	339124231235mm
