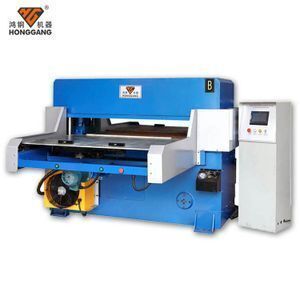

Plastic Sheet Cutting Machine with Automatic Feeding

Supplier: Guangdong Honggang Intelligent Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Mandy Chen
Price: $16999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	guangzhou,shenzhen;	Applicable Industries:	plastic sheet;
computer control:	yes;	Application:	sponge,foam,plastic,leather;
Showroom Location:	none;	Power(W):	7.5KW;
Cutting area:	810*1400mm;	After-sales Service Provided:	Field maintenance and repair service;
Saw Blade Diameter:	810 MM;	After Warranty Service:	Video technical support;
Brand Name:	HONGGANG;	name:	Cross Cutting Machine;
Type:	Hydraulic Cutting Machine;	double-cylinder:	simple,fast,accurate operation;
Voltage:	220V/380V/415V;	Warranty:	1 YEAR;
Cutting force:	100TONS;	No-Load Rotational Speed:	810MM/S;
Dimensions:	300023001570MM;	Packaging Detail:	Cross Cutting Machine wooden package or accoridng to customers' erquirement;
Condition:	New;	Stroke:	50-240mm;
both-size-feeding:	inprove productivity two or three times;	Package Preview:	;
Supply Ability:	50 Set/Sets per Month Cross Cutting Machine;	status:	in stock;
four-column:	auto balance;	Local Service Location:	malaysia;
Rated Power:	7.5KW;	Certification:	CE;
Place of Origin:	Guangdong China;	Key Selling Points:	High productivity;
suitable for material:	sponge,foam,plastic,leather,EVA/EPE/PS/HIPS/PVC/PET/PP/PE/PU,etc.;	Max. Cutting Depth:	240 MM;
Payment Terms:	L/C,T/T,Western Union;

Plastic Sheet Cros Cutting Machine with Automatic Feeding

Product Description

What Detail of our cutting machine?

1.die cutting machine pressure:25tons-300tons,Cut material by dies/moulds.

2.Hydraulic,automatic,material precision 0.01mm,no burned.
3.Two Cylinders,Four Column,Plane cutting press machine
4.Die cutting disposable blister,leather,foam,EVA,sponge,plastic sheet ect.
5.Can make big cutting area:810*1400mm or as required.

HG-B CUTTING MACHINE

The cutting machine used for die cutting disposable blister or foam packing,EPE foam packaging,automatic/plane interiors etc.large materials sheet.

Specification

What Specifications of our cutting machine?

1. Technical Parameters cutting machine

Model. No	HG-B60T	HG-B80T	HG-B100T	HG-B120T	HG-B150T	HG-B200T
Cutting force	60tons	80tons	100tons	120tons	150tons	200tons
*Dimension (LWH)*	300023001570 mm	300023001570 mm	300023001570 mm	300023001570 mm	300023001570 mm	300023001570 mm
Stroke	50-240mm	50-240mm	50-240mm	50-240mm	50-240mm	50-240mm
Area of Work Table	810*1400mm	810*1400mm	810*1400mm	810*1400mm	810*1400mm	810*1400mm
Main Motor Power	5.5KW	7.5KW	7.5KW	11KW	11KW	11.5KW
Net Weight	4500KG	5000KG	5500KG	6300KG	7000KG	7500KG

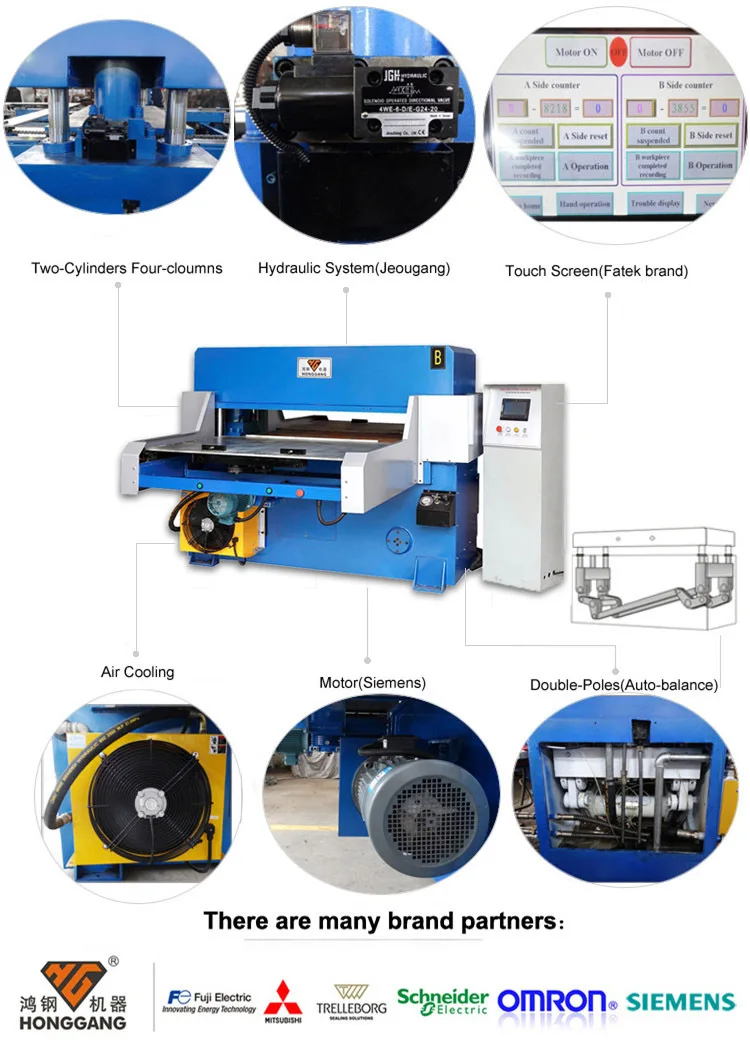

2. Features and Advantages hydraulic die cutting machine

Features and Advantages
1.By computer,Electrical box,PLC control---more simple,fast and precision.
2.TWO-cylinders,four-columns,self-balancing connecting rod ----which can maintain equal pressure of each position.
3.Quite down but slow cut, more accurate,+ _ 0.01mm.
4.Hydraulic system, Central automatic lubrication systems can ensure precision and durability of the machine.

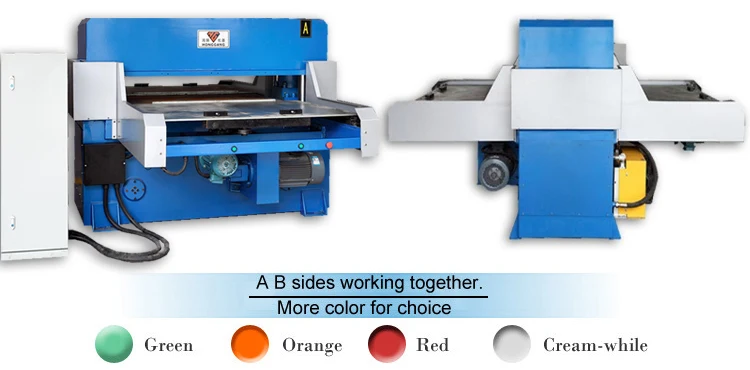

5.Feeding: Single or double auto feeding beds for choosing,more economical and 2 or 3 times improving producting capacity.
6. With micro motion system for installed Double dies.

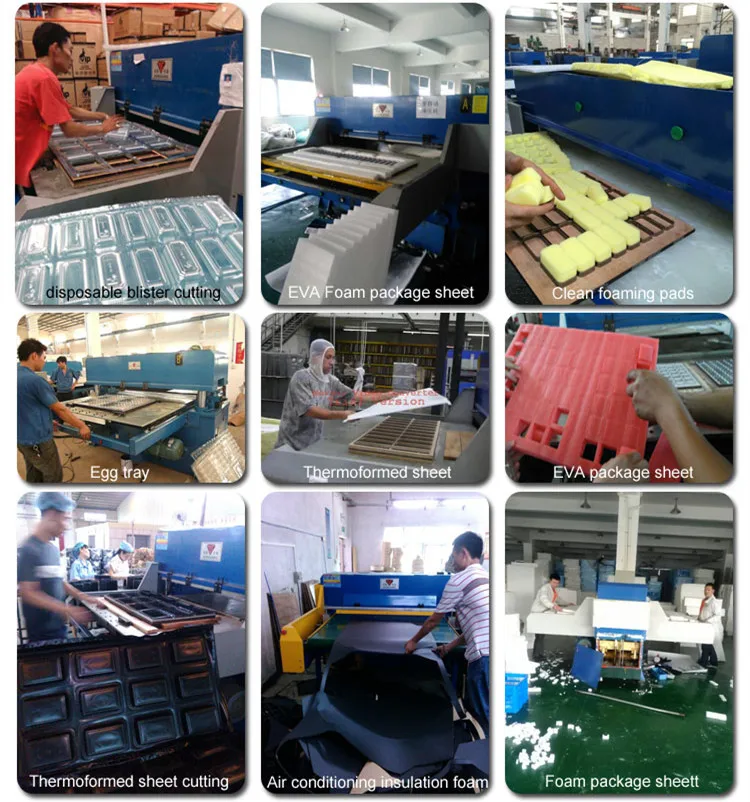

What Working-show of our cutting machine?

1. the cutting machine Working Show

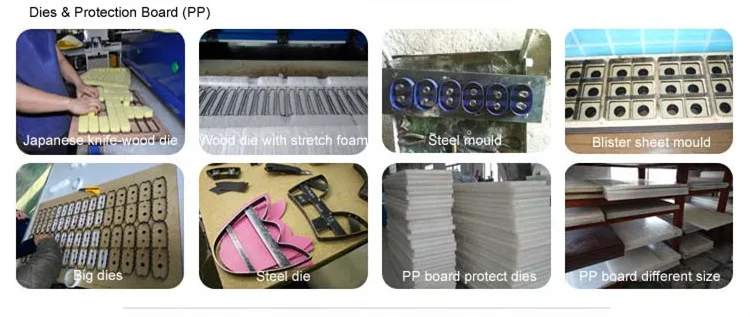

2. the cutting-dies cutting machine

>>> Click here to konw more Dies

What Applications of our cutting machine?

Application Materials:hydraulic die cutting machine

The Cutting Machine is widely used in industrial leather,plastic,rubber,sponge,foam,EVA,PVC,cardboard,paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials,and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time,etc.
