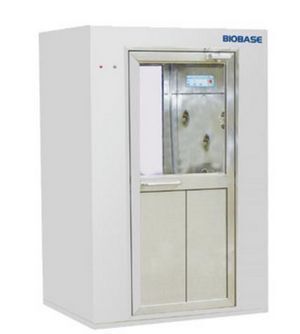

2019 BIOBASE Air Shower with photoelectric sensor,automatic blowing, HEPA Filter.

Product details
Shower Area Size(W*D*H):800*890*1930mm;Power(W):20W;
Place of Origin:Shandong China;Spraying Wind Speed:25m/s;
Port:Qingdao;Consumption:1000W;
Fluorescent Lamp:20W*1;HEPA Filter:99.999% efficiency at 0.3 um;
Packaging Detail:Wooden package;Air Shower Time:0~99s (adjustable);
Warranty:1 year;Weight:300kg;
No.of SS Nozzles:6;Voltage:220, 110v;
Brand Name:BIOBASE;External Size(W*D*H):1300*1000*2050mm;
Package Size(W*D*H)mm:1400*1150*2200;After-sales Service Provided:Video technical support;
Payment Terms:L/C,T/T;Chassis:Stainless Steel;
Condition:New;Supply Ability:100 Unit/Units per Month;
Certification:CE ISO;Dimension(L*W*H):1300*1000*2050mm;
Air Shower




Air shower is a necessary passage for person entering clean room in order to minimized the amount of particulate contaminant, achieve workplace strict clean purification standards. Personnel move through the air shower while

particulate contaminants are blew off by the clean high speed air. So the dust cannot be brought into clean

area.






























































 Features
1.Photoelectric sensor,automatic blowing.
2.Designed with circulation wind to easure the cleanness of shower area under non-shower status.
3.Double doors with electric interlock.
4.LED display with adjustable blowing time (0~99s).
5.HEPA Filter,Class 100 cleanness.


Models:

Model

AS-1P1S

AS-1P2S

AS-2P2S

External Size(W*D*H)

1300*1000*2050mm

1500*1000*2050mm

1500*2000*2050mm

Shower Area Size(W*D*H)

800*890*1930mm

800*890*1930mm

800*1890*1930mm

HEPA Filter

99.999% efficiency at 0.3 um

Spraying Wind Speed

25m/s

Air Shower Time

0~99s (adjustable)

No.of SS Nozzles

6

12

24

Fluorescent Lamp

20W*1

20W*1

20W*2

Consumption

1000W

1500W

2000W

Cabinet Material (Optional)

1. Full cold-rolled steel with powder coating.

2. Internal stainless stell,external with cold-rolled steel

3. Full Stainless Steel.

Door Material

(Optional)

1. Cold-rolled steel with powder coating.

2. Stainless Steel

Chassis

Stainless Steel

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Gross Weight

300kg

400kg

700kg

Package Size(W*D*H)mm

1400*1150*2200

1600*1150*2200

1600*1650*2200
