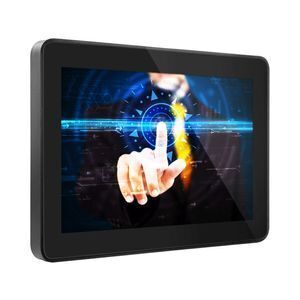

HM104 10 inch industrial capacitive touch monitor with high brightness 1000 nits

Supplier: Shenzhen Hopestar Sci-Tech Co., Ltd.
Region: Guangdong, China
Contact: Ms HOPESTAR CHENG
Price: $145.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Single gross weight:	3 KG;	Series:	For Business;
Aspect Ratio:	16:9;	Material:	Metal Case + Toughened Glass Panel;
Single package size:	26X12X5 cm;	Certificates:	CE/CB/FCC/RoHs;
Product name:	10.1 Inch Touch Screen Monitor;	Certification:	ce;
Selling Units:	Single item;	Interface Type:	D-Sub,DVI,Serial,USB;
Products Status:	New;	Brand Name:	cnhopestar;
Viewing Angle (H/V):	178/178;	Keywords:	Open Frame 10 Inch Touch Screen Monitor;
Place of Origin:	China;	Package:	Yes;
Type:	Capacitive;	Touch type:	Capactive;
Color:	Black;	After-sales Service:	Call Center and on-line Technical Support,Onsite Training and Inspection,Free spare parts;
Warranty(Year):	1-year;	Panel Size:	10'' touch monitor;
Touch points:	10 Touch Points;	Touch Interface:	USB Touch Interface;
Products Status:	Stock;

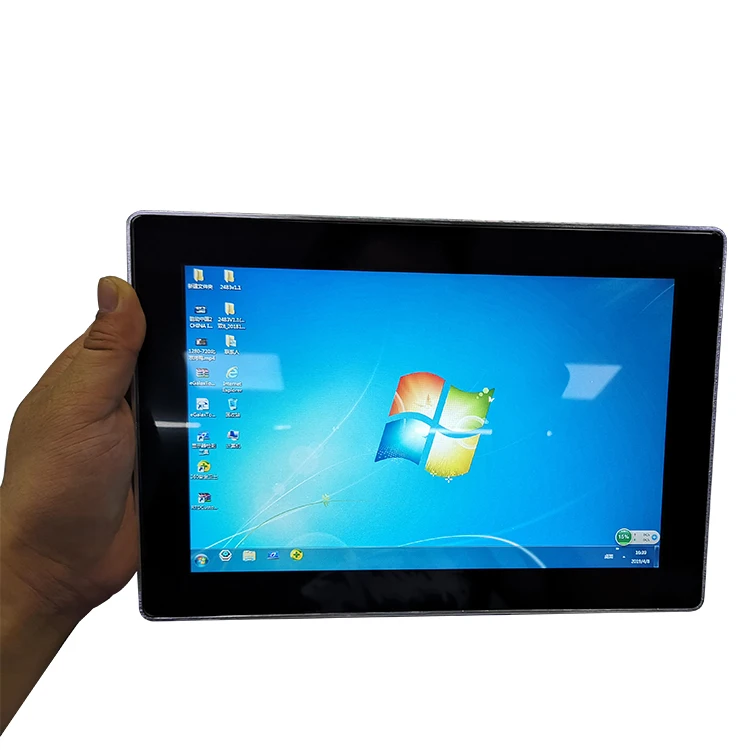

10 inch industrial capacitive touch monitor with high brightness 1000 nits

Product Description

Specification
General
Series	Water-proof and Flat screen
Monitor Dimensions	Width: 254.8mm Height: 177.5mm Depth: 40mm
LCD Type	10.1” Active matrix TFT-LCD

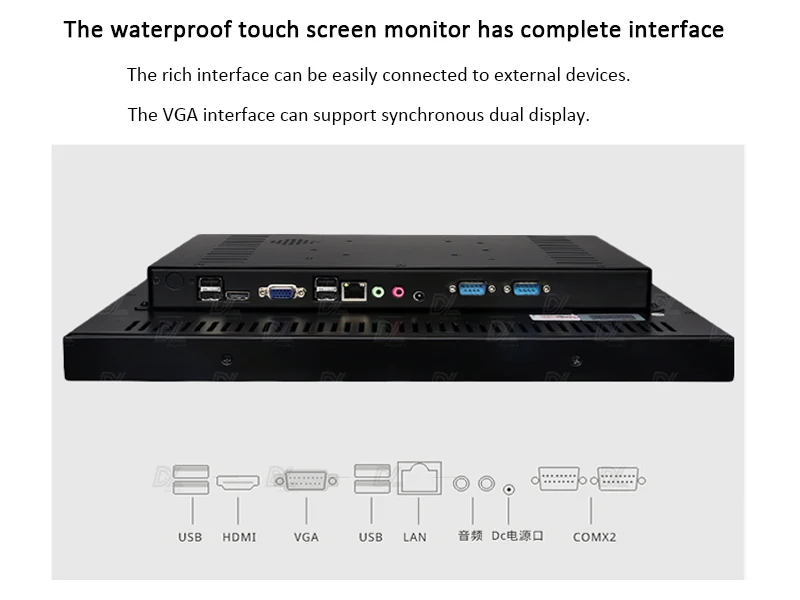

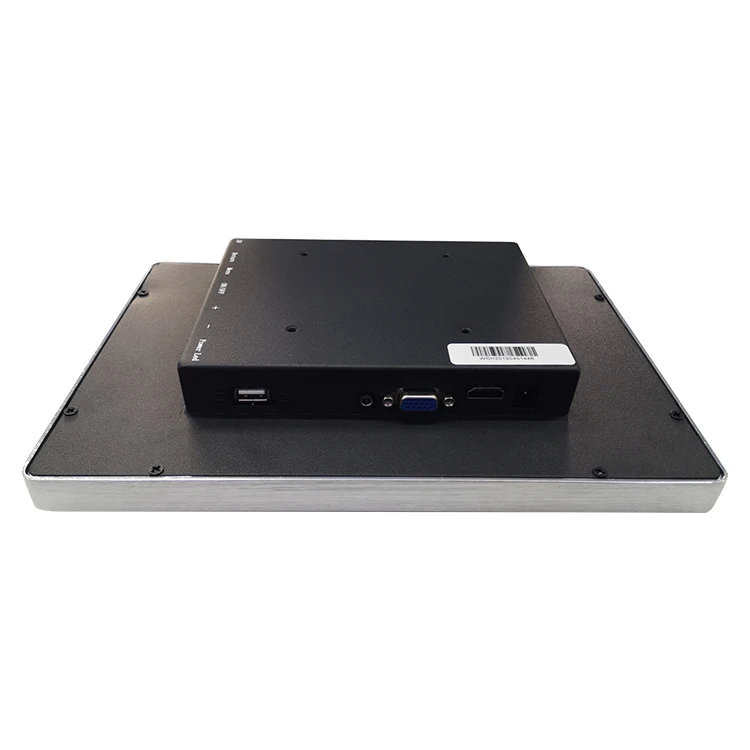

Video Input	VGA and DVI
OSD controls	Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply	Type: External brick
	Input (line) voltage: 100-240 VAC, 50-60 Hz
	Output voltage/current: 12 volts at 4 amps max

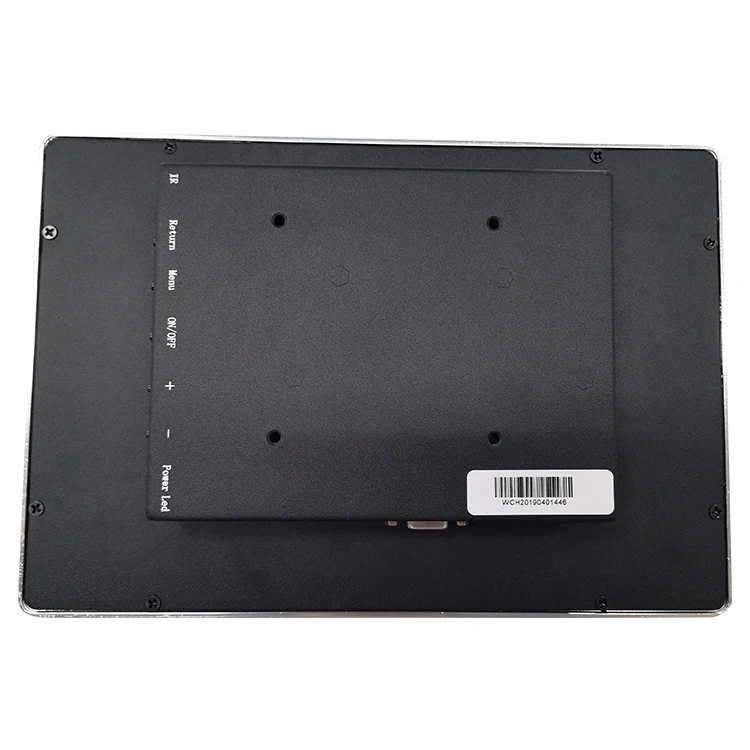

Mount Interface	1)VESA 75mm and 100mm
Mount Interface	2)Mount bracket, horizontal or vertical
LCD Specification
Active Area(mm)	216.96 (H) x 135.6(V)
Resolution	1280×800 @60Hz
Dot Pitch(mm)	0.1695(H) x 0.1695(V)
Nominal Input Voltage VDD	+4V(Max)
Viewing angle (v/h)	80°/89°(CR>10)
Contrast	800:1
Luminance(cd/m2)	1000 cd/ m2
Response Time(Rising)	25msec
Support Color	16.7M colors
Backlight MTBF(hr)	10000(Min)

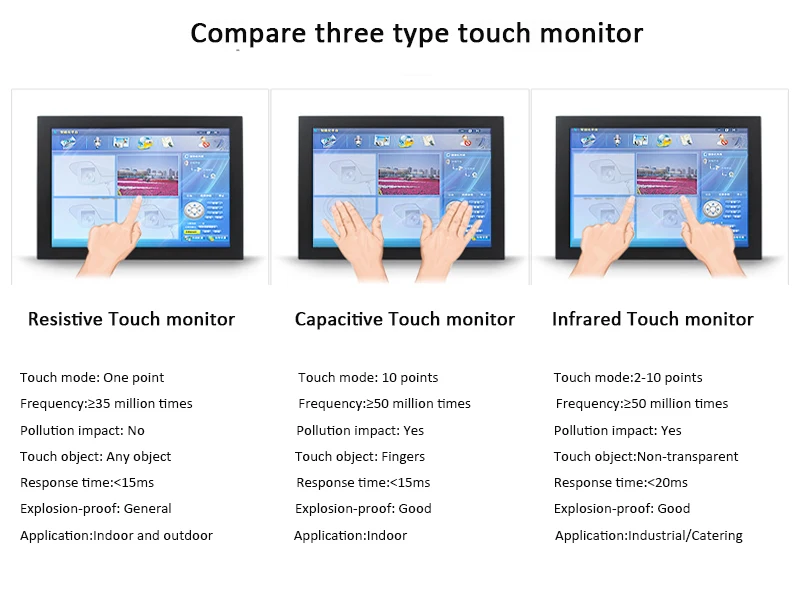

Touchscreen Specification
Type	Projected Capacitive touch screen
Multi touch	5points touch
Touch Life Cycle	10 millions
Touch Response time	8ms
Touch System Interface	USB interface
Power consumption	+5V@80mA
External AC Power Adapter
Output	DC 12V /4A
Input	100-240 VAC, 50-60 Hz
MTBF	50000 hr at 25°C
Environment
Operating Temp.	0~50°C
Storage Temp.	-20~60°C
Operating RH:	20%~80%
Storage RH:	10%~90%
Components
USB Cable 180cm*1 Pcs,
VGA Cable 180cm*1 Pcs,
Power Cord with Switching Adapter *1 Pcs,
Bracket*2 Pcs

Packaging & Shipping

Shipping:

UPS / DHL / EMS / HK EMS / FEDEX / HK post / TNT and so on express(door to door).
For Air transportation, Sea transportation Please choose your favorite, shipping method according your detail requirement.
The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities.
Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.

Our Services

Advantages :

*** Professional. We specialized in pc monitors since 2002

*** Excellent team. More then 50 sales service team , offer you the professional and efficient service.

*** QC team . 10 professional QC to give you guarranted quality products

*** OEM /ODM we accept OEM / ODM service , which can customzied logo , package and design .

Quality Services:

1. All our products have one year guarantee from the shipping date.And it is ok upgrade to two or

Three years guarrantee with addtional cost.

2.Under guarantee: if any non-human damage happen, we'll offer free repairing or replacement

3. Out of guarantee: we offer repairing parts at lower cost, and service free in charge

Customization & design services:

We accepted customized projects including software and hardware.
Do not hesitate to share your idea with us, since we have experienced engineer team and we always do our best to help client's project

Warranty:

1. One year warranty for All in one pc,laptops and tablet,3 years for monitor.

2.Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free

3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) aredamaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.

Delivery Time :

1.Sample within 1-2 working day.

2.Wholesales Orders 3-7 working days according various quantities.

3. OEM 7-15 working days after receiving your sample confirmation and payment.
