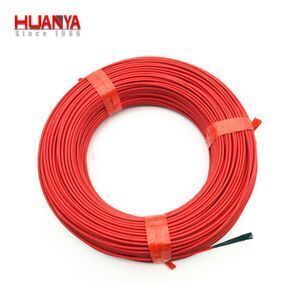

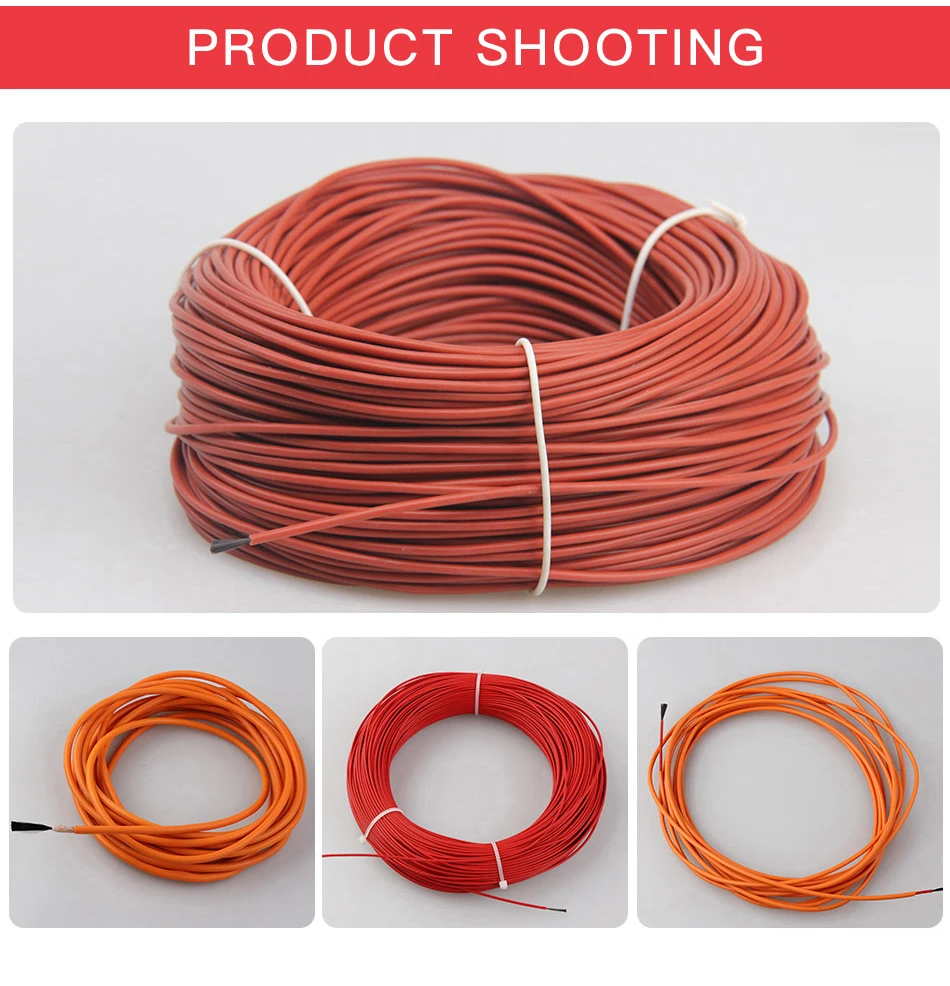

Far Infrared 12K Silicon carbon fiber Heating Wire

Supplier: Jiangsu Plaza Premium Electric Instrument Co., Ltd.
Region: Jiangsu, China
Contact: Ms April Yuan
Price: $0.17 / >=100 meters
Min. Order: 100 meters

Click here to contact

Product details

Single gross weight:	0.01 KG;	Conductor Type:	solid;
Package Type:	The packing for Far Infrared 12K Silicon carbon fiber Heating Wire: According to customers' requirements;	Rated voltage:	300~600V;
Place of Origin:	China;	Application:	heating;
Model Number:	Carbon fiber heating wire;	Selling Units:	Single item;
Model Number:	1K 3K 6K 9K 12K 24K;	Brand Name:	HY;
Number of Conductors:	single;	Conductor:	copper/tinned copper;
Product name:	Far Infrared 12K Silicon carbon fiber Heating Wire;	Single package size:	100X0.22X0.22 cm;
Conductor Material:	carbon fiber;	Temperature range:	-80C~200C;
Insulation Material:	PVC, PFA, PTEF, PVC,FEP;	Type:	Bare;
Color:	White/blue/red/black/brown/yellow;	Jacket:	PFA, PTEF, PVC,FEP;

Model	36K	24K	18K	15K	12K	9K	6K	3K
Resistance Ω/m	10.5	17	22.5	25	33	42	66	133
Wire Diameter mm	3.2	3.0	2.8	2.5	2.2	2.0	1.8	1.5

Product Model: 24K carbon fiber heating cable

Working voltage: 220V

Insulation strength: >500 megohms
Product model: 24k

Outer layer protection: high temperature resistant PVC layer
Product specifications: 12.5m per group

Temperature resistance temperature: 280 degrees
Product power: 230w per group

Wire diameter: 5.5mm

Specification	Power(W)	Laying area
2 roots / group	460	3
3 roots / group	690	4.5
4 roots / group	920	6
5 roots / group	1150	7.5
6 roots / group	1380	9
7 roots / group	1610	10.5
8 roots / group	1840	12
9 roots / group	2070	13.5
10 roots / group	2300	15
11 roots / group	2530	16.5
12 roots / group	2760	18
13 roots / group	2990	19.5
14 roots / group	3220	21

1.K represents the meaning of thousands?

1K is a thousand silk, 24K is 24 thousand silk (24000) composition

Different K numbers represent different resistorsl

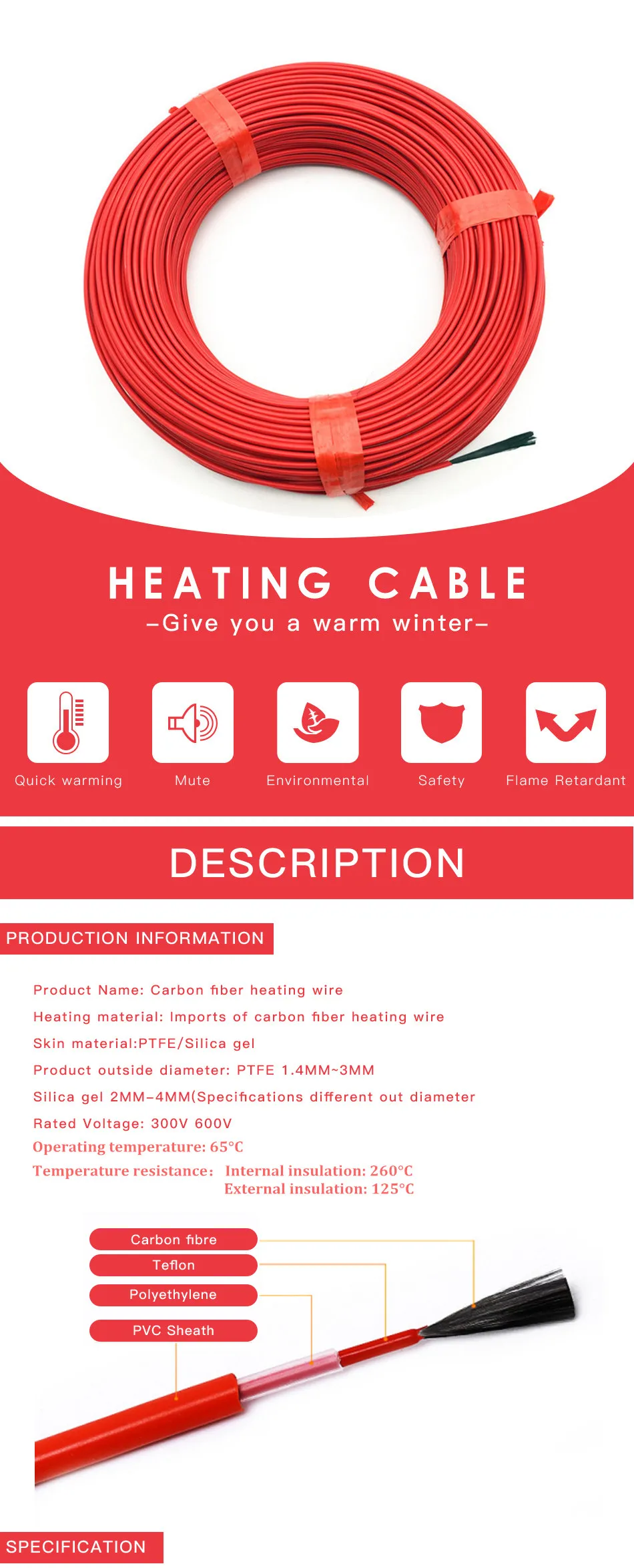

2.The difference between silicone and PTFE

PTFE/PFA/FEP carbon fiber heating wire

Advantages: Wear, corrosion resistance, no smell

Disadvantages: Relative to the silicone are not soft

Silicone carbon fiber heating wire

Advantages: Resistant to bending, soft

Disadvantages: There is smell

3.What is the resistance per meter?

1K=400Ohm/m, 2K=220Om/m, 3K=133hm/m, 6K=74Ohm/m, 9K=43Ohm/m, 12K=33Ohm/m, 15K=24Om/m, 18K=21Ohm/m, 24K=17Ohm/m, 36K=12Ohm/m, 48K=9Ohm/m

4.How to calculated power

Product power calculation:

(Voltage*Voltage)÷(resistance*length)=power

The longer the length, the smaller the power of the heating line

Precautions

The heating wire can not overlap when used! Can not cross!

Cross-over will make the heating line local temperature higher than the melting point of the protective layer, will damage the heating wire!

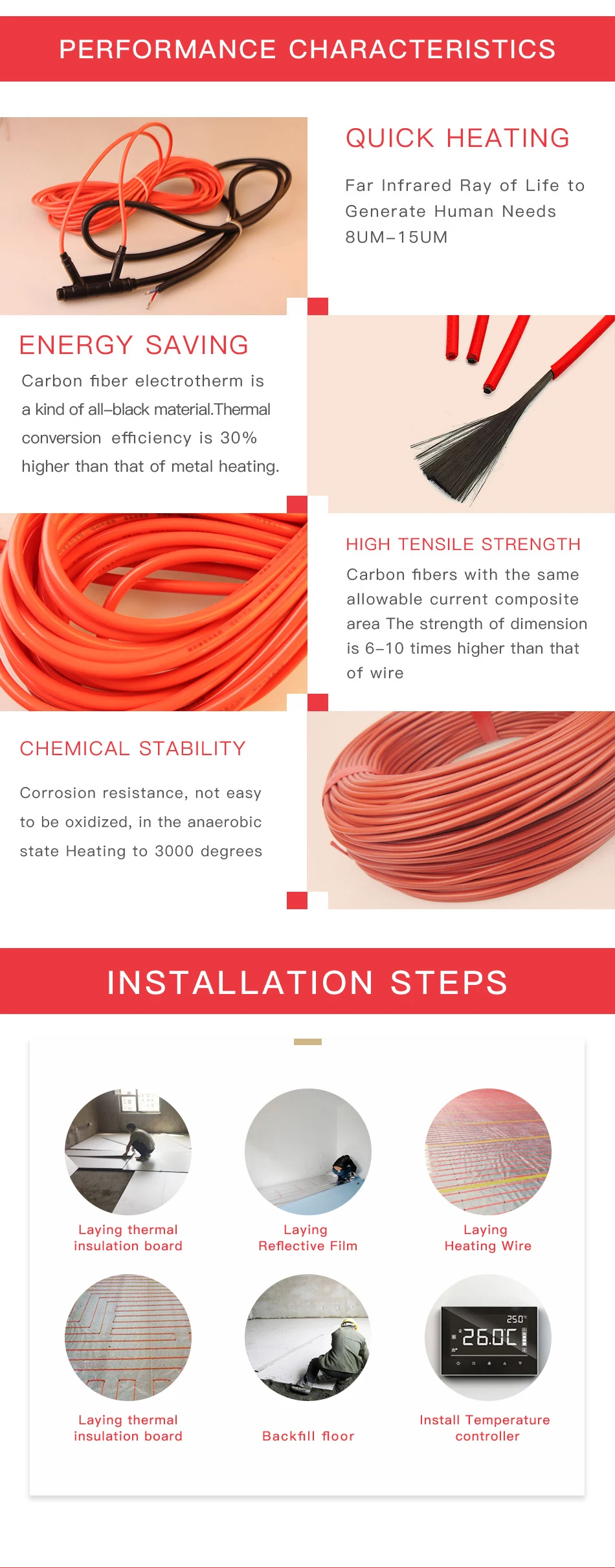

5.About installation

The normal laying power is 100-160 watts per square. Different areas can be increased or decreased according to the room's own insulation and the type of floor. The installation is very simple, we will guide the installation, the normal laying distance is 12cm.

6.Precautions
The carbon fiber heating wires must not cross between each other during installation and should not be touched with each other. After installation, wait until the concrete floor is fully dried and then heat to prevent the floor from being cracked and twisted due to excessive temperature rise. When using the floor heating for a long time, set the minimum temperature first, then slowly heat up for the same reason.
