Bardiche CUT100IJ CUT machine

Supplier: Wenzhou Chiefstone C&T Co., Ltd.
Region: Zhejiang, China
Contact: Ms Nancy Wang
Price: $761.00 / >=20 pieces
Min. Order: 20 pieces

Click here to contact

Product details

Warranty:	1 year;	Port:	SHENZHEN;
Place of Origin:	Guangdong China;	Payment Terms:	T/T,Western Union;
Condition:	New;	Certification:	CE;
Key Selling Points:	Easy to Operate;	Showroom Location:	None;
Motor Type:	Stepper Motor;	After Warranty Service:	Video technical support,Online support;
Dimension(LWH):	550x280x545 mm;	Local Service Location:	United States;
Voltage:	380V/3P/50-60HZ;	After-sales Service Provided:	Free spare parts,Online support,Video technical support;
Packaging Detail:	Netural carton packing;	Advantage:	Easy to use;
Supply Ability:	1000 Piece/Pieces per Month;	Weight (KG):	36;
Applicable Industries:	Manufacturing Plant,Construction works ;

Product description

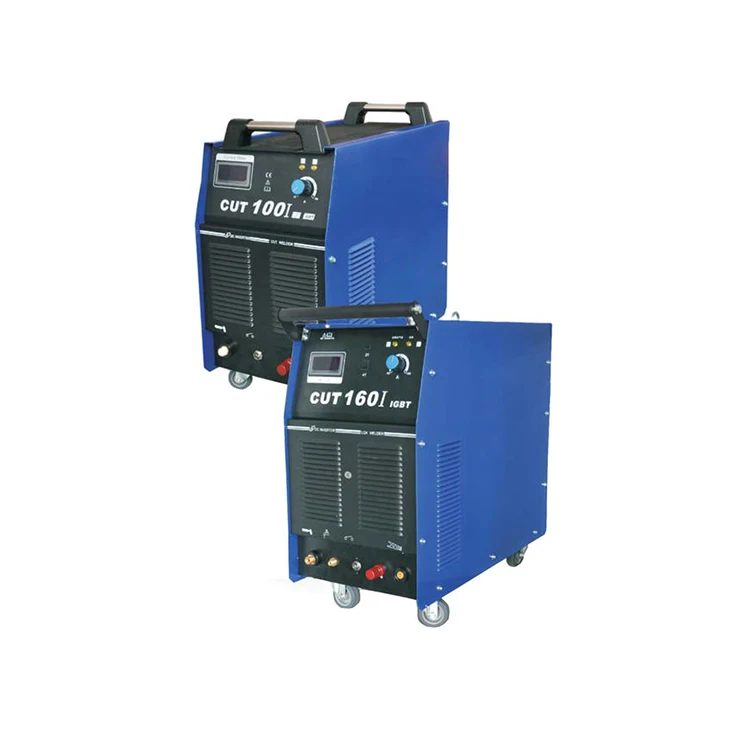

The Bardiche CUT 100IJ is the plasma cutting advantage cutting technology and competitive products, its advanced igbt Module technology , thri proof air tube design , and high duty cycle, more reliable in bad environment.

These CUT 100IJ could be suitable for heavy industrial plasma cutting process. The base unit includes 1 pcs inverter power source, 5m cutting torch and cable assembly for Cut 100 IJ. And the the 6 m A141 cutting torch and cable assembly could be for CUT 160I. Both two machine will includes 3 m work cable and 300A clamp with Euro plug and air filter kit.

Model	CUT100IJ	CUT160I
input voltage/phase /frequency	380V/3P/50-60HZ	380V/3P/50-60HZ
output current/voltage/duty cycle	100A/120V/60%@40°C 77A/111V/100%@40°C	160A/144V/60%@40°C 123A/130V/100%@40°C
amps input rated output	23.1A@100A	43.1A@160A
Output range/ocv	20-100A/268V	20-160A/320V
Dimension	550x280x545 mm	670x337x617 mm
Weight	36 kg	60 kg
