2 Ton hydraulic car trolley jacks floor jack wheels T820050 for car wash

Product details
Min. Height:135 mm;QTY / 20'CY:1950 pcs;
Use:Car Jack;Certification:CE.TUV.GS;
Product Size:447x196x135 mm;Model Number:T820050;
Place of Origin:china;Max. Height:340 mm;
Single gross weight:9.4 KG;Single package size:46X21.5X14.5 cm;
Brand Name:bigred;Capacity:2 Ton;
Warranty:12 Months;Selling Units:Single item;
Color:red;Type:Flooring Jack;
N.W. / G.W.:8.7 / 9.4 KG;Package Preview:https://sc01.alicdn.com/kf/HLB1uxlsbtjvK1RjSspiq6AEqXXaa.jpg_640x640.jpg;



Description

• PRODUCT INFORMATION

This BIGRED product has a single hydraulic pump piston that effortlessly raises the lift arm. Pump piston dust

shields and wiper seals protect the hydraulic system from contaminants. The jack features an overload valve

bypass system to prevent jack damage and user injury. Compact design allows use in confined spaces. Easily

fits under low vehicles. This product is tested for reliability and safety.



Features

• FEATURES

•  The hydraulic technology makes lifting simple while a wider frame and internal bypass valve ensure safety.

•  Safety bypass system prevents over-loading and ensures safe operation.

•  Steel casters for longevity.





Solutions

• COMMON PROBLEMS AND SOLUTIONS

1. When lifting heavy weights, the mandril fails to rise to the maximum route. When the jack reaches a certain height, and the maximum route is not reached, the mandril cannot rise up any more, which indicates that there is a lack of working oil in the jack, and it should be replenished.

2. The mandril wobbles while rising. Generally the oil return valve is not closed tightly; we can tighten oil return valve needle in counterclockwise direction. If it is still unstable, check whether there is any oil leakage around the pressure rod; if the oil leaks, it indicates that the seal ring of the mandril is damaged, and it should be replaced. If there is no oil leakage, confirm again whether the oil return valve and the inlet valve is already locked, and also check sealing gasket conditions in the cylinder end joint of pressure rod; if all the above is normal, then it indicates that the seal ring is damaged, or the fixed screw is loosening, we should replace it or tighten the screw.

3. The mandril fails to rise while no-load. First check the oil amount of the jack, and we should add oil when insufficient. If jack is not short of oil, we can loosen the oil return valve needle of the jack, remove the oil plug of oil filling port, then trample on the jack base by our feet, repeatedly pull up the mandril and press down again by our hands for several times, in order to exhaust air; after the above actions are completed, tighten the oil plug of oil filling port and oil return valve tightly, and then try again the no-load mandril; if the mandril still cannot rise, lay jack flat, remove the oil return valve, check whether the valve and seat contact well; if there is dirt, it should be removed; if there is pit, slot and uneven, it should be replaced. Finally check whether the oil inlet valve is well sealed and the sealing ring of mandril is damaged or falls off. If any, replace it in time.

4. Oil leakage, can be seen by visual observation. The oil leakage area of the jack is usually in the base and the cylinder joint, around the mandril, in the lock thread of the oil return valve, in the fixed oil plug of the oil filling port, around pressure rod etc. The cause of oil leakage is usually the damage of sealing gasket, it must be replaced in time.



Guarantee



Packaging

• PACKAGING and SHIPPING

Jacks packed in color box/blow case/oem box/,thrink plastic film& pallet as optional choice.We load numbers containers everyday in factory,directly shipped from shanghai to our customers.



Company

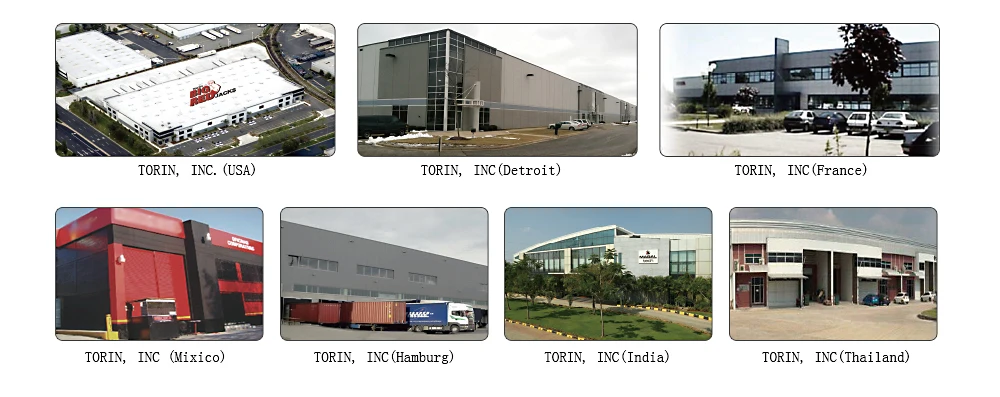

• COMPANY INFORMATION

The company has jacks and its complete extended warranty maintenance equipment industry chain.Changshu Tongrun Auto Accessory Co.owns a number of subsidiaries,such as stamping,welding,metal processing,packaging and printing compony to service manufacture requirement.Hundreds of thousands of people are involved in the industrial chain and creat jobs for families.The compony produces commercial jacks,professional jacks,lifting machine including other car maintenance equipment.Commercial jacks, professional auto maintenance equipment, auto lift, automobile jack are more than 2000 products,cover 4s shops.Tongrun is the productor who provides the overall solution of the hydraulic auto maintenance equipment.Its controlled companys are all over the world.



FAQ

• QUALITY GUARANTEE

we give 1-3 year guarantee(According to different products), including F.O.C parts service and technical support



• LEAD TIME

45-90days since date of order be confirmed



• SAMPLE

lead time: 7-15days depends item



• SAMPLE CHARGE

wholesale price + freight



• MOQ

We asks for usd5000.00 combination with a few models as trial order

Payment terms: T/T ,OA,L/C,TRAD ASSURANCE,

Currency: usd, rmb



• PACKAGE

our brand of Torin ,BigRed/ OEM brand/ plain box, No Brand
OEM order:
OEM order with special package and color requirements is acceptable
Shipment sea port:
we export from Shanghai/Ningbo



• CUSTOMER SERVICE

24hours by email
Hotline/Urgent inquiry :
(T) +86 512 52341192 (M)

Online contact:

(Qianniu ID ): tony @tongrunjacks.com

(WhatsApp ID): +86 15995923385

(Skype ID): elvaxu-tongrun
