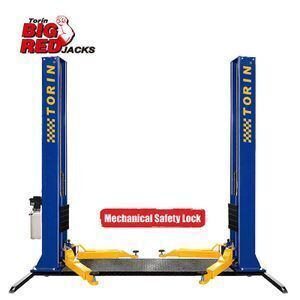

Torin BigRed Hydraulic 2 Two Post Car lift

Product details
Payment Terms:L/C,T/T;Brand Name:TorinBigRed;
Model Number:QJY230B;Color:BLUE;
Lifting Capacity:4000KG;Certification:ce;
Place of Origin:Jiangsu China;Design:Two Post;
N.W.:675KG;Overall height:2866mm;
Packaging Detail:Torin BigRed Hydraulic 2 Two Post Car lift Packing Content: Bottle Jack, Handle, Manual;Port:Shanghai;
Warranty:12;Type:Double Cylinder Hydraulic Lift;
Supply Ability:10000 Piece/Pieces per Day for Torin BigRed Hydraulic 2 Two Post Car lift;Name:Torin BigRed Hydraulic 2 Two Post Car lift;
Description

• PRODUCT INFORMATION

This Car Lift offers the convenience of wide or narrow installation wrapped up into one configurable package. The durable, safe and reliable to suit virtually every vehicle-lifting requirement.  It's a simple yet highly sophisticated lift designed to minimize service and maintenance costs while delivering low operating expenses and high productivity



Features

• FEATURES

ELECTRIC SAFETY LOCK

 • Fully automatic electric control panel.

• Driven by dual hydraulic cylinders.

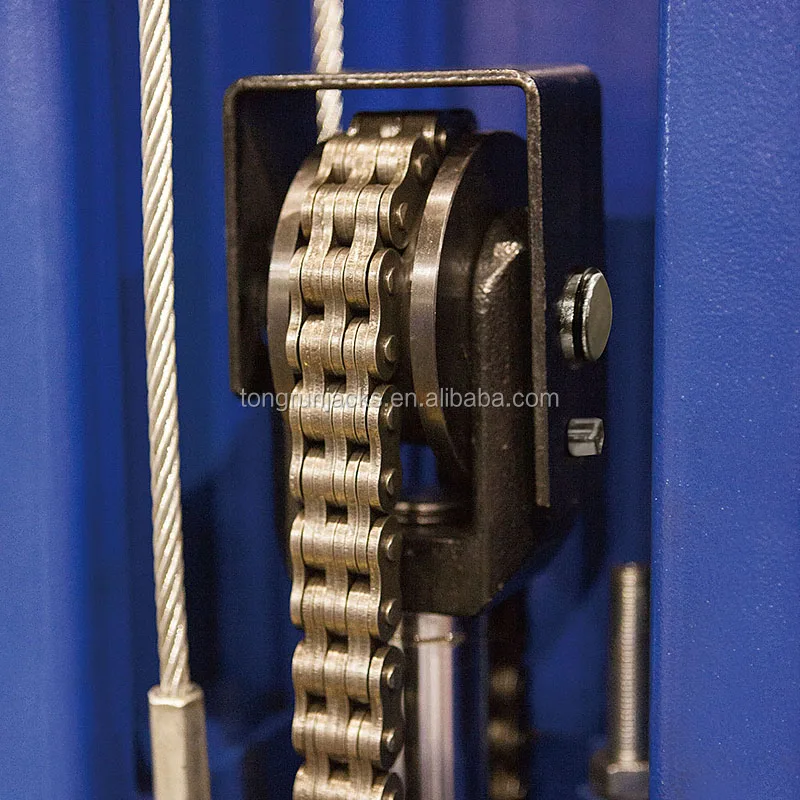

• Chain type lifting system.

• Internal Electric locking mechanism, w/two point safety latches in each column.

• Automatic safety arm locks.

• Easy to operate up and down switches on electrical control box.

• Steel wire rope equalizing cables.

• Multi-voltage power supply is available for electrical requirements.

• Optional motors available.

• Adjustable lift pads and adapters

• Wide base platform for extra support.

• Durable powder coat finish



Solutions

• COMMON PROBLEMS AND SOLUTIONS

Sequence of Lockout Procedure

1) Notify all affected employees that a lockout is being performed for servicing or maintenance and that the lift must be shut down and locked out to perform the servicing or maintenance

2) Unload the subject lift (remove vehicle). Shut it down and assure the disconnect switch is "OFF" if one is provided on the lift.

3) The authorized lockout person operates the main energy isolation device removing power to the lift being taken out of service. Stored or residual energy (such as capacitors, springs, elevated machine members, hydraulic systems, air, or etc.) must be dissipated or restrained by methods such as grounding, repositioning, blocking, bleeding down, etc.

If this is a lockable device, the authorized lockout person places the assigned padlock on the device to prevent its unintentional reactivation. An appropriate tag is applied stating the person's name, at least 3" x 6" in size, an easily noticeably color, and states not to operate device or remove tag. If this device is a non-lockable circuit breaker or fuse, replace circuit with a "dummy" device and tag it appropriately as mentioned above.

4) Ensure that the equipment is disconnected from the energy sources' by first checking that no personnel are exposed, then verify the isolation of the equipment by operating the push button or other normal operating controls' or by testing to make certain the equipment will not operate. . Be sure to return any switches to the "OFF" position.

5) The equipment is now locked out and ready for the required maintenance or service.



Restoring Equipment to Service

1) Check the lift and the immediate area around the lift to ensure that nonessential items have been removed

(clear all tools, vehicles and personnel) and that the completion of all lift components are operationally intact.

2) The authorized person can now remove the lock (or dummy circuit breaker or fuse) and tag. Activate the energy

isolating device so that the lift may again be placed into operation.



Guarantee



Packaging

• PACKAGING and SHIPPING

Jacks packed in color box/blow case/oem box/,thrink plastic film& pallet as optional choice.We load numbers containers everyday in factory,directly shipped from shanghai to our customers.



Company

• COMPANY INFORMATION

The company has jacks and its complete extended warranty maintenance equipment industry chain.Changshu Tongrun Auto Accessory Co.owns a number of subsidiaries,such as stamping,welding,metal processing,packaging and printing compony to service manufacture requirement.Hundreds of thousands of people are involved in the industrial chain and creat jobs for families.The compony produces commercial jacks,professional jacks,lifting machine including other car maintenance equipment.Commercial jacks, professional auto maintenance equipment, auto lift, automobile jack are more than 2000 products,cover 4s shops.Tongrun is the productor who provides the overall solution of the hydraulic auto maintenance equipment.Its controlled companys are all over the world.



FAQ

• QUALITY GUARANTEE

we give 1-3 year guarantee(According to different products), including F.O.C parts service and technical support



• LEAD TIME

45-90days since date of order be confirmed



• SAMPLE

lead time: 7-15days depends item



• SAMPLE CHARGE

wholesale price + freight



• MOQ

We asks for usd5000.00 combination with a few models as trial order
