90-315mm Hydraulic Butt Poly PPR Fusion Plastic Pipe Sheet Welding Equipment Welder Machine

Product details
Applicable Industries:Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops;Weight (KG):230 KG;
Package Preview:https://sc01.alicdn.com/kf/U193e28f5a9424ba68bbc030c2e2546d3x.jpg_640x640.jpg,https://sc02.alicdn.com/kf/U84192c4c12f142d3934bc1badd65fe4dU.jpg_640x640.jpg;After Warranty Service:Video technical support,Spare parts;
Condition:New;After-sales Service Provided:Free spare parts,Online support,Video technical support;
Hydraulic Unit Power:0.75 KW;Brand Name:Polyfusion;
Usage:PE Pipe & Fitting Welding;Dimensions:1.0 CBM;
Single gross weight:230 KG;Selling Units:Single item;
Weight:230KG;Single package size:150X110X60 cm;
Showroom Location:United States,India,Russia;Power:5.35 KW;
Name:90-315mm Butt Welding Machine Price;Welding Materials:PE PP PPR PVDF;
Welding range:90mm 110mm 125mm 140mm 160mm 180mm 200mm 225mm 250mm 280mm 315mm;Pressure Adjustable Ranges:0-6.3Mpa;
Planning Tool Power:1.8 KW;Current:AC;
Package Type:each PF315 bypackged: 1. Inner package: Wrap the machine with a stretch film. 2. Outside package: 2 plywood boxes.;Heating Plate Power:2.8 KW;
Warranty:1 year;Package:2 Wooden Boxes;
Certification:ISO.CE;Input Voltage:220V;
Key Selling Points:Competitive Price;Local Service Location:United States,India,Russia;
Place of Origin:China;

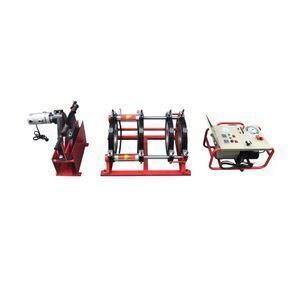

90-315mm Butt Welding Machine


Brief: Suitable for welding of plastic pipes and fittings made from PE, PP & PVDF.
Be made of Aluminum material.

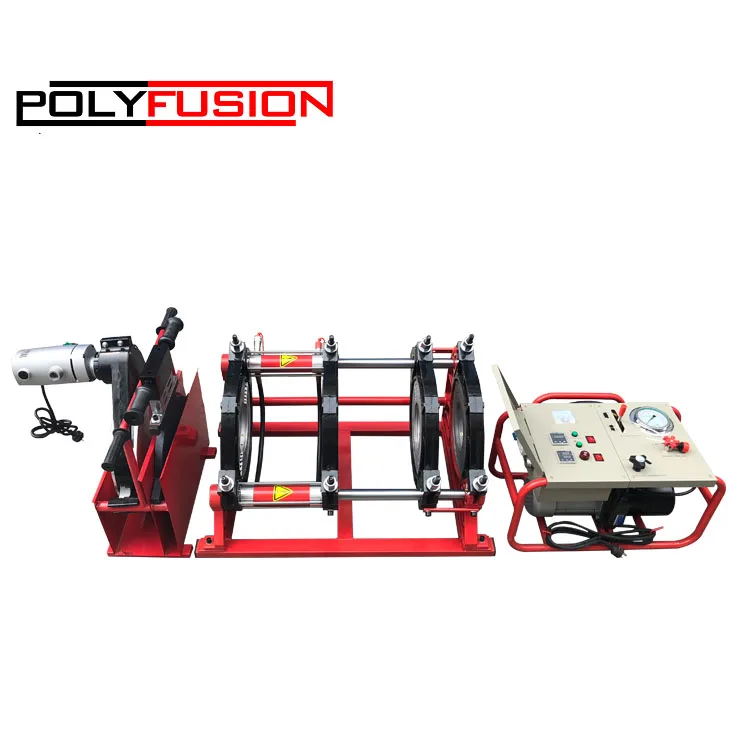

Consists of Planning Tool, Heating Plate, Basic Frame, Hydraulic Unit and Support.

90-315mm Hydraulic Butt Poly PPR Fusion Plastic Pipe Sheet Welding Equipment Welder Machine
Feature:1. Removable PTFE coated heating plate with separate temperature control system.
2. Electric Planning Tool with reversible double cutting edge blades.
3. Hydraulic Unit provides welding machine with compressing power.
4. Be made of Aluminum material.
5. Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the exact time and temperature.

Type

PF315

Materials

PE, PP, PPR, PVDF

Welding range of diameter

90 110 125 140 160 180 200 225 250 280 315mm

Environment temp.

-5~45℃

Power supply

~220V±10 %,50 Hz

Total power

5.35 KW

Include:Heating plate

2.8 KW

Trimmer

1.8 KW

Hydraulic unit

0.75 KW

Dielectric resistance

>1MΩ

Max. Pressure

6.3 MPA

Max. Temperature of heating plate

270℃

Difference in surface temperature of heating plate

±5℃

Package Volume

1.0CBM(2 plywood cases)

Gross Weight

230kg

 90-315mm Hydraulic Butt Poly PPR Fusion Plastic Pipe Sheet Welding Equipment Welder Machine

Please note: This shipping cost is negotiable. Please confirm the specific shipping cost with us when ordering.





1. Temperature Controller,

2. Timer: quality assurance, CE certification, (Sole) brand.

3. Digital Voltmeter: high measurement accuracy, digital display

4. Reversing Valve,

5. Pressure Regulating Valve,

6. Pressure Relief Valve ,90-315mm Hydraulic Butt Poly PPR Fusion Plastic Pipe Sheet Welding Equipment Welder Machine

7. Pressure Maintaining Valve are all CE certified, with high stability and long service life;

8. Pressure Gauge: sustainable pressure holding, sturdy and durable, good performance, pressure 0-16MPa, far exceeds the range of others (0-10MPa);

9. Oil Circuit Module: the material is aluminum, corrosion resistant, good circulation, light weight and long service life

10. Aluminum Shell Pure & Copper Motor: internal pure copper coil, energy-saving and durable, good stability, the shell is made of aluminum, impact resistant;

11.Power Switch:Using the high quality switch of Delixi brand, the workmanship and performance are good, and the product quality meets European standards;

12.Data Logger: The hydraulic machine can be connected to the data logger. It is completely researched  and manufactured in Thailand and exported to all the world, which keeps our data logger have the highest quality and best service in the same industry.

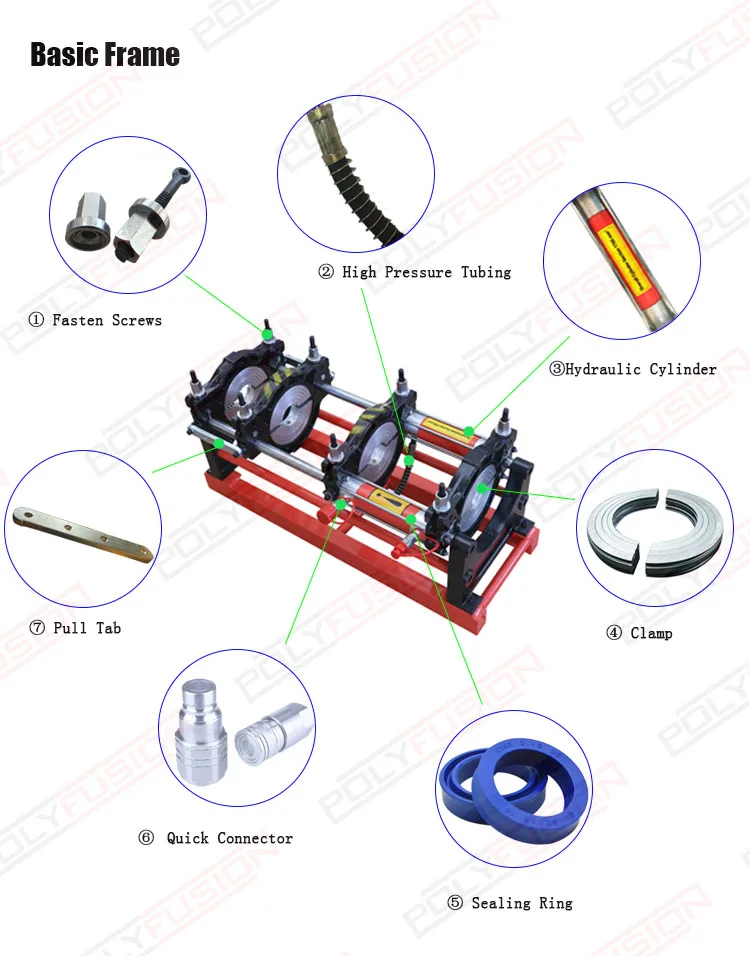

1. Fasten Screws: aluminum alloy, corrosion-resistant, belonging to consumables (give 2 for free)

2. High-pressure Tubing: high-quality material, oil-resistant and high-temperature resistant, anti-aging, soft and flexible, weather resistant, not hard in winter, external sleeve has a telescopic spring to protect it

3. Hydraulic Cylinder: aluminum alloy material, anti-oxidation, anti-corrosion, can withstand high pressure, with warning signs, use safety

4. Clamp: 4 cm clamp, aluminum alloy material, anti-corrosion, long service life, stable fastening, precision grinding, positioning pipe is accurate, easy to operate, clamps can be disassembled to handle different specifications of pipe fittings

5. Sealing Ring: durable, quality guaranteed, good sealing, fine polishing, smooth surface, no burrs, accurate size.90-315mm Hydraulic Butt Poly PPR Fusion Plastic Pipe Sheet Welding Equipment Welder Machine

6. Quick Connector: CE certification, using flat type, good sealing( Others use notched joints, easy to leak oil), insulating material, use safety;

7. Pull Tab: thick, chrome-plated, no rust, improve stability





1. Rubber Handle: Made of high quality rubber material (others rubber handles are hard and easy to break)

2. Temperature Sensor: Wuxi Sole temperature sensor (others are thinner and more susceptible to damage);

3. Heating Element: Jiangsu Brand, long service life

4. Teflon Coating: imported Japanese Daikin Brand (Teflon)

5. Special Treatment Screws: anti-corrosion

6. Socket Connector: Brand: Hualun. High-quality material, insulation and flame retardant, CE certification, can quickly connect the interface (others use the connector which internal plug is threaded, can not be quickly connected, and is easy to damage)





1. Blade: Carbon steel, strong and durable, double-edged edge, sharp blade, flattened pipe, and give a pair of blades for free

2. Trimmer Plate: The trimmer plate is made of aluminum, by die casting, the surface becomes smooth, durable and anti-corrosion.

3. Die Casting Handle: Through the overall die casting, the handle is integrated with the basic frame and is more sturdy.90-315mm Hydraulic Butt Poly PPR Fusion Plastic Pipe Sheet Welding Equipment Welder Machine

4. Pure Copper Motor: pure copper material(others are made of aluminum, easy to be burnt ),the outer casing is made of aluminum, impact resistant.





1. Copper  Core Cable : High quality copper core cable, low resistivity, good ductility and long service life;

2. Socket Connector : Brand: Hualun. High-quality material, insulation and flame retardant ,CE certification , can quickly connect the interface (others use the connector which internal plug is threaded , can not be quickly connected , and is easy to damage)

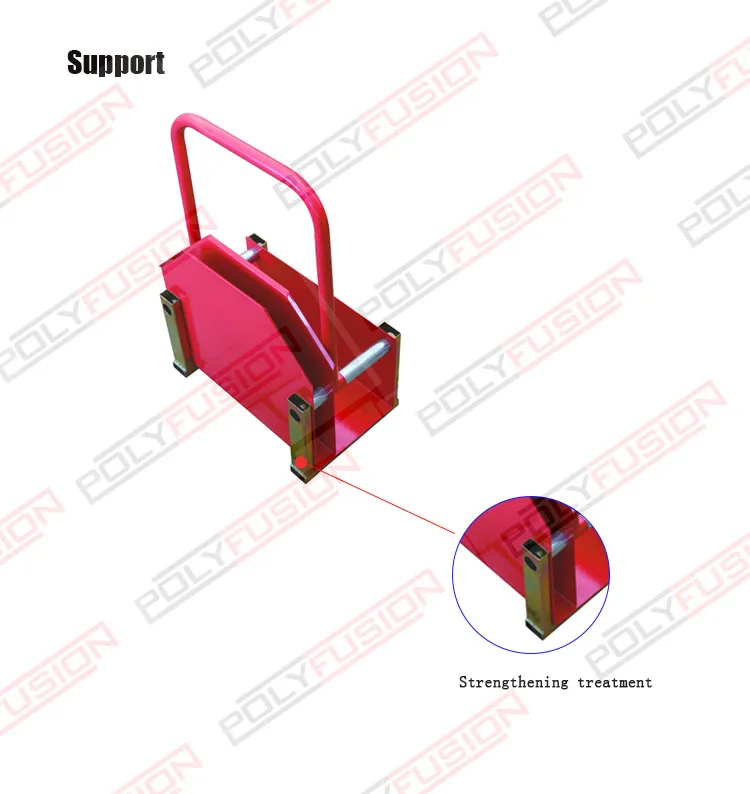

Strengthening Treatment: The support yeinforced with metal bracket is not easy to deform and durable.



QINGDAO POLYFUSION MACHINERY CO.,LTD. is a professional manufacturer, trader in China.Years of production and export experience, we can supply the best quality machines to all the customers.

Our products including: Hydraulic Butt Fusion MachinesManual Butt Fusion Machines,Electrofusion Welding MachinesSocket Fusion Welding MachinesWorkshop Fitting Welding MachinesPlastic Sheet Butt Welding/Rolling/Bending MachineHDPE FittingsElectrofusion Fittings, ect.

Customers’ biggest benefit is our goal, and the quality of machine is the life of our company. With many years of growth, we have our best partners in the world.

We have the certificate of ISO and CE approval. This ensures our machines have the highest quality, best service and reliability warranty.
