diesel powered 40 ton mini container crane portable containers lifting gantry cranes

Supplier: Taian Wecan Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Matt Wang
Price: $24000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Span:	3680mm;	Application:	container lifting;
After-sales Service Provided:	Overseas third-party support available;	Place of Origin:	Shandong China;
engine model:	China 490BPG;	Color:	optional;
Rated Loading Capacity:	40000kg;	Usage:	lifting and travel the container;
Keywords:	container crane;	Power Source:	diesel;
Condition:	New;	Max. Lifting Load:	40000kg;
Packaging Detail:	normal export package;	Supply Ability:	50 Unit/Units per Month;
Max. Lifting Height:	1980mm;	total weight:	9300kg;
Rated Lifting Moment:	0.03m/s;	Port:	Qingdao Port;
power:	40KW;	Feature:	Gantry Crane;
Payment Terms:	L/C,D/A,D/P,Western Union,MoneyGram;	Certification:	CE ISO9001;
mian feature:	lifting 20 ton container could move;	overall width:	2550mm;
overall length:	4900mm;	Brand Name:	WECAN;

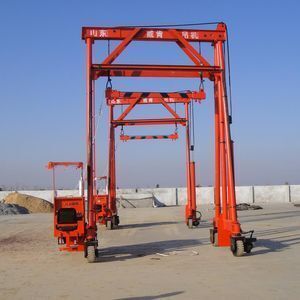

40 ton mini container crane portable containers lifting gantry cranes

JD400 container crane is a kind of lowest work cost crane of container,special suit for container platform. This crane adopt multicylinder diesel engine for power source with low noise and shake. Lifting & travel are hydraulic system; travel is driven by hydraulic motor. Lifting adopt the cylinder with a diameter of 200mm, the lifting capacity is great and the system hydraulic pressure is low; lifting & dropping are reposefully and safely, the handling efficiency is great. The two main parts are independent movable mast with two-wheel driven and four-wheel steering, can rotate 90°most, could steer and translation of any angle. The turning radius is small, so easy to operate, suit hanging of many kind of containers. The crane should work on smooth & hard field, it is superior in quality and moderate in price.

Specifications

specification of 40 ton diesel container crane

Brand		WECAN
1	Model		JD400
2	Rated capacity	kg	40tons
3	Overall length	mm	4900
4	Overall width	mm	2550
5	Overall height	mm	6500
6	Max. Lifting height	mm	1980
7	Max. Lifting Speed	m/s	0.03
8	Total weight	kg	9300
9	Engine model		China 490BPG engine
10	Power	kw	40
11	Rated speed	rpm	2650
12	Displacement	L	2.67
13	No. of cylinder		4
14	Max torque	n*m	≥148
15	Rotate speed	r/min	1800-1900
16	Max travel speed	km/h	1.5
17	Diameter of lifting cylinder	mm	203
18	Diameter of steering cylinder	mm	75
19	Torque of hydraulic motor	N*m	949
20	Rotate of hydraulic motor	r/min	6-400
21	Diameter of drive wheel	mm	450
22	Min under-clearance	mm	75

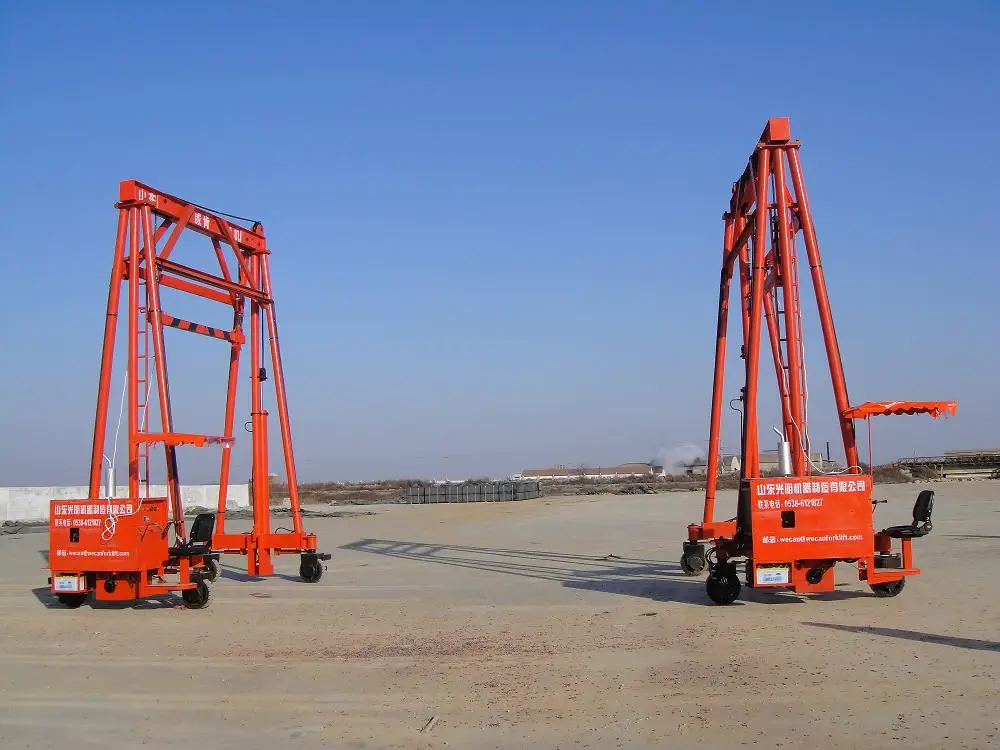

Product Overviews

overviews of 40 ton diesel container crane

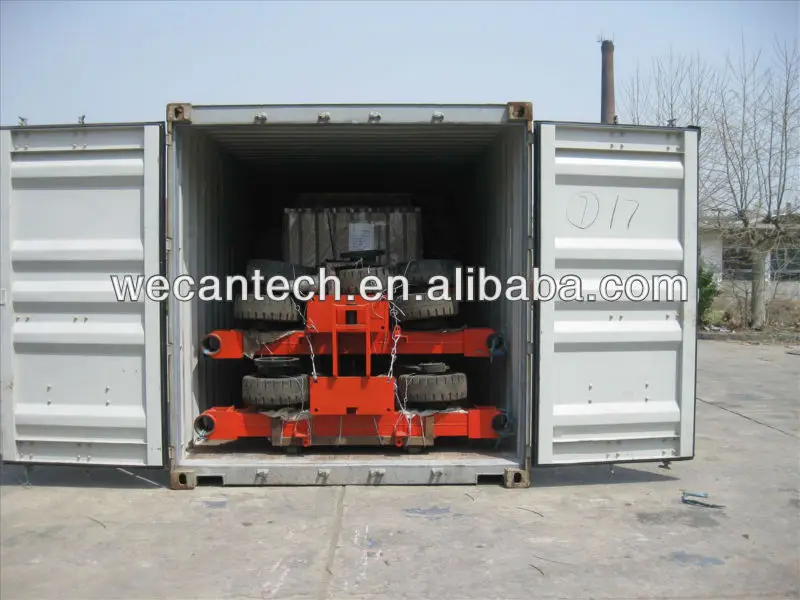

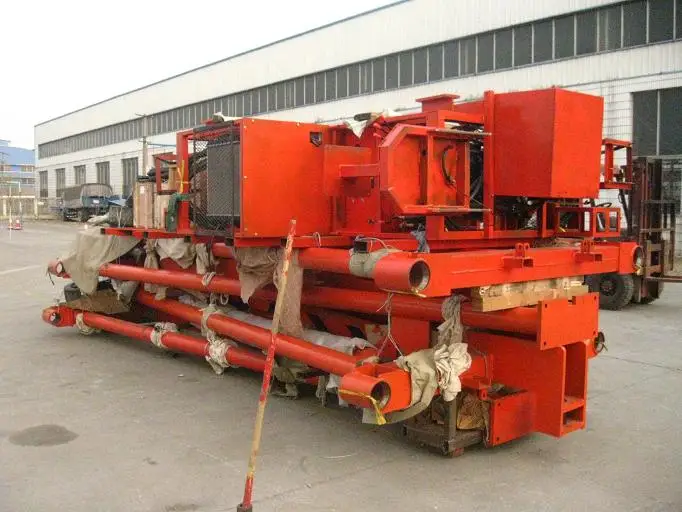

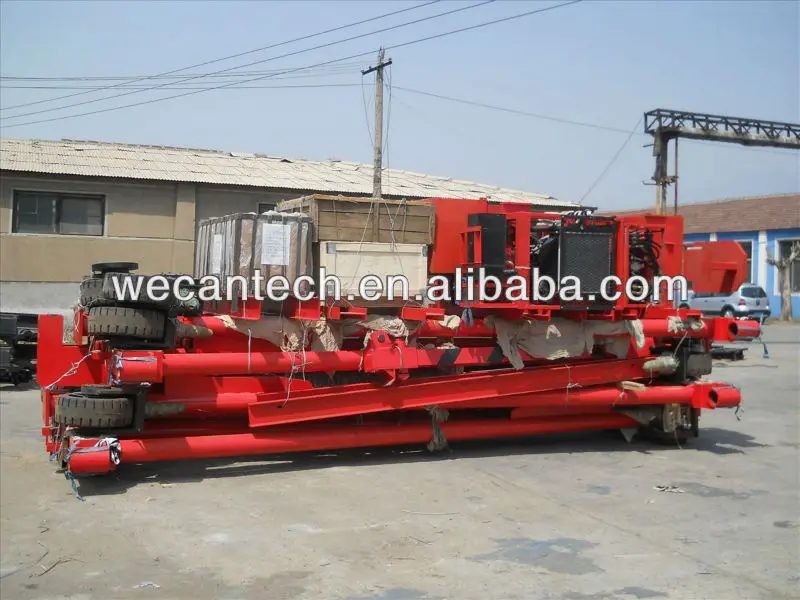

Packaging & Shipping

packaging and shipping of 40 ton diesel container crane

Certifications

Company Information

SHANDONG WECAN TECHNOLOGY CO., LTD. which was called SHANDONG GUANGMING MACHINERY CO., LTD. has become a private enterprise by the recombination of No.9347 military enterprise. Our company is located in Cao County, Heze City which is the hometown of peony flowers, covering an area of more than 300 acres. With the accumulation of military technology for 40 years, our company owns the ability and quality of manufacturing, like the machining, welding, stamping, coating and precise mould making.

Our company has the advanced computer designing center and outstanding technology-development team, and we also have the independent import and export qualification, ISO9001-2008 Certificates, CE International Quality and Safety Certificates. The main products are forklift, multi-functional skid steer loader, container cranes and all kind of attachments, which are exported to more than 50 countries and areas, such as Untied States, Canada, Brazil, Argentina, Australia, Russia, Ukraine, Algeria, Libya, South Africa, Iran, Thailand, Kazakhstan and so on. With the motto of “Easy Work, Easy Life”, our company has formed the featured operation pattern. Based on the international quality, WECAN forklift and skid loader are becoming better and better, and we will create a great and trustworthy machinery brand in all over the world.
