16mm 5/8" Mounting Hole SPST DC 30V AC 220V 3A Metal Momentary Push Button Switch For Car Boat

Supplier: Yueqing Aibeiken Electric Co., Ltd.
Region: Zhejiang, China
Contact: Ms Felix Gao
Price: $0.90 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Max. Voltage:	250V;	Terminal type:	Screw terminal;
Brand Name:	ABILKEEN;	Connector Customized:	Acceptable;
Enclosure Material:	Aluminum oxidation;	Protection Level:	IP65;
Keywords:	Push Button Switch;	Mounting Hole Size:	16mm;
Place of Origin:	Zhejiang China;	Product Name:	16mm Push Button Switch;
Switch Combination:	1NO normally open;	Package Type:	16mm 5/8" Mounting Hole SPST DC 30V AC 220V 3A Metal Momentary Push Button Switch For Car Boat 1: Neutral packing : plastic bag for goods+ inner box bubble+ inner box +carton 2: Upon customers' request, but the price is different with neutral packing 3: Carton size: 302530 4: 50 pcs/box,10boxes/carton;
Package Preview:	https://sc01.alicdn.com/kf/H4af6b61409474cbbaca319a0af029b48C.jpg_640x640.jpg;	Operation Type:	Momentary ( Reset );
Max. Current:	3A;	Selling Units:	Single item;
Model Number:	IB16S-P10J BLACK;	Switch rating:	2A 36VDC / 3A 250VAC;
Head Type:	Flat head;	Single gross weight:	0.025 KG;
Single package size:	5X5X5 cm;

16mm 5/8" Mounting Hole SPST DC 30V AC 220V 3A Metal Momentary Push Button Switch For Car Boat

· Momentary Type: Push & Hold - ON, Release – OFF

· Mounting Hole Size: Φ16mm; Switch Rating: 3A/30VDC, 3A220VAC; Switch Combination: 1NO

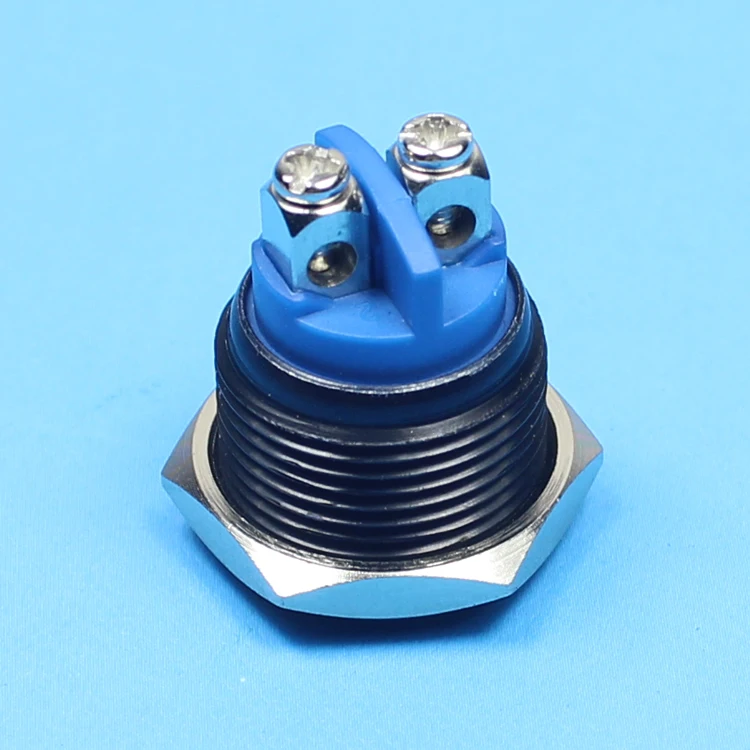

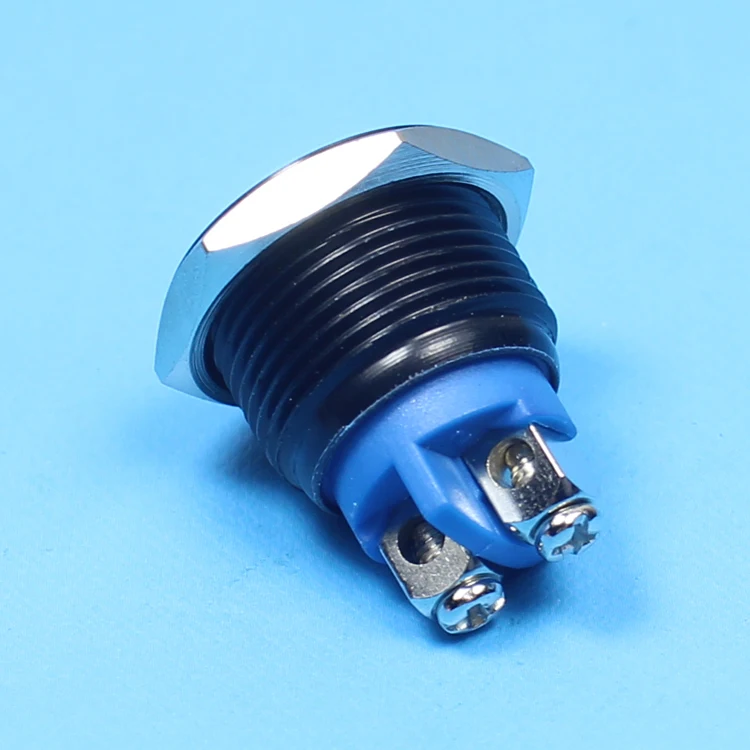

· Easy to Install: Screw clamp type terminals, don’t need to solder

· IP67 Waterproof & IK08 Protection: Rustproof, can be used in wet or dusty environment

· Universal fit all 12V Car SUV truck conversion Van RV Boat Yacht. Great for electromagnetic starter, relay, Horn Button Switch, PC Power Switch or any circuit controls

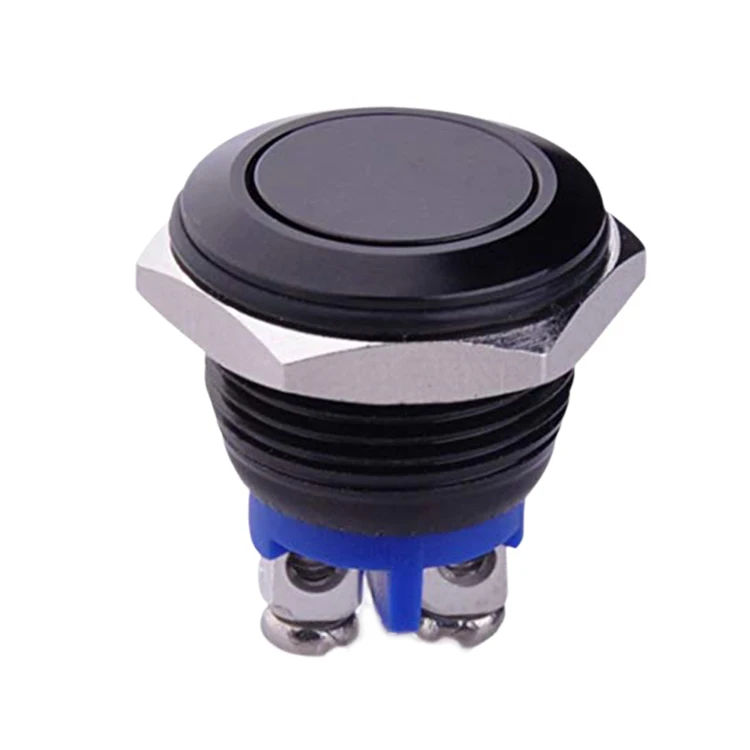

IB16S Momentary Push Button Switch

What's the Pushbutton Switch:

This is a perfect choice if you are in need of a rugged push button! These metal push buttons are a very tough, small, panel-mount momentary switch. It is a SPST with 16mm threading and 1mm pitch. Overall length (including leads) is 0.8" and has screw-type terminals for connection. These momentary buttons are rated up to 3A and 250VAC.

What's the Momentary Switch:

Momentary switch, normally open, remain in ON state as long as being pressed.

These switches come with a rubber O-ring which makes them splash resistant but they can not be submerged in the water.

What's the Momentary Switch Used for:

Most often momentary switches are used for circuits control in electromagnetic starter;Doorbell button, stuff like relay, Horn Button Switch, PC Power Switch or any circuit controls.

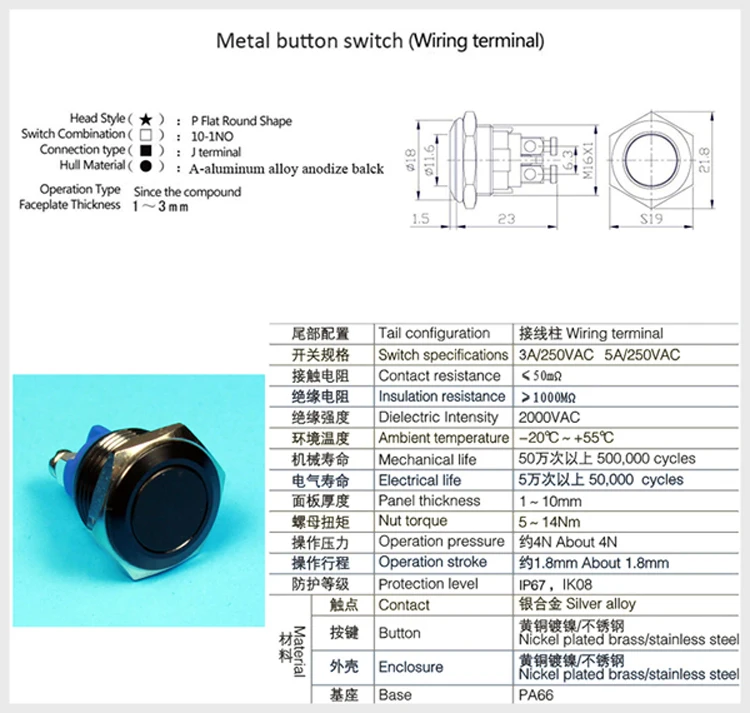

Features:
Drill hole diameter: Φ16mm (5/8")
Head diameter: 18mm (0.7")
Depth include contacts: 20mm (0.8")
Switch rating: 3A/250VAC
Switch contacts: 1NO normally open
Operation Type: Momentary
Head shape: Flat Round
Body material: Aluminum Oxidation
Protection level: IP65, IK08

Package Include:
1 X Push button switch

Product Description

Product Name	Push Button Switch
Model	IB16S-P10J BLACK
Mounting Hole	16mm
Operation Type	Reset (Momentary)
Switch Combination	1NO normally open
Head Type	Flat head
Terminal type	2 Screw Terminals
Housing Color	Black (or Red,Yellow,Gold,Blue,Green)
Protection level	IP65, IK08
Enclosure Material	Aluminum Oxidation housing
Delivery Days	1-7 days
Contact Resistance	50 mΩ max
Insulation Resistance	1000MΩ Min
Dielectric Intensity	2000VAC
Operating Temperature	-20°C ~+55°C
Customized colored housing	Acceptable and with fast shipping
Accessories	Nut, Rubber Gasket
What You Get	1X Push button switch: 12mm, Black housing, Momentary
