Motorized Replaceable Seat Soft Seal Double Eccentricity Butterfly Valve

Click here to contact

Product details

Temperature of Media:	Normal Temperature;	Application:	General;
Structure:	Butterfly;	Motorized Butterfly Valve:	Replaceable Seat Butterfly Valve;
Standard or Nonstandard:	Standard;	Packaging Detail:	Motorized Replaceable Seat Soft Seal Double Eccentricity Butterfly Valve (1) Each set into one bubble plastic bag (2) Servel sets into the Standard Export Plywood case HS code : 8481804090;
Material:	Casting;	Media:	Base;
Power:	Manual;	Port Size:	DN300-DN3600;
Delivery Detail:	5~30 Days after receive the PO of Butterfly Valve;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union;
type:	motorized replaceable seat double eccentricity butterfly valve;	Connection:	Flange;
Actuator:	Motorized;	Brand Name:	gs;
Soft Seal Butterfly Valve:	Double Eccentricity Butterfly Valve;	Product name:	Replaceable Seat Soft Seal Double Eccentricity Butterfly Valve;
Body material:	ductile iron;	Port:	Shanghai/Tianjin/Qingdao/Manzhouli;
Butterfly Valve:	Eccentricity Butterfly Valve;	Pressure:	PN10-PN16;
Model Number:	D943X;	Pressure:	Low Pressure;
Place of Origin:	Henan China (Mainland);	Disc material:	Ductile Iron;
Supply Ability:	5000 Piece/Pieces per Month Replaceable Seat Soft Seal Double Eccentricity Butterfly Valve;

Product Description

1.Features:

(1) 90° movement for full open/close position.

(2) Excellent control characteristics.Tight shut-off even after innumerable operations.

(3) Installation cost considerably reduced because of very low weight and compact design.

(4) Longer life and reliable service with minimum component wear.

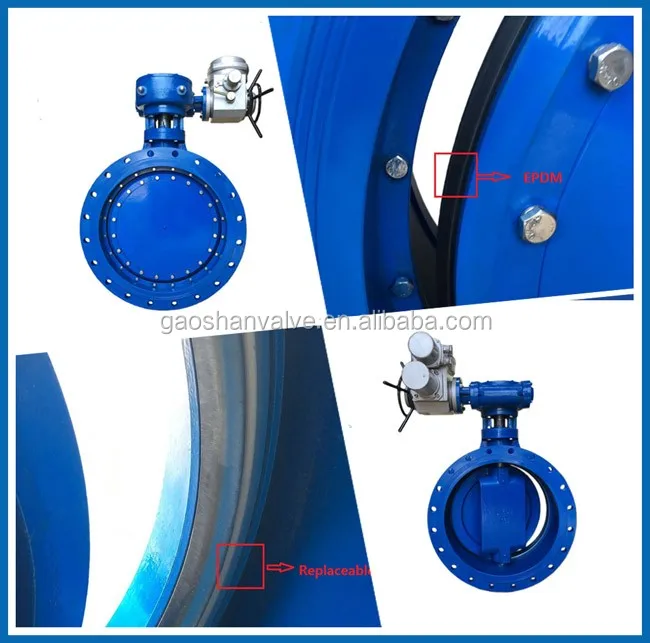

(5) Renewable seats. No supplementary gasket required with the adjacent pipework.

(6) Body & Stem totally protected from service fluid.

2.Technical Data:

(1) Nominal Diameter DN(mm)300(12")~3600(144’’)

(2) Nominal Pressure PN(MPa): 1.0~1.6

(3) Testing Pressure PN(MPa): Shell: 1.5~2.4 Sealing: 1.1~1.76

(4) Working Temperature:-30~+130°C

3.Material could be:
