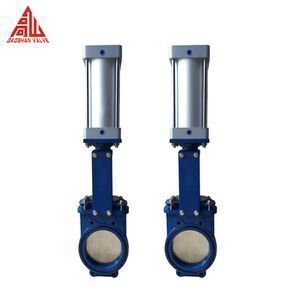

Ductile Iron Pneumatic Knife Gate Valve /Slurry Knife Gate Valve

Supplier: Zhengzhou Gaoshan Flange Valve Co., Ltd.
Region: Henan, China
Contact: Ms doris tang
Price: $15.00 /set
Min. Order: 1 set

Click here to contact

Product details

Temperature of Media:	Medium Temperature;	Port:	Shanghai/Tianjin/Qingdao/Manzhouli;
Product name:	Ductile Iron Pneumatic Knife Gate Valve /Slurry Knife Gate Valve;	Structure:	Gate;
Pneumatic actuator:	Knife Gate Valve;	Pressure:	PN10-PN16 knife gate valve;
Type:	wafer type knife gate valve;	Place of Origin:	Henan China (Mainland);
Media:	Base;	Port Size:	DN50-DN1200;
Slurry Knife Gate Valve:	Ductile Iron Knife Gate Valve;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Pressure:	Low Pressure;	Body material:	Ductile Iron;
Supply Ability:	8000 Set/Sets per Month Ductile Iron Pneumatic Knife Gate Valve /Slurry Knife Gate Valve;	Actuator:	Pneumatic actuator;
Standard or Nonstandard:	Standard;	Packaging Detail:	Ductile Iron Pneumatic Knife Gate Valve /Slurry Knife Gate Valve (1) Each set into one bubble plastic bag (2) Servel sets into the Standard Export Plywood case HS code : 8481804090;
Power:	Pneumatic;	Delivery Detail:	5-30days after recive the PO of knife gate valve;
Brand Name:	gs;	Standard:	DIN/ANSI/GOST standard knife gate valve;
Material:	Casting;	Model Number:	PZ673X;
Disc material:	Stainless Steel 304;	Slurry Valve:	Pneumatic Knife Gate Valve;
Application:	General;

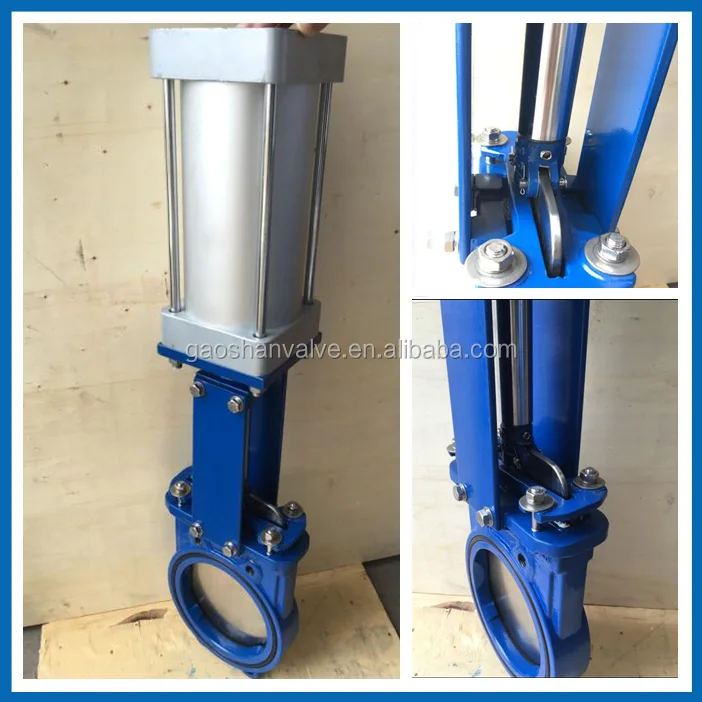

Ductile Iron Pneumatic Knife Gate Valve /Slurry Knife Gate Valve

Product Description

1.Technical Data:

Nominal Diameter DN(mm):	50(2’’)~1200(48’’)
Nominal Pressure PN(MPa):	0.6~1.6 (class150)
Testing Pressure Shell PN(MPa):	1.5~2.4
Testing Pressure Sealing PN(MPa):	1.1~1.76
Seal type	hard / soft (EPDM,NBR and polyurethane)
Leakage: hard seal:	Level D(liquid 0.1xDNmm);soft seal: Level A (zero leakage)

2.Main Parts Materials :

Part	Material
Body	Ductile iron
Seal Ring	NBR
Knife	Stainless steel 304
Packing	PTFE
Yoke	A3
Gland	WCB , ZL103
Stem Nut	Brass
Stem	2Cr13
Bearing	ZChSnSb10-6

3.Application:

Gold mine power,ore tailing,paper or wood pilp,fibers,dust,chemical treatment sewage,sedimentation tanks,ores,slag,asphalt,bin outlets,fruit,grain,grout,waste water from slaughterhouse,pneumatic transportation pipelines or beer brewage media.

water supply and draininage or deslagging of power plants(applicable for high temperature≤540°c and superhigh temputerature ≤ 900°c.

4.Product charateristics:

It's characterized by its compact design,being space-effective,low price,easy installation, complete protection from abrasion and seizure,user-friendly maintenance and operation,long service life and free actuator options.

Packaging & Shipping

1.Packing:plywood cases or according to the customers' requirements

2.Shipment:Within 20days after your po.

Our Services

1.Best price with high quality,

2.18 months Guarantee Period.

3.The standard could be ANSI,DIN,GB,ISO,GOST,BS and so on.
