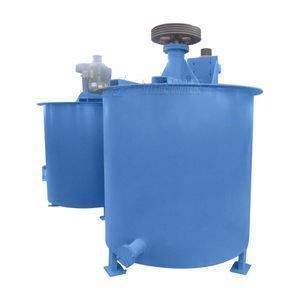

Industrial Stone Cement Mixer,Copper Ore Processing Mixing Barrel/Mixing Tank

Supplier: The Nile Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Lily Li
Price: $2150.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	Standard export container;	Place of Origin:	Henan China;
Payment Terms:	L/C,T/T;	Condition:	New;
Showroom Location:	Kenya;	Height demensions(mm):	1665;
Warranty:	1.5 years;	Chute diameter(mm):	1000;
Applicable Industries:	Manufacturing Plant,Energy & Mining;	Weight(kg):	685;
Max length demensions(mm):	1300;	Chute height(mm):	1000;
After-sales Service Provided:	Overseas third-party support available;	Supply Ability:	400 Set/Sets per Month;
Port:	Qingdao Port;	Effective Volume(m3):	0.58;
Factory visit:	Welcome;	Motor model:	Y100L-6;
Local Service Location:	Kenya;	Stirre diameter(mm):	240;
Brand Name:	The Nile CO.,LTD;	Stirre rotation speed(r/min):	530;

Industrial Stone Cement Mixer,Copper Ore Processing Mixing Barrel/Mixing Tank

Product Description

The agitation tank is used to mix the pulp with chemicals,preparing for floatation separation.The agitation tank is mainly applied in slurry stirring before flotation,chemical and construction industry,cyanide chemical plant,sewage treatment plant,and coal plant, etc.

Mining barrel working principle

When the machine works,under the rotation of the impeller,the ore pulp and the reagents will have big and small circulation,and they will be evenly mixed,and the mixed suspension liquid will be discharged from the overflow port.

Product Features

1.The cylinder is lined with XKJ wear-resistant rubber with strong resistance to wear and corrosion;

2.Strong agitation capability;

3.Stable operation,convenient maintenance;

4.Energy saving.

Technical Parameters

Model NO.	Chute size(mm)		Effective volume (m3)	Impeller Diameter (MM)	Impeller Speed (r/min)	Motor model	Motor power (kw)	Dimension(mm)
Model NO.	Diameter	Height	Effective volume (m3)	Impeller Diameter (MM)	Impeller Speed (r/min)	Motor model	Motor power (kw)	Height	Length
NLH1000	1000	1000	0.58	240	530	Y100L-6	1.5	1300	685
NLH1500	1500	1500	2.2	400	320	Y132S-6	3	1690	861
NLH2000	2000	2000	5.6	550	230	Y132M2-6	5.5	2381	1240
NLH2500	2500	2500	11.2	630	230	Y160L-6	11	2881	3462
NLH3000	3000	3000	19.1	700	210	Y225S-8	18.5	3266	4296

Packaging & Shipping

A standard package in wooden boxes or containers.

Successful Case

Company Information

The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machines,drying and calcinating as well as beneficiation equipment,fine sand recycling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry, wharf,granary,chemical industry.Our products have been spread all over China,and also exported to European,American,Asian,African countries and enjoyed great popularity among our customers.

Our company owns an experienced and skilled sales and service team which compose a perfect service network.We will send the professional engineers to the installation sites and provide guidance for the installation,commissioning and initial run as well as planning administration of the equipments after purchase.

Our Services

We can not only provide good quality sand making machine, but also provide the best service for our clients. The series of professional technology services will make you have an excellent product experience.

Pre-sale services:

(1) The advice of model choice.
(2) Design and manufacture machines according to customer's special requirements
(3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program

After-sale services :

(1) Arrange technicians to go to the site to guide installation
(2) If your machine is out of warranty period, you can go to the Nile's overseas office to buy spare parts.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.

FAQ

Q1: Are you factory or trade company?
A1: We are factory.

Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.

Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will guide the installation and commissioning as well as the initial production at

Q4: How about the wear parts supply?
A4: We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our technicians to your place and you are therefore, responsible for all thecost involved.

Q5: What about the payment method?

A5:T/T, L/C Paypal is available

Q6: What about after-sale service?
A6:12 months warranty for all kinds of products.
