Coal vibrating hopper feeder GZD Henan Hongji 120-450 Ton/Hour

Supplier: Henan Hongji Mine Machinery Co., Ltd.
Region: Henan, China
Contact: Ms yu Amanda
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Building Material Shops,Construction works ,Energy & Mining;	Place of Origin:	China;
Max feeding size:	650mm;	Weight:	4-45KG;
After-sales Service Provided:	Engineers available to service machinery overseas;	Application:	Ore;
Certificate:	IQNET;	Packaging Detail:	Export standard,nude packing in 20' container or by bulk carrier,suitable for ocean shipping.;
Application:	Ore,stone,coal;	Warranty:	2 years;
After-sales Service Provided:	Video technical support,Free spare parts,Online support,Field installation, commissioning and training,Field maintenance and repair service;	Condition:	New;
Spare parts:	Supply;	Power Type:	Electric;
Brand Name:	Hongji;	Certification:	CE ISO;
Delivery time:	20 days;	Port:	Shanghai/Qingdao/Tianjin/Ningbo or any port in China;
Motor:	3-15kw;	Standard:	China standard;
Supply Ability:	500 Set/Sets per Month;	Dimension(LWH):	Customer Request;
Testing:	Supply;	Capacity(t/h):	120-450 T/H;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union;

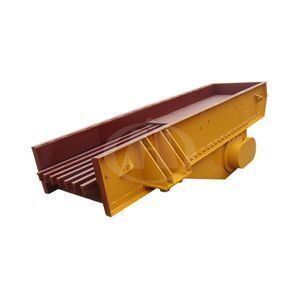

Application of Coal vibrating hopper feeder

HONGJI Vibrating Feeder is a kind of linear direction feeding equipment. It is generally installed in front of the primary crusher, conveys big blocks continuously and evenly while removing the dirt and impurities by screen bars. As necessary equipment, it can effectively control the feeding capacity to match with the capacity of the whole crushing plant. In the Sand-Stone production line, it can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly. It can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.

Coal vibrating hopper feeder Features and Benefits:

a kind of linear direction feeding equipment.
easy to adjust
reliable operation.
easy maintenance.
no pollution
stable and long service life.
suitable for feeding.
provide many models.

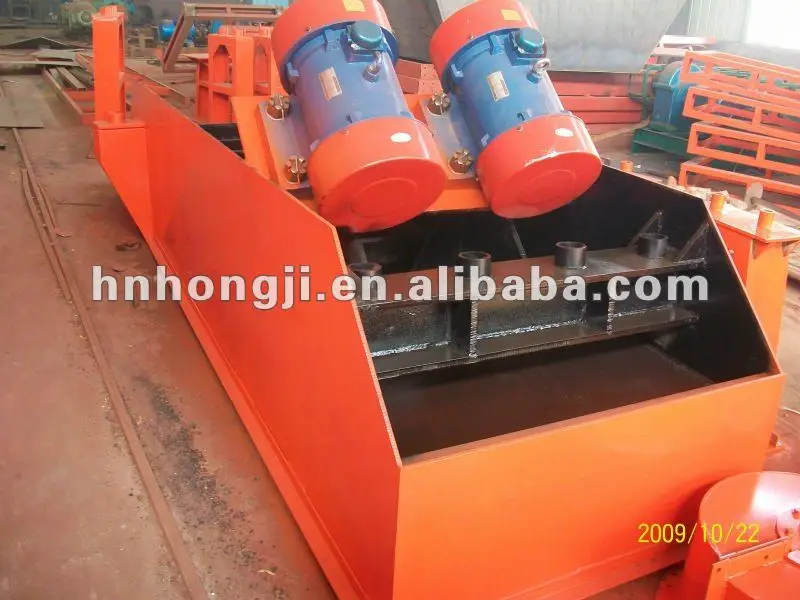

Coal vibrating hopper feeder Working Principle

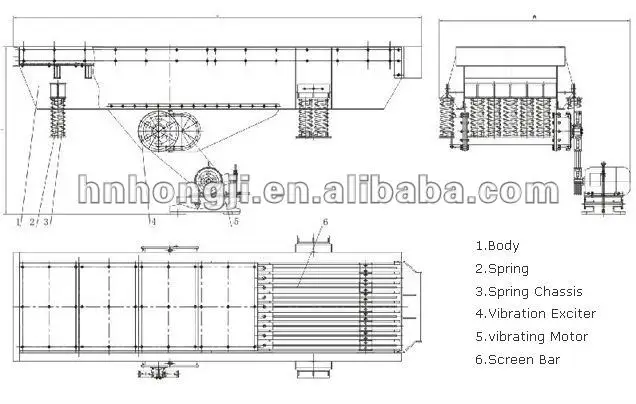

Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vib Coal vibrating hopper feeder rator is made of two fixed eccentric shafts whose gearsare jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to producea linear huge power which forces the feeder to vibrate. Through the vibration,the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the furthercrushing, so screening purpose can be reached.

Specifications of electric coal vibrating feeder

Models	Max Feed-in size(mm)	Capacity (t/h)	Electric Motor Power (KW)	Installation Slope	Weight (kg)	Size of Funnel (mm)	Overall Dimensions L×W×H
GZD-800×3000	400	80-120	1.5×2	5°	3895	850×3000	3110×1800×1600
GZD-960×3800	500	120-210	2.2×2	5°	3980	960×3800	3850×1950×1630
GZD-1100×4200	580	200-430	3.7×2	5°	5570	1100×4200	4400×2050×1660
GZD-1100×4900	580	280-500	5.5×2	5°	6520	1100×4900	5200×2050×1700
GZD-1300×4900	650	450-600	7.5×2	5°	8200	1300×4900	5200×2350×1750
