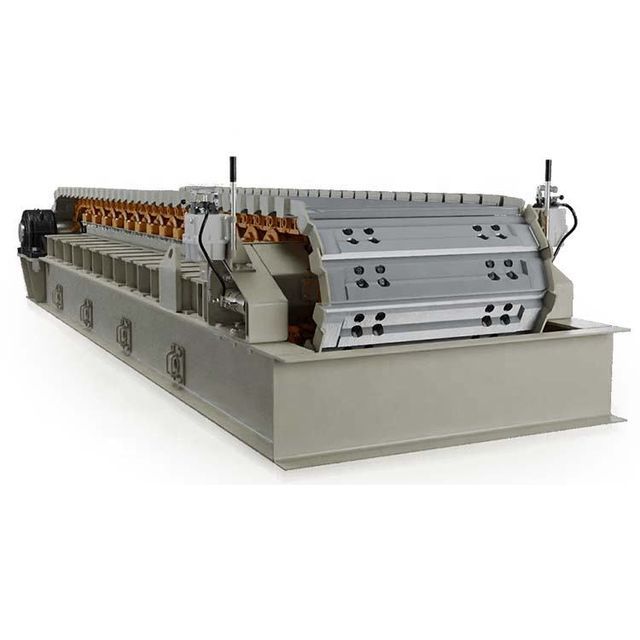

Automatic Heavy Duty Apron Feeder Apron Feeder for Ore Feeding Equipment

Apron feeder is a kind of conveying equipment with chain as the traction part and chain plate as the load-bearing part. It can convey various bulk materials along the horizontal direction or inclined direction (inclination angle less than 25 degrees). Since the load-bearing part and the operating part of the scale conveyor (panel feeder) are made of metal materials, compared with other continuous conveyors, it can convey to the conveyor with larger bulk density, larger size, sharp edges, abrasiveness Strong materials. Therefore, scale conveyors are ideal equipment for conveying sharp, high-temperature, large-volume, and corrosive materials in mining, building materials, metallurgy, coal, and chemical industries.

Features and advantages of automatic heavy-duty apron feeder for ore feeding equipment

1. The traction chain adopts plate chain (light and medium) or tank chain (heavy), with high strength and long service life;
2. The tail adopts a spring spiral tensioning device, which can automatically adjust the tightness of the traction chain;
3. The process layout is flexible, it can be placed on the ground or in a pit, it can be installed horizontally or inclined, and it can also be installed horizontally and inclined on the same machine;
4. Self-contained driving mechanism, the plane occupies a small space and is easy to install.

When the apron feeder is working, the motor and the reducer drive the sprocket of the cogged structure to rotate, so that the traction chain meshed with the sprocket drags the material trough to move forward. Supporting device - the traction chain moves on the thrust wheel, supported by the supporting wheel and the conveying trough, and bears the weight of the material and the running device. The material is pushed into the conveying chute from the storage bin above the tail, and then moves to the outlet of the chute with the shell to be discharged.
