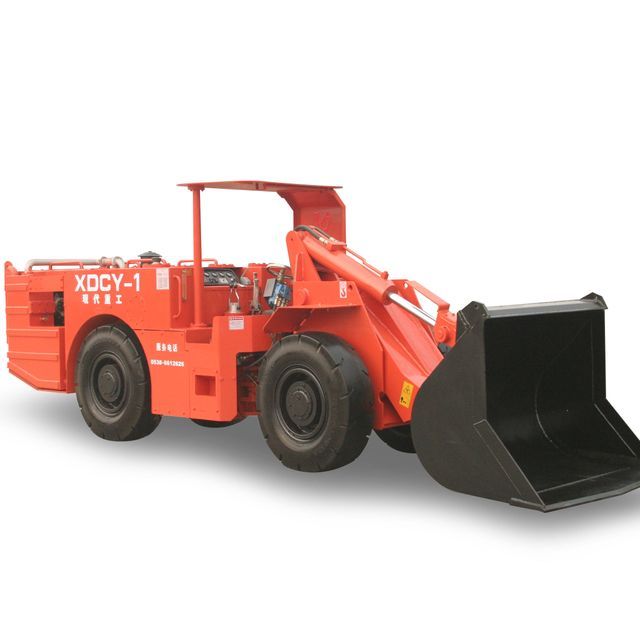

Underground Mining Shovel XDCY-1A Diesel Scraper Mining Equipment

Supplier: Taian Modern Heavy Industries Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Eric Sun
Price: $40000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Packaging Details:	1 set/20GP & 2 sets/40HQ	Certification:	ISO9001CE certification
Supply capacity:	1000 sets per year	engine:	Deutz or YTO
Dimensions (LWH):	571713001950	Origin:	Shandong Province, China
After-sales service provided:	free spare parts	weight:	7000 kg
specified load:	2 tons	payment terms:	L/C, T/T
Power type:	diesel engine	Core component warranty:	1 year
Warranty:	1 year	Showroom location:	Peru, Chile
strength:	66 kW	Mechanical test report:	if
Marketing Type:	2020 New Products	brand:	modern
Local service locations:	Peru, Chile	Video outbound inspection:	if
After Warranty Service:	no service, spare parts	Bucket capacity:	1 cubic meter
Applicable industries:	Energy and Mining	Package preview:
port:	Qingdao or other	Health status:	new
application:	mining	Core components:	engine, gearbox

product description

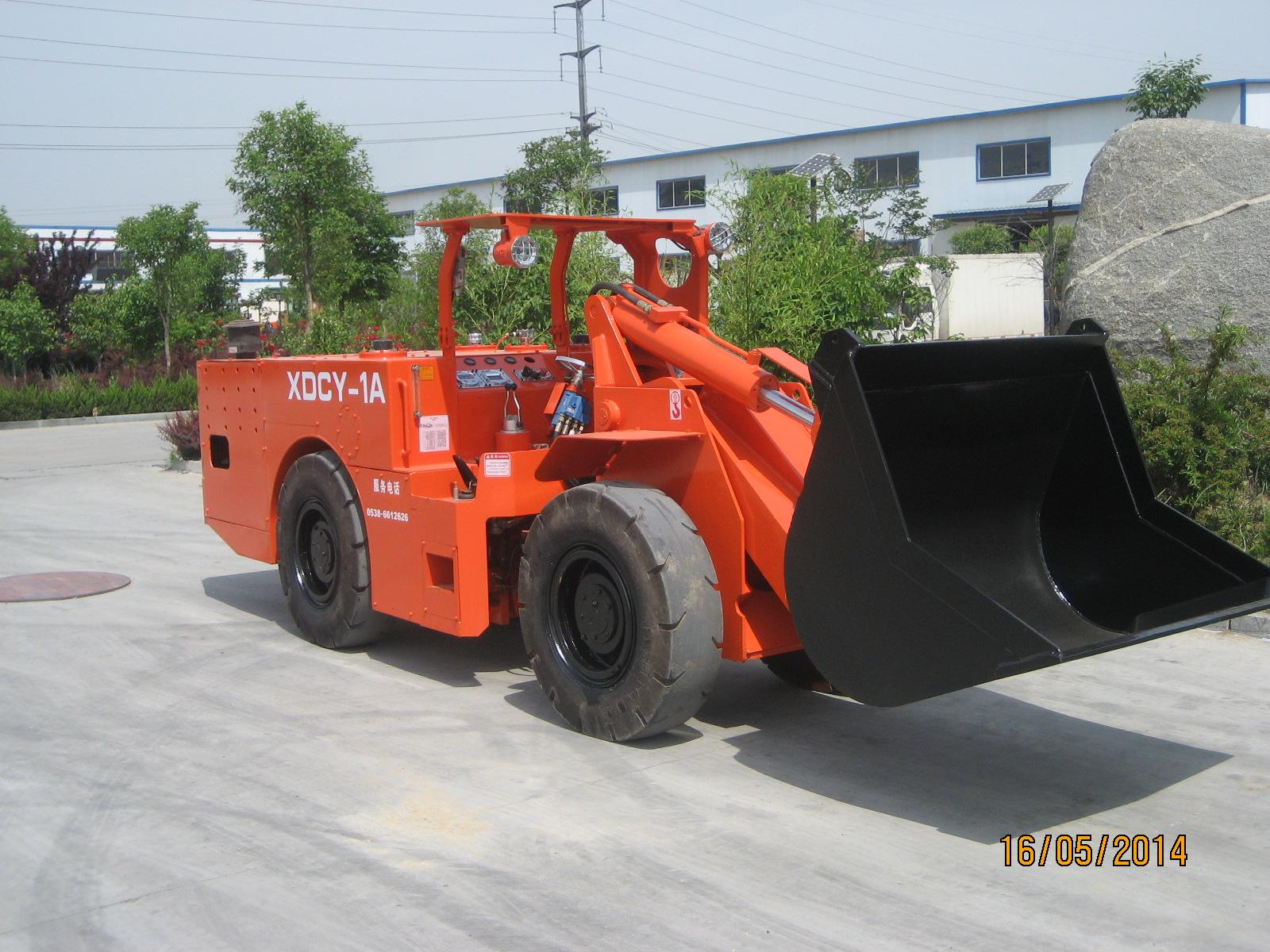

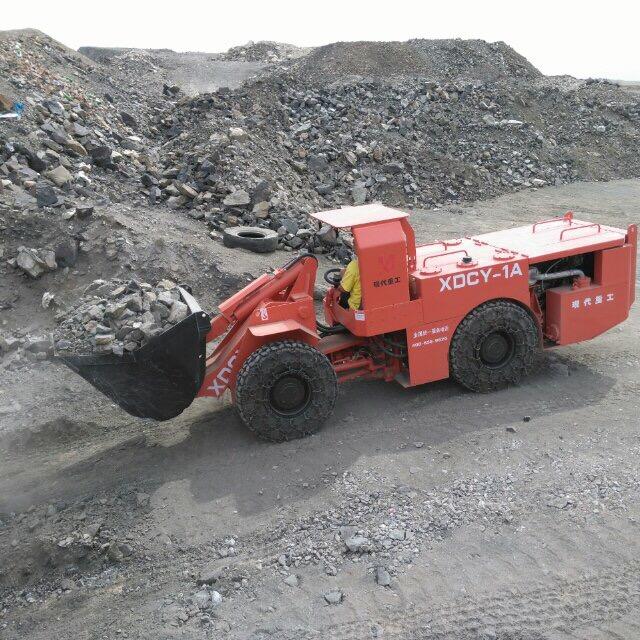

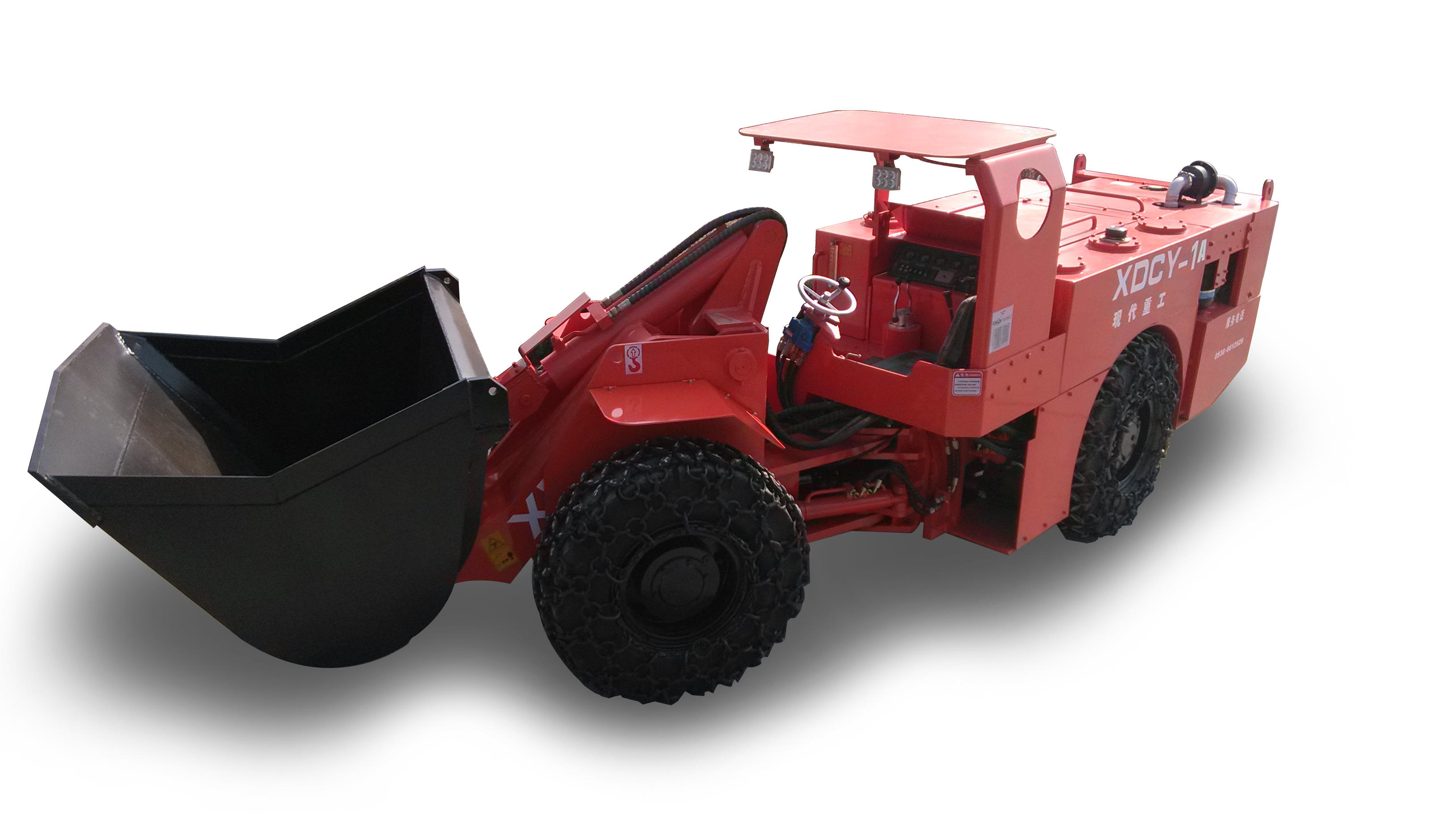

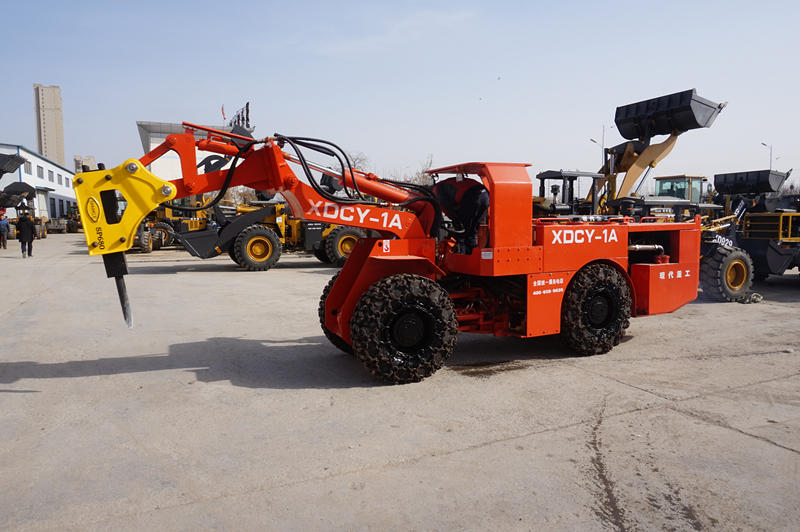

XDCY-1A diesel scraper

1. The power system adopts the turbocharged engine of China's top brand YTO brand, with strong power
Low emission, optional domestic Deutz engine.
2. The rotating structure, hydraulic steering and rear axle adopt leading technology
Compared with the traditional oscillation method, the failure rate is lower and easy to maintain.
3. The walking system adopts hydraulic torque converter and power shift gearbox.
Improve reliability.
4. The operating system adopts pilot control, which makes the operation easier and more efficient
Efficient.
5. The exhaust system is equipped with imported purified water filtration system,
This greatly reduces air pollution.
6. Adopt 10.00-20 puncture-resistant smooth rubber tires.
7. The machine can shovel, load, transport and unload in one operation, with compact structure,
Convenient and efficient mine reclamation, tunnel excavation, road and construction site construction operations
Auxiliary operations such as training and material transportation.

List of functions

Load capacity: 2.0T

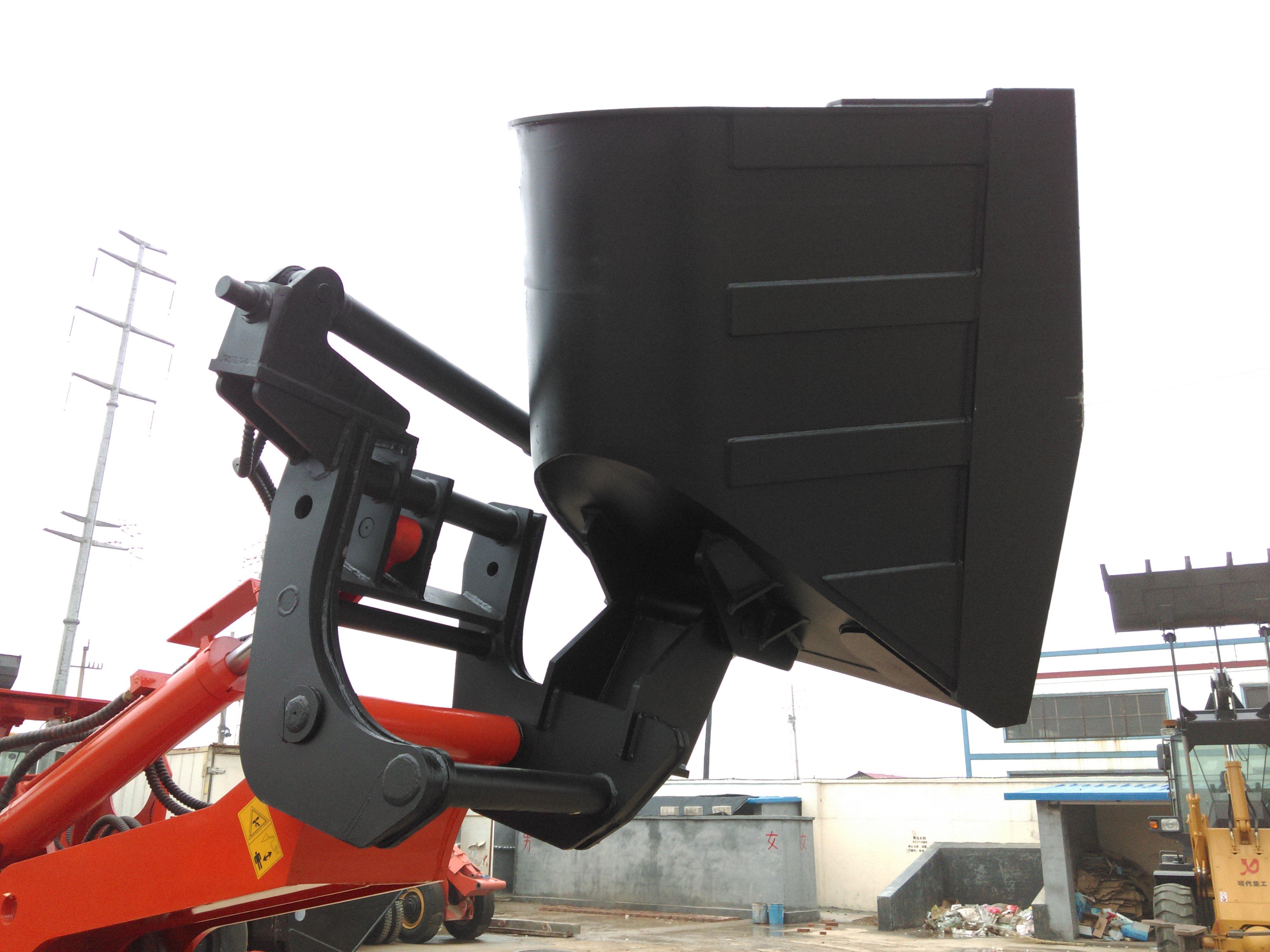

Bucket volume: 1.0 cubic meters

Rated power: 66.2 kW

right elevation

left elevation

Front view

product specification

Model	XDCY-1A
main specifications
Bucket capacity (m3)	1.0/(1.3 yard cubic)
Rated load (t)	2.0
Working weight (t)	7.0
Boom lifting time (s)	≤4
sum of three	≤8
Forward gear speed (km/h)	Ⅰ 0-5.8 Ⅱ 0-9.5
Reverse gear speed (km/h)	Ⅰ 0-5.8 Ⅱ 0-9.5
maximum. Gradeability	16°
aspect
Dimensions (length x width x height mm)	5717×1300×1950
Wheelbase (mm)	2242
wheelbase(mm)	1000
maximum. Discharge height(mm)	1250
Discharge distance (mm)	860
Diesel engines
engine model	YTO LR4A3L-22	Deutz BF4L913
engine type	In-line, water-cooled, 4 stroke, 4 cylinder, direct injection, turbo	In-line, air-cooled, 4 stroke, 4 cylinder, direct injection, naturally aspirated
Rated power (kW)	81	68
Rated speed (rev/min)	2200	2300
Total cylinder displacement (L)	4.33	4.086
startup type	electric start	electric start
transmission system
Torque Converter
Model	Hyundai YJ280
type	single-stage, three-element
gearbox
Model	Hyundai ZL20
type	Fixed intermediate shaft, power shift
Drive axle and tires	Yunyu CY20S2
Main reducer type	Spiral bevel gear, single stage
final reducer type	single stage planet
tire size	10:00-20
Hydraulic system working device
Working pump model	CBG2063
Nominal Displacement(ml/r)	63
Rated pressure (Mpa)	16
Multi-way reversing valve	ZL20
Pressure (Mpa)	number 17
Rated flow(L/min)	100
steering system
type	Load Sensing Hydraulic Steering
Displacement(ml/r)	250
maximum. Input pressure (Mpa)	16
Brake system
Travel brake type	Wet brakes / Sistema de freno mojado
Parking Brake Type	Air Brake / Freno de aire
