TCS-PP Plug and Play cleaning Applicable to various types of robot welding auxiliary clean injection cut Torch cleaning station
- 3000.00 piece
| Weight: | 30kg; | Rated Duty Cycle: | 100%; |
| Weight: | 30kg; | Place of Origin: | Zhejiang China; |
| adapt to the models: | panasonic,ABB,,kuka,Fanuc,YASKAWA,OTC,MOTORMAN==; | Name: | Torch cleaning station; |
| Usage: | Torch cleaning station; | Model Number: | TCS-PP; |
| Certification: | CCC; | After-sales Service Provided: | Overseas service center available; |
| voltage: | DC 24V; | Power consumption: | 4.5W; |
| producer: | china zhejiang wenzhou; | Color: | Blue; |
| Supply Ability: | 1000 Piece/Pieces per Month; | Product name: | TCS-PP; |
| Delivery Detail: | Shipped in 7 days after payment; | Type: | Other; |
| Rated Capacity: | 9 Kw; | Air consumption: | approx. 600 L/Min; |
| Payment Terms: | L/C,T/T,Western Union,MoneyGram,PAYPAL; | Dimensions: | 30*30*55cm; |
| Function: | Torch Cleaning Station; | Packaging Detail: | wooden box for Torch cleaning station; |
| Brand Name: | RSTAR; | Current: | 15A; |
| Port: | SHANGHAI NING BO; | Voltage: | 24V; |

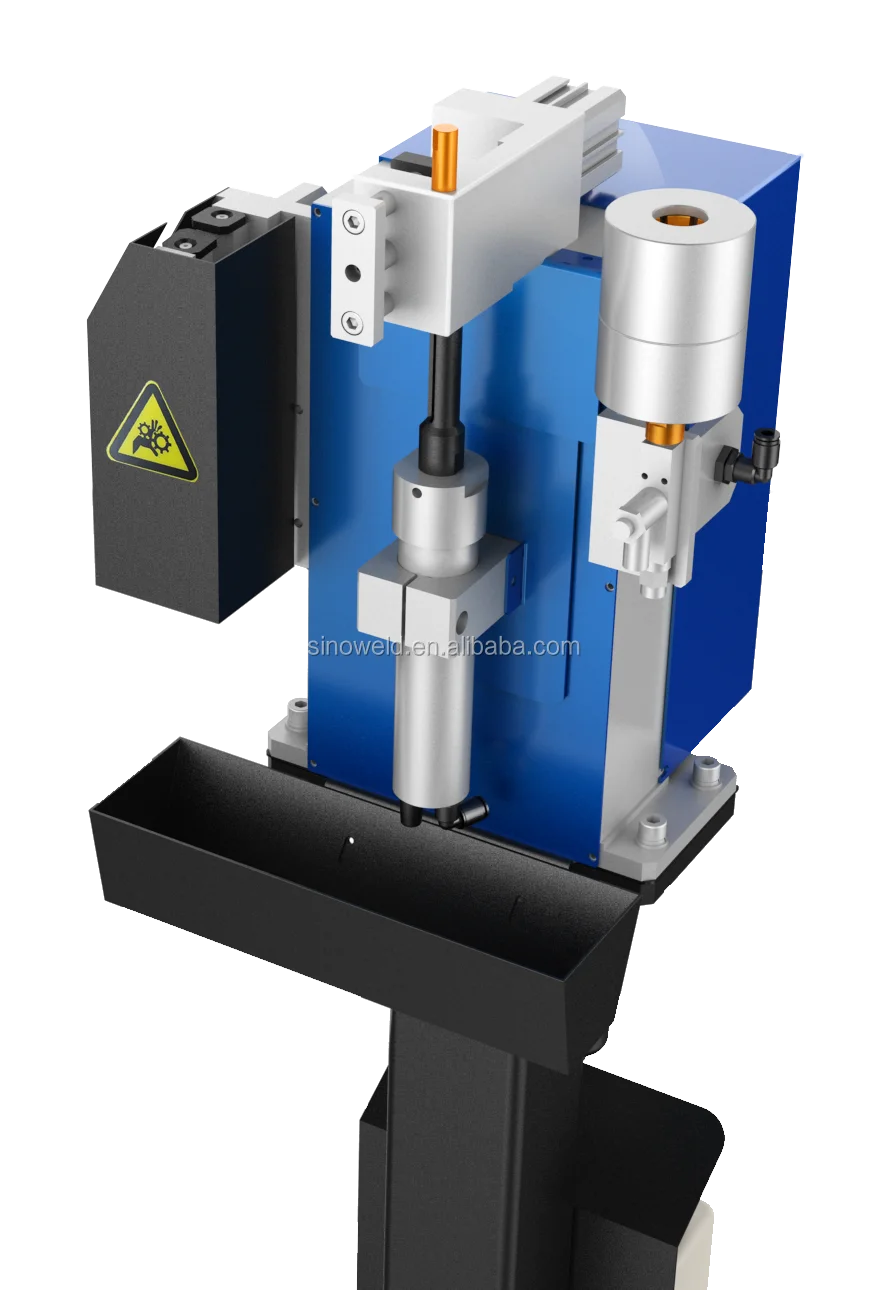

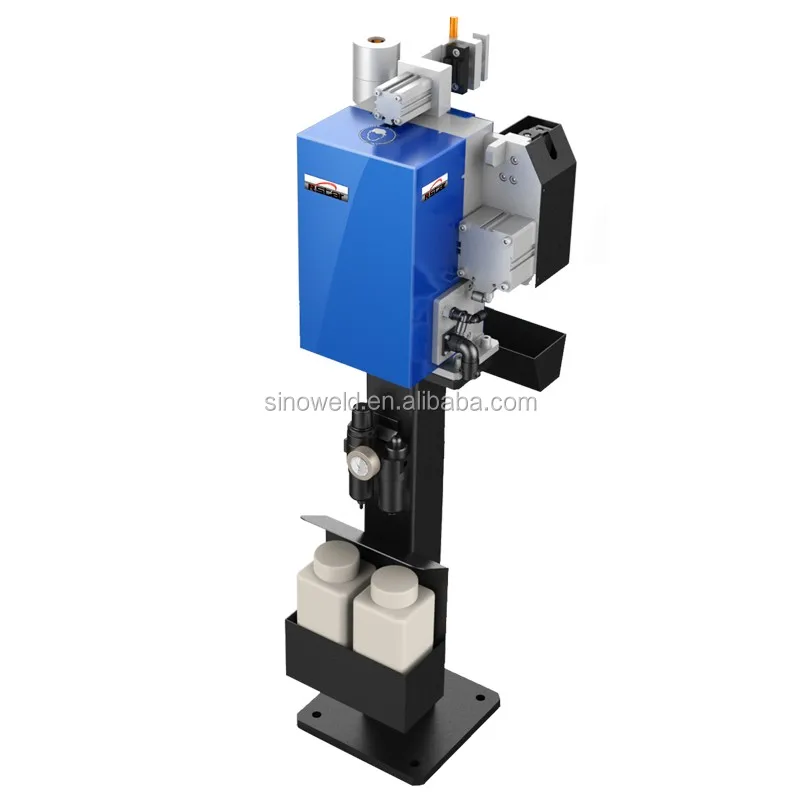

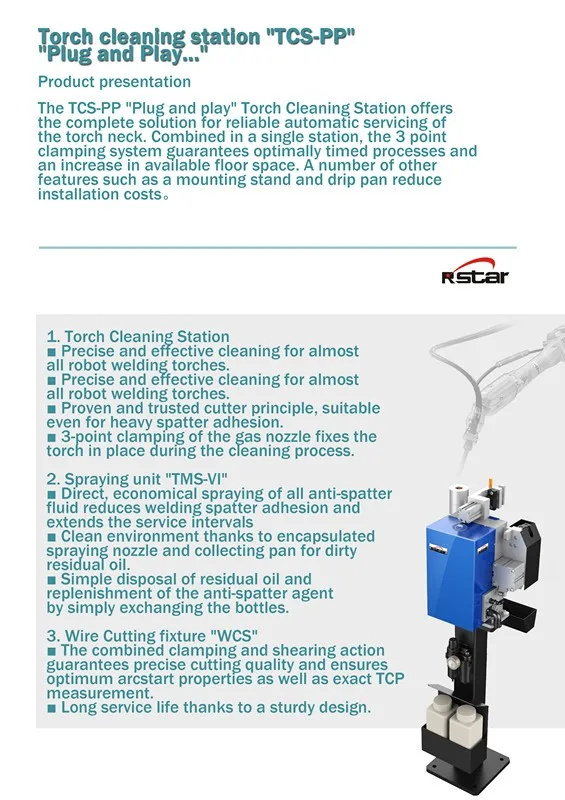

Torch cleaning station "TCS-PP"
"Plug and Play..."
The TCS-PP "Plug and play" Torch Cleaning Station offers the complete solution for reliable automatic servicing of the torch neck. Combined in a single station, the 3 point clamping system guarantees optimally timed processes and an increase in available floor space. A number of other features such as a mounting stand and drip pan reduce installation costs。
1. Torch Cleaning Station
■ Precise and effective cleaning for almost all robot welding torches.
■ Precise and effective cleaning for almost all robot welding torches.
■ Proven and trusted cutter principle, suitable even for heavy spatter adhesion.
■ 3-point clamping of the gas nozzle fixes the torch in place during the cleaning process.
2. Spraying unit "TMS-VI"
■ Direct, economical spraying of all anti-spatter fluid reduces welding spatter adhesion and extends the service intervals
■ Clean environment thanks to encapsulated spraying nozzle and collecting pan for dirty residual oil.
■ Simple disposal of residual oil and replenishment of the anti-spatter agent by simply exchanging the bottles.
3. Wire Cutting fixture "WCS"
■ The combined clamping and shearing action guarantees precise cutting quality and ensures optimum arc start properties as well as exact TCP measurement.
■ Long service life thanks to a sturdy design.

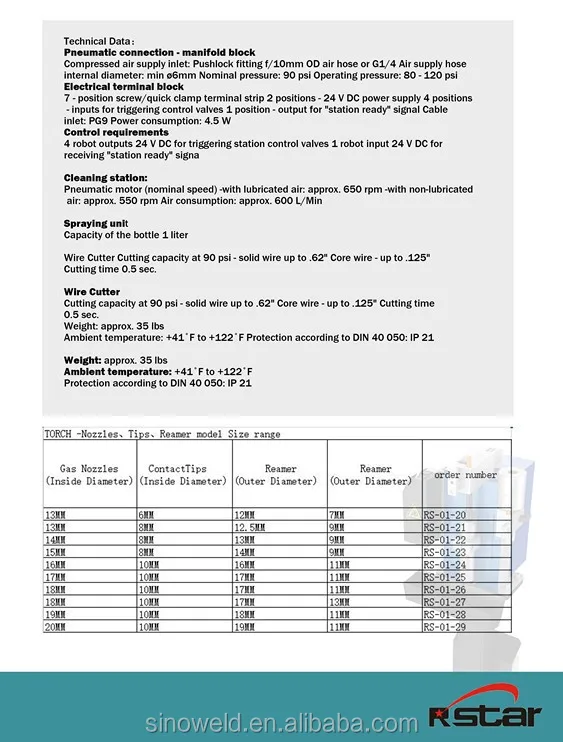

Pneumatic connection - manifold block
Compressed air supply inlet: Pushlock fitting f/10mm OD air hose or G1/4 Air supply hose internal diameter: min ø6mm Nominal pressure: 90 psi Operating pressure: 80 - 120 psi
Electrical terminal block
7 - position screw/quick clamp terminal strip 2 positions - 24 V DC power supply 4 positions - inputs for triggering control valves 1 position - output for "station ready" signal Cable inlet: PG9 Power consumption: 4.5 W
Control requirements
4 robot outputs 24 V DC for triggering station control valves 1 robot input 24 V DC for receiving "station ready" signa
Cleaning station:
Pneumatic motor (nominal speed) -with lubricated air: approx. 650 rpm -with non-lubricated air: approx. 550 rpm Air consumption: approx. 600 L/Min
Spraying unit
Capacity of the bottle 1 liter
Wire Cutter Cutting capacity at 90 psi - solid wire up to .62" Core wire - up to .125" Cutting time 0.5 sec.
Wire Cutter
Cutting capacity at 90 psi - solid wire up to .62" Core wire - up to .125" Cutting time 0.5 sec.
Weight: approx. 35 lbs
Ambient temperature: +41˚F to +122˚F
