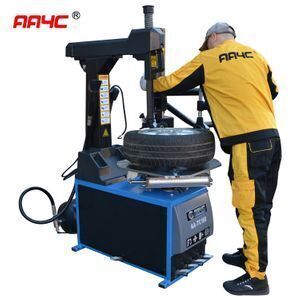

AA4C automatic tire changer AA-TC188 with back titling column

Supplier: Shanghai AA4C Auto Maintenance Equipment Co., Ltd.
Region: Shanghai, China
Contact: Ms Sunny Wang
Price: $500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Tire changer:	full automatic tilting back arm design;	Motor Power:	0.75-1.1KW;
Certification:	CE;	Model Number:	AA-TC188;
Place of Origin:	Shanghai China;	Product name:	Automatic Car Tire Changer Machine;
Brand Name:	AA4C;	Max. wheel width:	16'';
Packaging Detail:	1200x1000x1000mm;	Inside Clamping:	13.5-24'';
BEAD BREAKER FORCE:	2500kgs;	Max tire diameter:	1000mm/39.5'';
Turntable diameter:	620mm/24.4'';	Operating Pressure:	8-10Bar / 116-145Psi;
Payment Terms:	L/C,T/T,Western Union;	Warranty:	1 Years;
Power Supply:	110V/220V/380V, 50HZ/60HZ;	NOISE LEVEL:	65dB;
Outside clamping:	12-21'';	Port:	Dalian;

Product Description

AA-TC188

Full automatic tilting back arm design Tire changer, used tire repair equipment

Features
AA-TC188 is the full-automatic tyre changer with advanced configure. Push-pull horizontal arm, tilt back vertical arm, equipped with assistant inflating device and helper make the operation time saving, safe and easy. It is specially suitable for wide, low-profile, stiff and tubeless tyres. The quality is reliable, suitable for large tyre repair shop.
1. Hexangular shaft used S41 mm steel, not easy to distort, ensure the operation of low-profile and stiff tyre more safety.
2. The turntable, use δ15mm steel, the surface of the turntable is chromeplated, wearable and antisepticised.
3. The mounting head, used alloy material, ensure the intensity.
4. This machine equipped with the protection cover for the mounting head, clamps, lever and bead breaker shoe, to avoid the damage for the aluminum alloy rim.
5. The inflating system adopt gauge box, equipped with rubber inflating hose, ensure long working time and safety operation.
6. This machine with “C” configure, “C” means tubeless tyre inflating device, make the edge of the tubeless tyre connect tightly with the rim, avoid the leakage when inflating.
7. This model can upgrade, the middle-grade helper HL360 with rail-style slideway is optional according to customer’s demand, the roller on this helper is fixed, this helper make the operation easy.
8. Full-automatic tyre changer with push-pull horizontal arm and tilt back vertical arm, pneumatic locking, instead of semi-automatic and manual locking method, improve the working efficiency.

full automatic tilting back arm design

Bead blasting device
Power supply:110V/220V/380V, 50HZ/60HZ
Motor power:0.75-1.1KW
Air requirement:8-10Bar / 116-145Psi
Bead breaker force: 2500KG/5510lbs
Working noise: <70dB
Max tire diameter: 1000mm/39.5''
Max. wheel width: 16''
Turntable diameter: 620mm/24.4''
Inner clamping: 13.5-24''
Outer clamping: 12-21.5"

Company Profile

Shanghai AA4C AUTO Maintenance Equipment Co., Ltd is professional auto maintenance equipment manufacturer since 1995. AA4C means Always and All for (4) Customer. Our factory covers an area of more than 20, 000 squares meters and with our up-today manufacturing facilities, high-tech industrial, product developing manufacturing sales and perfect after-service with a total capital of more than ten millions. For many years our company has been awarded as "Enterprise with High Reputation" "Enterprise with High Credit in Quality " and "China National Grade AAA Enterprise, etc. Besides, We have passed ISO9001, authenticated by 2000 International Quality Control System. We are mainly dealing AA4C products development, product design as well as OEM/ODM manufacturing...Our Product has been shipped to worldwide (Europe, East Europe, North & South America, Africa, Australia, Middle East, Asia as well as different province in China) Facing the future opportunities and challenges, AA4C will be still adhering to "Seeking higher & being practical" trying to enlarge the inter courses and cooperation with other producers in the field both at home and abroad; And exert ourselves to pay back our clients with high-quality products and perfect after-service.

Trade Information

Trade Terms	FOB / CFR
MOQ	3UNITS (USD200.00 extrally charged for LCL shipment to cover the inland freight + custom declaration fee)
Port	SHANGHAI
Shipment	BY SEA /AIR
Payment Terms	T/T
Payment condition	30% prepayment,balanced againt BL copy&L/C at sight.
Supply Capability	1000units/month
Sample Availability	Yes ,But all freight(Inland freight +seafreight) covered by buyer
Sample package	Post :2900500720mm ; Power unit: 940X280X370mm
Sample Time	5-10days(depends on whether have in stock)
Lead Time	25-30days(Rush season 5-10days longer)
Packing	Metal frame&Carton
Delivery time	30-45days shipping time (depends on destination position)
Service	1% free parts;1year warranty after port of destination
