Tire Changer Tire Changer and Wheel Balancer Combination Basic Model with CE

Supplier: Qingdao Bluresea Industry Co., Ltd.
Region: Shandong, China
Contact: Mr Ronnie Wang
Price: $200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Internal clamping:	12"-21"	Package preview:
payment terms:	L/C, Western Union, D/P, T/T	brand:	blue ocean
model:	BLS-TC210	color:	Customer requirements
External clamping:	10"~18"	power supply:	110V/220V/380V, 50HZ/60HZ
port:	Dalian, Qingdao, Shanghai, Guangzhou	Packaging Details:	export standard
weight:	230KG	Operating pressure:	8-10 bar / 116-145 psi
product name:	tire changer	Motor Power:	0.75-1.1KW
Certification:	CE/ISO9001	place of origin; place of origin:	Shandong China
Supply capacity:	1000 sets per month	Warranty:	12 months

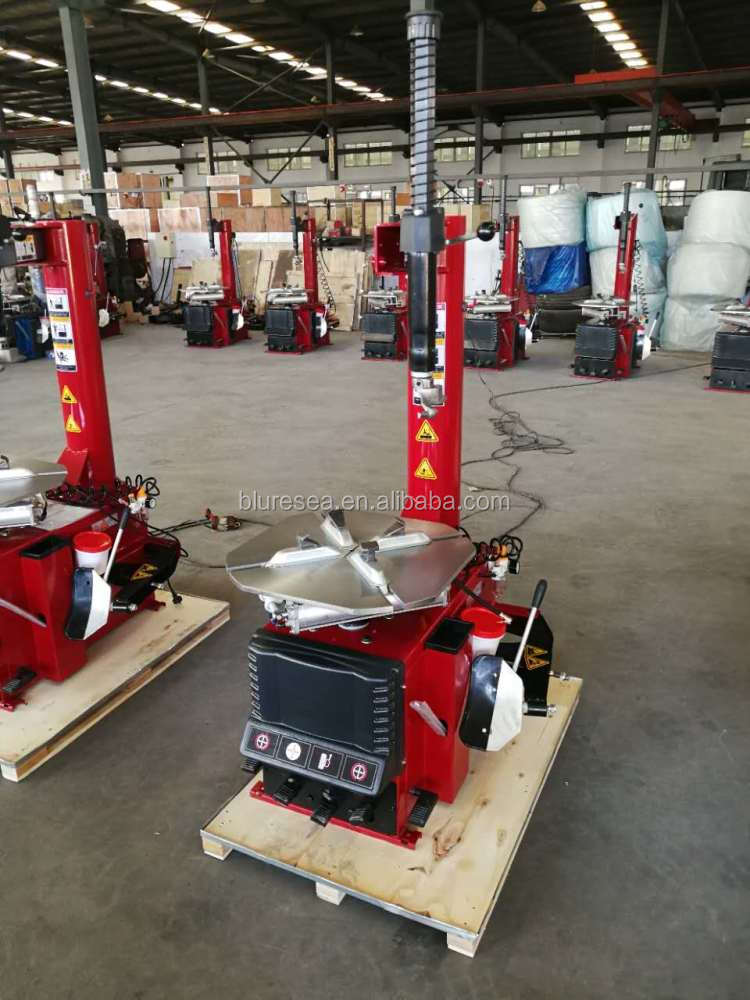

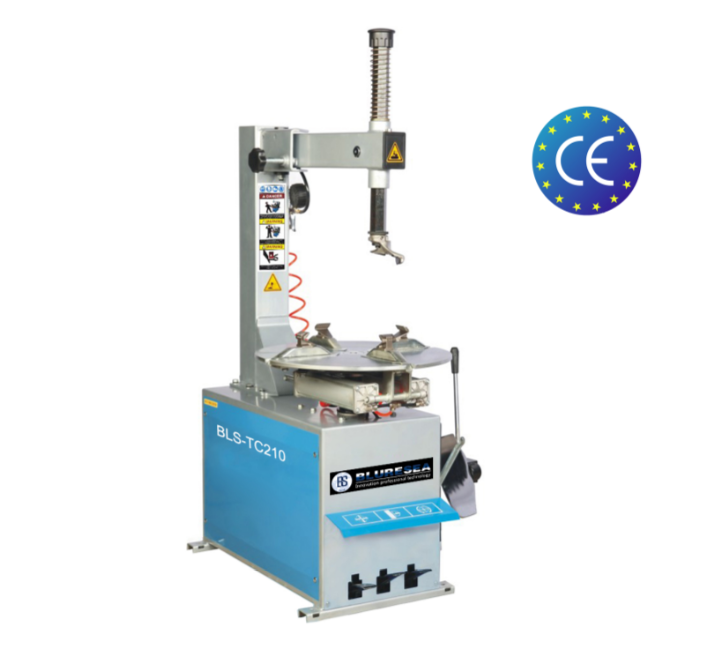

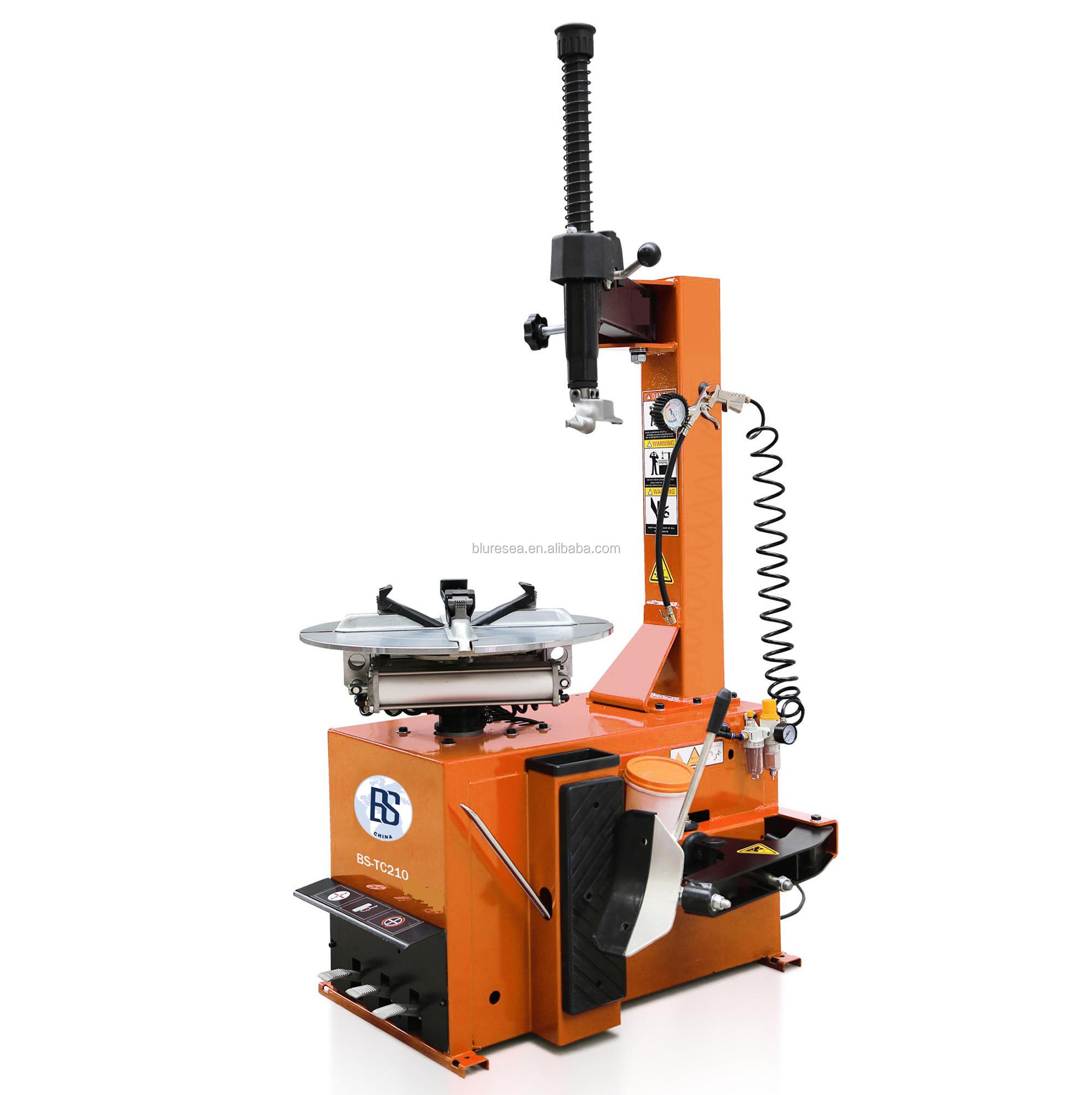

Car tire changer BLS-TC210:

Specification
Rim clamp from outside: 10"-18"
Internal Rim Clamps: 12"-21"
maximum. Wheel diameter: 960mm
Tire Width: 3"-15"
Working pressure: 8~10bar
Voltage: 380V/220V/110V
Power: 0.75kw/1.1kw
Machine weight: 230kg

feature:

Applications:

It is suitable for the replacement and inflation of car tires with rim diameters between 10”-21”.
Features:
Tire changes are made with a semi-automatic transverse swing arm.
Machine function:
1. Adjust the mobile slider to suit different rim ranges.
2. The movement structure of the four automatic centering jaws on the turntable is a link mechanism, which has a synchronization function and is automatically centered when clamping from outside to inside.
3. One-time forming mobile slider and processing mechanical structure design, not easy to deform.
4. The working head is treated with hard chrome plating on the surface by high-frequency sudden fire, which ensures the strength, toughness and wear resistance.
5. The circular working turntable has synchronous centering and fine-tuning functions, which makes the operation of the tire changer easier and smoother.
6. The noise of the machine is small when it is running.
7. Tools that directly contact the rim, such as the replacement working head, jaws, crowbar, and shovel, are equipped with protective devices to ensure that the rim will not be damaged.
8. It has a good personal image, thick steel plate and super rigidity.

Machine quality:
This product has obtained European CE certification.
