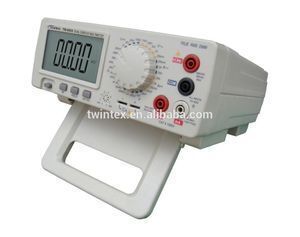

TWINTEX TM-8055 True RMS Bench 4 1/2 Digital True RMS Multimeter 19999 Display Multimeter

Supplier: Twintex Electronics Co., Ltd.
Region: Guangdong, China
Contact: Ms Lily CHEUNG
Price: $35.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Measuring Voltage Range:	1000V;	Function:	True RMS AC+DC;
Measuring Capacitance Range:	200uF;	Place of Origin:	China;
Brand Name:	TWINTEX;	Operating Temperature:	-10~40C;
Frequency:	200kHz;	Measuring Current Range:	20A;
Packaging Detail:	Double-Layer cartons;	Display:	4 1/2 Digits (19999);
Dimensions:	220W98H245D mm;	Model Number:	TM-8055;
Payment Terms:	L/C,T/T,Western Union,PayPal, Trade Insurance;	Measurement:	DCV, ACV, DCA, ACA, Ω, CAP, Hz, hFE, Diode and Continuity;
Port:	Shenzhen or Hong Kong;	Supply Ability:	1000 Piece/Pieces per Month;
AC frequency response:	40Hz~50kHz;	Measuring Resistance Range:	20MΩ;
Range:	Manual range;	Certificate:	CE Certificate;

TWINTEX TM-8055 True RMS Bench 4 1/2 Digital True RMS Multimeter 19999 Display Multimeter

Features
Large backlit LCD, 4 1/2 digits
With basic DCV, ACV, DCA, ACA, Ω, CAP, Hz, hFE, Diode and Continuity measuring functions
Voltage range up to 1000V DC or peak-peak value AC, resolution up to 10uV
Current range up to 20A, auto polarity shift, data hold
AC measuring adopts highly accurate true RMS measurement, with frequency bandwidth and AC+DC measuring, capable of accurate true RMS measuring of any waveforms in AC range

Specifications

Voltage
Range	DC	200.00mV, 2.0000V, 20.000V, 200.00V, 1000.0V
	AC	200.00mV, 2.0000V, 20.000V, 200.00V, 750.0V
Measurement type		True RMS
Accuracy	DC	±(0.05% reading+1 digit)
	AC	±(0.8% reading+80 digits)
Current
Range	DC	20.000mA, 200.00mA, 2.0000A, 20.000A
	AC	200.00mA, 2.0000A, 20.000A
Measurement type		True RMS
Accuracy	DC	±(0.35% reading+10 digits)
	AC	±(0.8% reading+80 digits digits)
Resistance		200.00Ω, 2.0000kΩ, 20.000kΩ, 200.00kΩ, 2.0000MΩ, 20.000MΩ
		±(0.1% reading+5 digits)
Frequency		20.000kHz, 200.00kHz
		±(1.0% reading+20 digits)
Capacitance		20nF, 2uF, 200uF
		±(3.5% reading+20 digits)
Special functions		Diode test, hFE test, AC+DC, Continuity
Overload protection		250V RMS
General
Display		Large backlit LCD
Counts		19999
Input Impedance		10MΩ
AC frequency response		40Hz-50kHz
Sampling rate		3 times/s
Range selection		Manual range
Power source		AC115V/230V±10% selectable, 50/60Hz
Accessories		Power cord x1, Operation manual x1, Test lead x1,
Dimension (WxHxD)		220W98H245D mm
Weight		Approx.1.5kg
