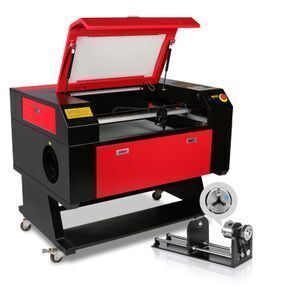

Sihao 80W CO2 Laser Engraver Engraving Cutting Machine 700*500mm with Rotary Axis 3d laser engraving machine
-
Supplier: Shanghai Sihao Machinery Equipment Co., Ltd. -
Region: Shanghai, China -
Contact: Ms Sihao Sihao -
Price: $1450.00 /set -
Min. Order: 1 set
| Control System Brand: | RuiDa; | Product name: | Sihao 80W CO2 Laser Engraver Engraving Cutting Machine; |
| Warranty: | 2 years; | Applicable Industries: | Garment Shops,Building Material Shops,Machinery Repair Shops,Printing Shops,Construction works ,Energy & Mining,Advertising Company; |
| Software: | RDworks; | Condition: | New; |
| Keywords: | Laser Engraving machine; | CNC or Not: | Yes; |
| Laser Source Brand: | EFR; | Laser power: | 60W/80W/100W/130W/150W; |
| Laser Type: | CO2; | Single package size: | 149X98X114 cm; |
| Single gross weight: | 180 KG; | Certification: | CE,ISO,FDA; |
| Dimension(L*W*H): | 700*500cm; | Place of Origin: | Jiangsu China; |
| Applicable Material: | Acrylic,Crytal,Glass,Leather,MDF,Paper,plastic,Plexiglax,Plywood,Rubber,Stone,Wood; | After-sales Service Provided: | Online support; |
| Function: | Cutting Engraving Non-metal Materials; | Brand Name: | SIHAO Laser Engraving machine; |
| Application: | Laser Engraving; | Engraving Speed: | 1000mm/s; |
| Engraving Area: | 700*500mm; | Cooling Mode: | Water Cooling; |
| Selling Units: | Single item; | Graphic Format Supported: | AI,BMP,DST,DXF,PLT,DWG,LAS,DXP,HPGL,GIF,JPG,JPEG; |
| Key Selling Points: | Competitive Price; | Laser tube type: | Co2 Glass sealed laser tube; |
| Package Type: | WOOD CARTON WELL PACKED; |

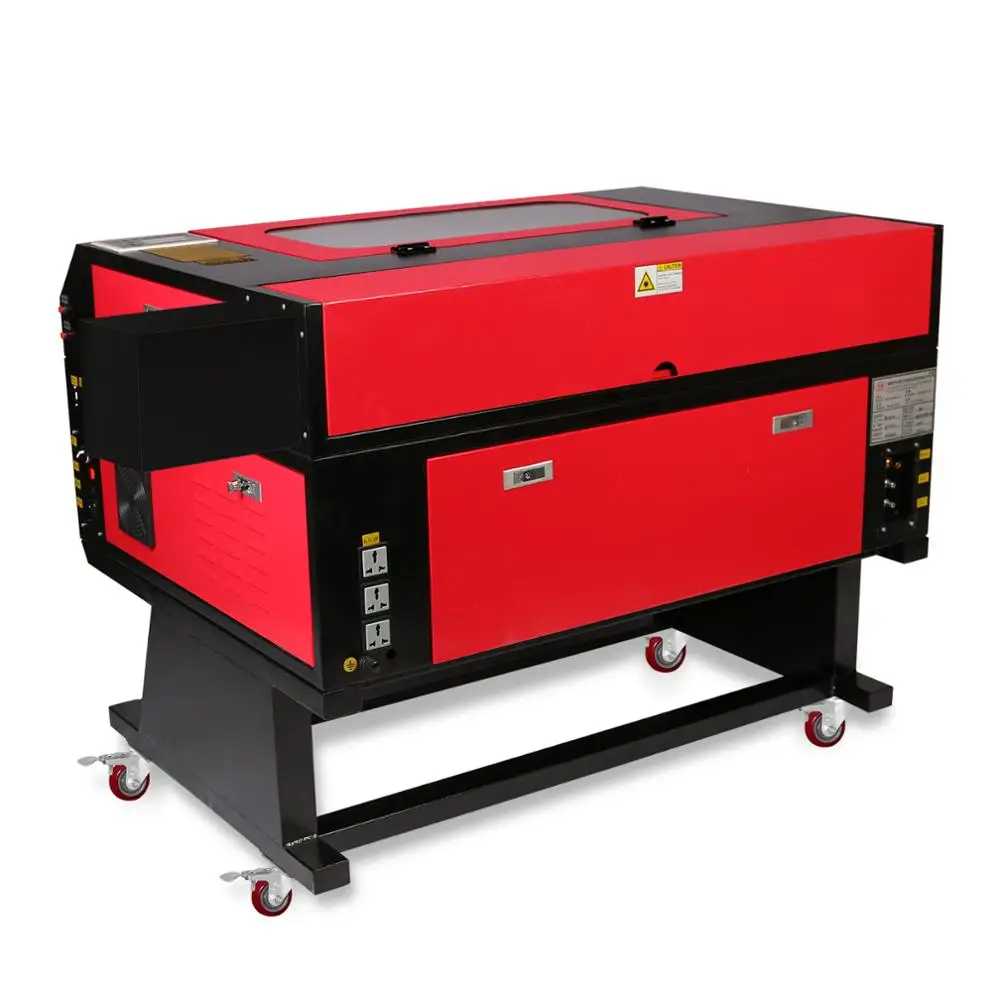

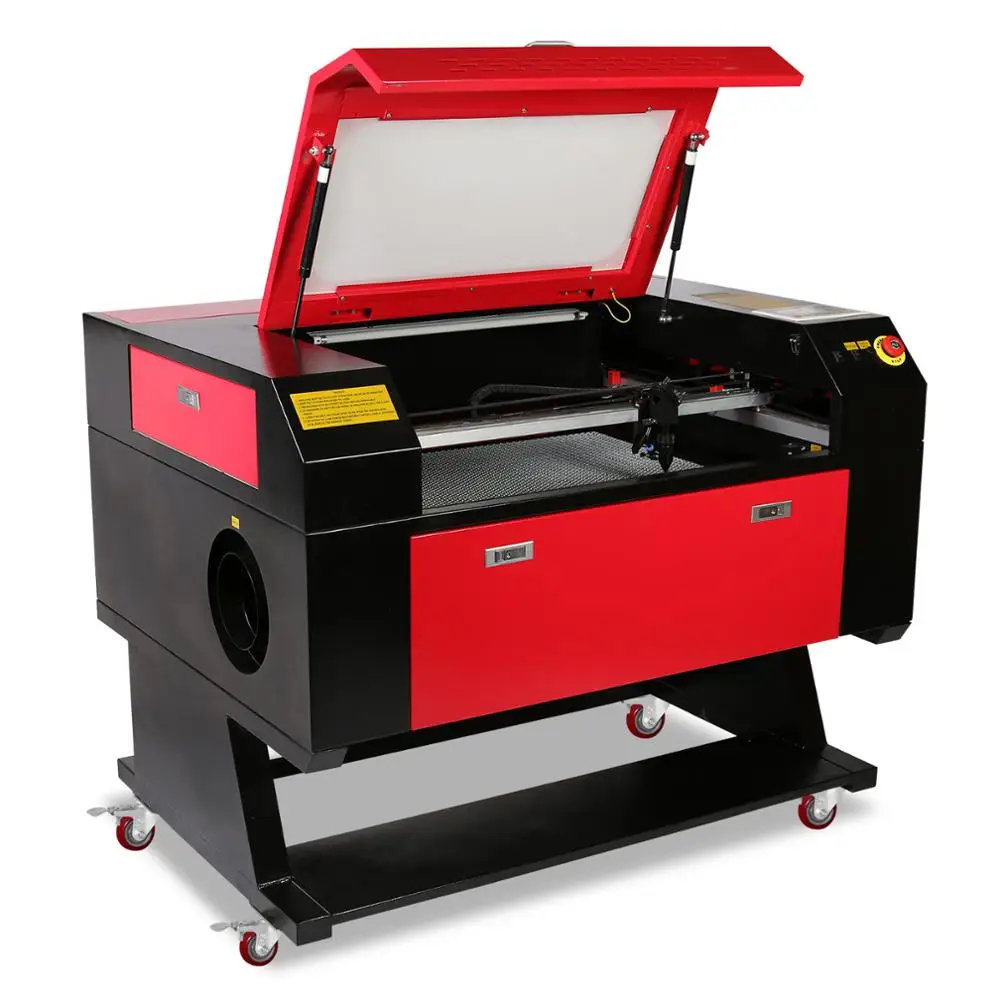

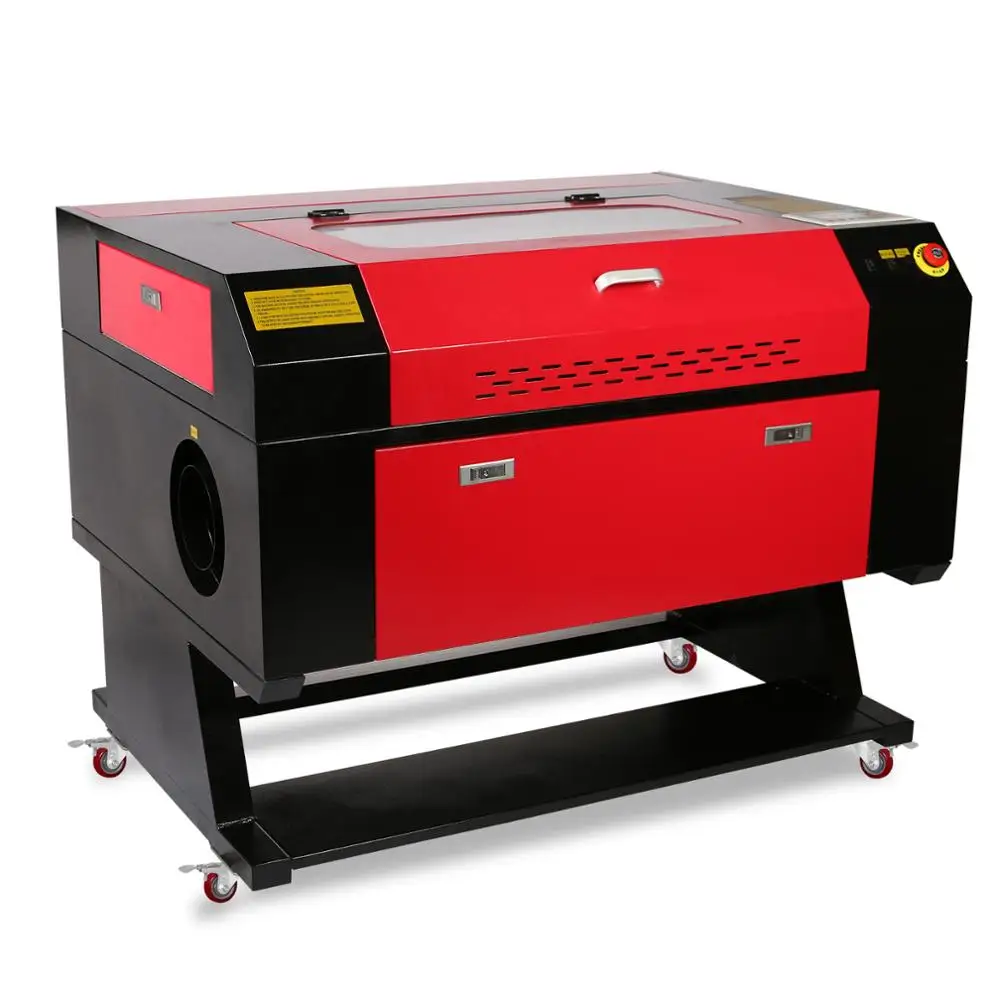

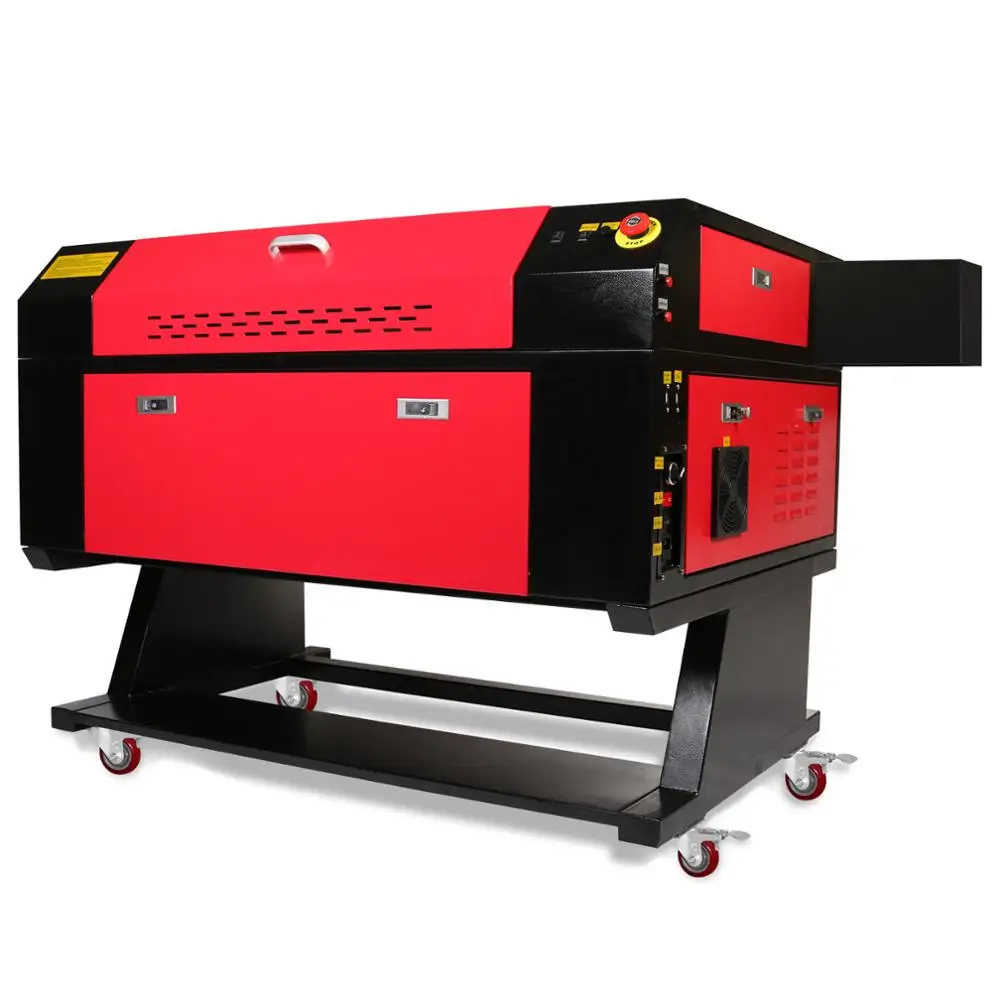

Sihao 80W CO2 Laser Engraver Engraving Cutting Machine
Model no .HQ7050
KINDLY NOTE RUIDA BOARD is available and EU/US/AU shipping is acceptable if your address is not remote! Please contact us to know more details.
New Laser Engraving and Cutting Machine. The machine is a kind of Laser Engraving Machine System equipped with CO2 laser Tube, it is used to engrave on wood, bamboo, plexiglass, crystal, leather, rubber, marble, ceramics and glass and etc. It is most suitable and the preferred choice of equipments in industries such as advertisement, gifts, shoes,toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.
This machine is equipped with DSP Control System for RDdraw directly,also supports CoreDraw and Auto CAD and other advance software. It must connect with computer with USB cable when you change the settings of machine for the design files,you can transfer the file with USB memory stick to the machine, or can download it to the machine directly with USB cable from computer. Even on the same Job, you can do setting with different colour in the software and also can making holes.And it can the legs separate from the main body of the machine. The machine has doors which can be opened to accommodate larger materials.
Applicable Material:
Wood,bamboo,jade,marble,organic glass, crystal, plastic, garments, paper, leather, penelope, rubber, ceramic, glass, textile cutting, industrial prototyping, industrial marking, signmaking, medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating, flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding, engraving, gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens, door pulls, cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes, light switch plates, jewelry boxes, parts marking, router templates, desk sets, scrap booking, photo albums, jewelry, crafts, Italian charms.
Applicable Industry:
- Advertisement,arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping,packaging and paper industry.
Features
- FDA,CE Certification, ISO9001 Quality Certification.
- Smooth and Precise Engraving and Cutting.
- Output from RDdraw directly,also supports CorelDRWA and Auto CAD.
- Optimization of mechanical and electrical design.
- More friendly control panel with Color Screen
- English, French, and more languages updating...
- Separation of cutting up to 256 Colors.
- One key to install, more convenient.
- Use virtual array list and additional off-cut graph to realize the off-cut function
- Machines with feeding devices can realize the cyclical model of working-feeding-working
- USB Interface, U-Flash Disk Supported,Machine will read files from memory stick,you can work even without a PC.
- Air Assist, Remove heat and combustible gases from the cutting surface and make the engraving and cutting projects a breeze.
- Adopt advanced DSP digital control system, international standard laser power supply,integrated framework style
- 2 years free warranty and life time free maintenance service.
Technical
- Control system:DSP
- Working size: 28"x20"(700mm x 500mm) with unlimited length design
- Laser tube type: Co2 Glass sealed laser tube
- Laser power: 80W
- Driver type: Micro Stepping Motor
- Max speed: 1000mm/s
- Resolution: 1000 DPI
- Location precision: 0.01mm
- PC Interface: USB2.0 and USB Disk
- Software: Auto Laser
- Image form: HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI
- Machine Dimension(L/W/H):1460*850*950(mm) / 57.5*33.5*37inch
- Package Dimension(L/W/H):1560*950*1100(mm) / 61*37*43 inch
- Package: Standard Wooden case for export
- N.W.: 180KG
- G.W.: 265KG
Package
1 X Main Body
1 X Air exhaust fan
1 X Air Pump
1 X Communication cable
3 X Reflect optics (installed in the machine)
1 X Focus optics (installed in the machine)
1 X Laser tube
Other tools
1 X User Manual (CD)
| Business modle | Manufacture&Trading |
| Place of origin | Shanghai,China(Mainland) |
| Delivery time | 5~10 days |
| Minimun order quantity | 1 set |
| Payment | L/C;T/T |
| Warranty | 2 years |
