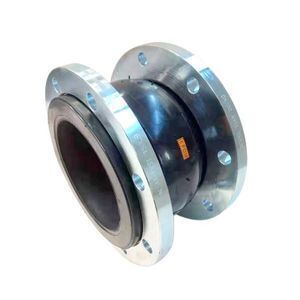

Flanged flexible EPDM Rubber expansion joint

Supplier: Gongyi Runda Pipeline Manufacturing Co., Ltd.
Region: Henan, China
Contact: Mr Garen Zhang
Price: $11.70 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Product Certificate:	ISO9001:2008;	Export countries:	Canada, America, Australia, Chile, Malaysia, Philippine etc;
Material of flange:	Carbon steel, Stainless steel 304,316 etc.;	Drawing:	Offer;
Connection:	Flange;	Applicable media:	Air, Water, Oil, Weak Acid and Alkali, Juice etc.;
Technics:	Valcanized formed;	Overall length:	From 95 to 500mm;
Packaging Detail:	Rubber expansion joint is packed by plastic film, then put into export wooden case.;	Head Code:	round;
Flange drilling:	DIN, ANSI, BS, ISO, JIS,EN 1092;	Supply Ability:	3600 Set/Sets per Month Flanged flexible EPDM Rubber expansion joint;
Working pressure:	From 0 to 25bar;	Place of Origin:	Henan China;
Port:	Tianjin port;	Manufacturer:	Yes;
Brand Name:	Runtaida;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Flanged flexible EPDM Rubber expansion joint;
Nominal size:	DN32 - DN3000mm;	Shape:	Equal;
Model Number:	REJ;

Flanged flexible EPDM Rubber expansion joint

Product Description

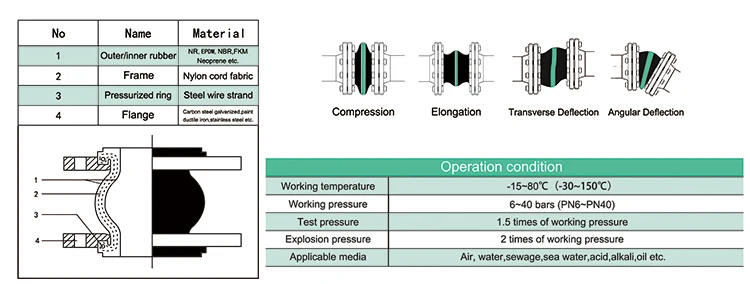

Rubber expansion joints consist of inner and outer rubber, cord layer and traveler, which are vulcanized and then combined with metal flanges or loose sleeves of parallel joints. This product can reduce vibration and noise, and compensate thermal expansion and contraction caused by temperature change. It is widely used in various pipeline systems.

Technicial parameter

Nominal diamrter		Length (mm)	Axial displacement		Horizontal movement(mm)	Deflection angle(a1+a2)	Special length(mm)
mm	inch	Length (mm)	Compression(mm)	Extension(mm)	Horizontal movement(mm)	Deflection angle(a1+a2)	Special length(mm)
32	1-1/4	95	9	6	9	15	130/150/200
40	1-1/2	95	10	6	9	15	130/150/200
50	2	105	10	7	10	15	130/150/200
65	2-1/2	115	13	7	11	15	130/150/200
80	3	135	15	8	12	15	130/150/200
100	4	150	19	10	13	15	130/200
125	5	165	19	12	13	15	130/150/200
150	6	180	20	12	14	15	130/150/200
200	8	210	25	16	22	15	130/150/200
250	10	230	25	16	22	15	130/150/200
300	12	245	25	16	22	15	130/150/200
350	14	255	25	16	22	15	130/150/200
400	16	255	25	16	22	15	130/150/200
450	18	255	25	16	22	15	130/150/200
500	20	255	25	16	22	15	200

Size rang from DN25-3000 are all available,special size and length can also be customized,please contact us for exact data.

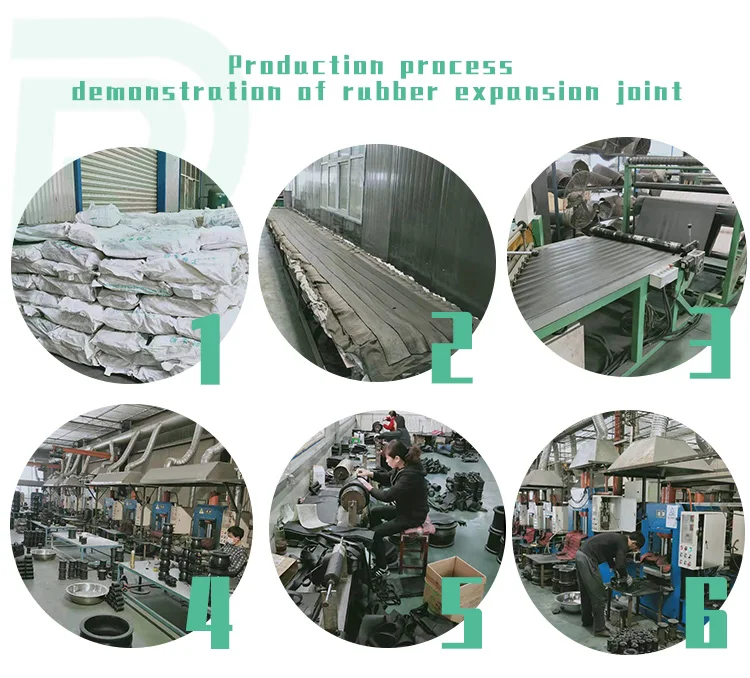

Production process

Rubber expansion joint:

Detailed Images

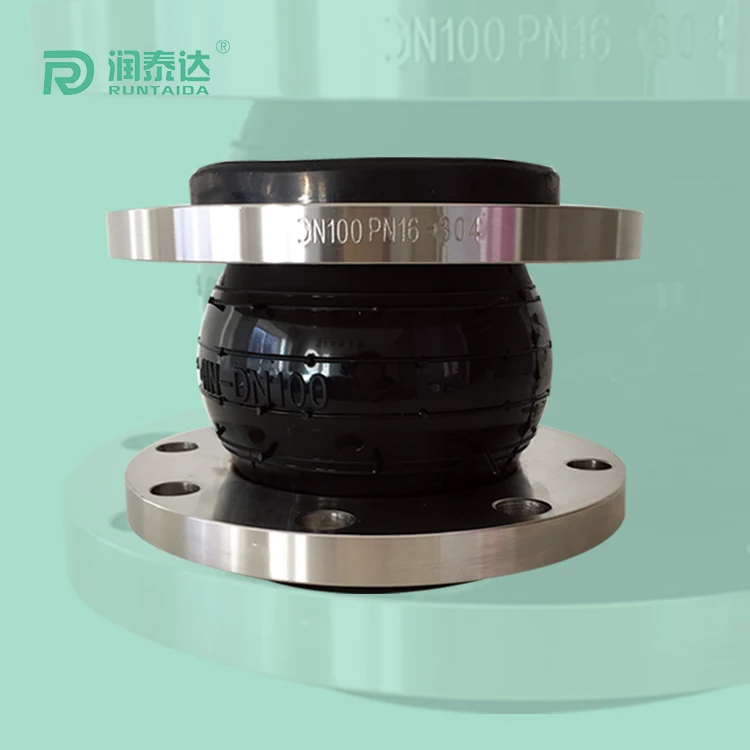

1.Runtaida rubber expansion joint flange lathe drilling and marking

2.OEM Trademark(according to customer requirements)

3.EPDM rubber

Certifications

We can provide ISO certificate, import and export certificate, factory inspection certificate, raw material certificate, test report,WRAS and certificate of origin of rubber expansion joint.

Packing

The packing of rubber expansion joint:For packaging, we have a strict process. After checking the products meet the requirements, we will use plastic film packaging, then pack them into cartons, and finally pack them into export wooden boxes.

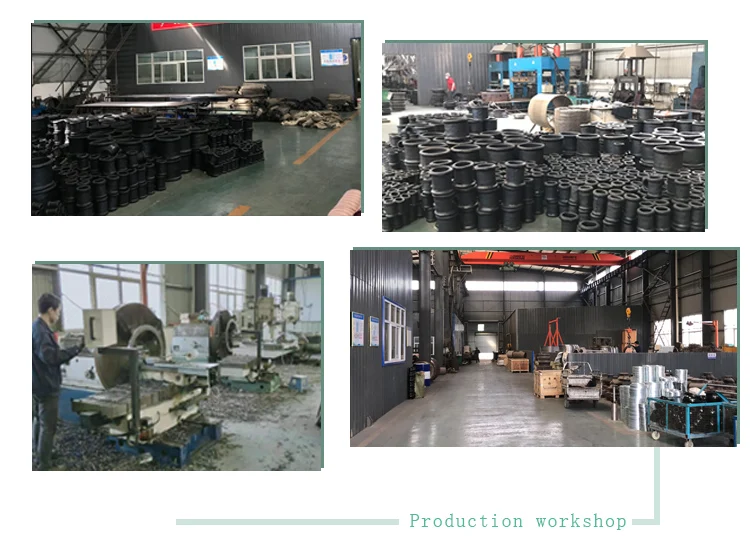

Team and Factory

Company mission:Providing high quality pipe fittings for global users
Company vision:Creating global famous brandsin the pipe fitting industry
Create a modern enterprise with a dream ,a culture,love and righteous
Company values:Customer first,quality supremacy,integrity,perfection,unity,struggle

We have 10 years of production experience, often exported to Vietnam, Dubai, Saudi Arabia, India, Bangladesh, Oman, Indonesia, Australia, Brazil, Singapore and other countries, according to different customer needs, we can provide different products to meet customers, this is about rubber joints and other related products.

FAQ

Q : Are you trading company or manufacturer?
A: We are manufacturer of lift check valve, expansion joint,rubber joint, bellow, dismantling joint, dresser coupling, flange adapter and flange with more than 12-year experience.

Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?
A: Yes, they have been exported to USA, Canada, Australia, Russia,Chile,Panama,Nicaragua, UAE, Saudi Arabia,Egypt,Sri Lanka, Nigeria, Iran,Vietnam,

Indonisia,Singapore,Greece,Netherland,Georgia,Romania,Ireland, India, Thailand, Pakistan, Philippines, Singapore, HK,Taiwan...

Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 20 working days.

Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visting factory is allowed or not?
A: Yes, we welcome customers visiting our factory. Our factory is located Gongyi city,Henan province,China mainland.

Contact us for more details about price and packing, shipping and discount!

Our team is a dream, culture, feelings, a sense of justice team.

Company adhere to: customer first, quality first, integrity - based.

Our contact information: Phon:86 15517589658
