ISO2531 ductile cast iron DI universal coupling for PVC pipes

Supplier: Gongyi Runda Pipeline Manufacturing Co., Ltd.
Region: Henan, China
Contact: Mr Garen Zhang
Price: $3.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Product name:	ISO2531 ductile cast iron DI universal coupling for PVC pipes;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,ISO2531 ductile cast iron DI universal coupling for PVC pipes;
Packing:	Wooden Box;	Material:	Ductile iron;
Certification:	ISO9001;	Application:	Industrial Equipment;
Place of Origin:	China;	Size:	32-600;
Color:	Blue;	Body Material:	Cast Iron/GG25;
Type:	coupling;	Port:	Qingdao port;
Structure:	Universal;	factory:	yes;
Flexible or Rigid:	Flexible;	Standard or Nonstandard:	Standard;
Supply Ability:	6000 Ton/Tons per Month Qingdao port;	MOQ:	2;
Packaging Detail:	Inner packing:plastic film,Outer packing:export case;	Applicable Industries:	Hotels;
Brand Name:	Runtaida;

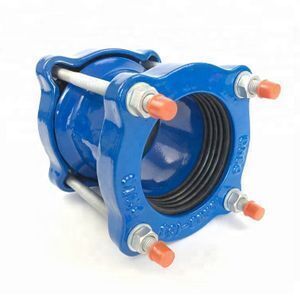

ISO2531 ductile cast iron DI universal coupling for PVC pipes

Product Description

The gland type loose sleeve expansion joint is composed of loose sleeve telescopic joint and two spacing short pipes. It is mainly used to absorb the axial displacement and loose pipe connection under axial pressure and thrust in the allowable displacement range.

The advantages of the cover connection:

1. large scale expansion

2. installation is simple and convenient

3. long service life

4. convenient maintenance

Technical paramete

DN	RANGE(MM)	L(MM)	D(MM)	BOLT
DN	RANGE(MM)	L(MM)	D(MM)	SIZE	QTY
50	59-72	102	165	M12*180	2
65	72-85	102	185	M12*180	2
80	88-103	102	185	M12*180	4
100	109-128	102	218	M12*180	4
125	132-146	102	250	M12*180	4
150	159-182	102	272	M12*200	4
200	218-235	130	335	M12*220	4
250	272-289	130	405	M12*220	6
300	315-332	130	460	M12*220	6
350	340-360	150	455	M12*250	6
400	400-429	150	580	M12*250	8
450	455-472	150	665	M12*260	8
500	500-532	150	690	M12*260	10
550	555-572	150	715	M12*260	10
600	600-630	150	790	M12*260	10

The above drawings and parameters are for reference only,pls consult us for exact datas.

Scope Of Application

Universal coupling mainly used for connecting PVC pipes,ductile iron pipes etc.

Certifications

We are a professional manufacturer with ISO certificate, certificate of origin, business license and so on.

Factory

Gongyi Runda Pipeline Manufacturing Co.,Ltd provides products rangs from expansion joint,rubber expansion joint,metal expansion joint,bellow expansion joint,stainless steel bellows,dismantling joint,flange adaptor,universal coupling,sleeve compensator.

Customers & Teams

Company mission:Providing high quality pipe fittings for global users
Company vision:Creating global famous brandsin the pipe fitting industry,Create a modern enterprise with a dream ,a culture,love and righteous
Company values:Customer first,quality supremacy,integrity,perfection,unity,struggle

Packaging & Shipping

About our packing:
1. Plastic film wrap
2. Bubble film to prevent collision
3. Wooden box packaging (1.1mm*1.1mm*1.1mm)

FAQ

Q : Are you trading company or manufacturer?
A: We are manufacturer of expansion joint,rubber joint, bellow, dismantling joint, dresser coupling, flange adapter and flange with more than 12-year experience.

Q: Do you have products catalog?
A: Yes, we have. Please tell me your email or instant messager, we will send our catalog.

Q: Can you provide drawings and technical data?
A: Yes, our professional technical department will design and provide drawings and techical data.

Q: Do you provide samples? Is it free or charged?
A: Yes, we can offer sample free but shipping charges covered by customer.

Q: Have your products been exported?
A: Yes, they have been exported to USA, Canada, Australia, Russia,Chile,Panama,Nicaragua, UAE, Saudi Arabia,Egypt,Sri Lanka, Nigeria, Iran,Vietnam,

Indonisia,Singapore,Greece,Netherland,Georgia,Romania,Ireland, India, Thailand, Pakistan, Philippines, Singapore, HK,Taiwan...

Q: How long is your delivery time?
A: Depends on QTY, but normally no more than 30 working days.

Q: Can the products be manufactuered by customer's requirement?
A: Yes, the specifications stated above are the standard ones, we can design and manufacture as requirement.

Q: Visting factory is allowed or not?
A: Yes, we welcome customers visiting our factory. Our factory is located Gongyi city,Henan province,China mainland.
