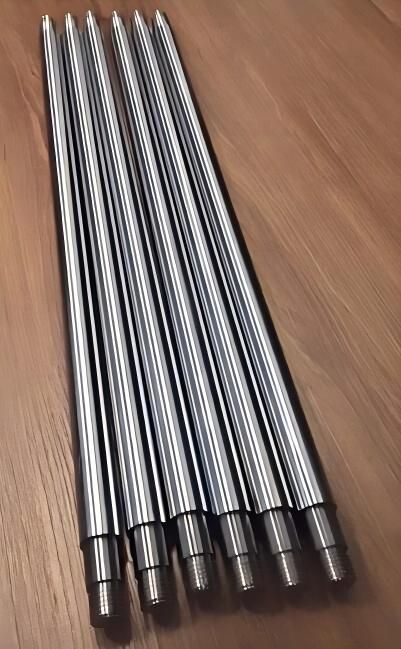

Precision CNC Turned Hardened Steel Shafts Mechanical Transmission Parts Nitrate Hardened Shafts Products from Dongguan Bomei Precision Machining Co., Ltd

Product Details

Product Description

Item Name	CNC Precision Automatic Lathe Hardened Steel Shaft Customized Machining Turning Manufacturer Factory
Available materials	Aluminum:5052, 5083, 6061, 6082, 7075
	Steel/Carbon steel/Alloy steel/Harden Steel/Die steel:Q235, #45, Q345, Y12, Y30, 40Cr
	Stainless Steel: SUS303, SUS304, SUS303Cu, SUS316, SUS316L, SUS416, SUS431
	Brass: C230/C260/C360
	Pure Cooper
	Plastic: POM, POM-C, Nylon, Acrylic, ABS, PEEK, Plexiglas, PP, PE
	Titanium: TA1, TA2, TA3, TA4, TC4

CNC turning work range	φ4mm-φ500mm*1000mm
CNC turning work range	510mm1520mm800mm
Tolerance	±0.01mm and hole tolerance is ±0.005mm.
Finished	Anodized, Powder coating, Electroplating, Nitriding, Sandblasting, Heat treatment, Blueing, Grinding, Polishing, As machined,
DRW format	PDF, CAD for 2D; x_t,.igs,.stp, .step for 3D
Processing Equipment	CNC Machining center, CNC Lathe, Turning machine, Milling machine, Drilling machine, Internal and external grinding machine, Cylindrical grinding machine, Tapping drilling machine, Wire cutting machine, polishing machine, etc.
Surface Roughness	Ra 0.2-Ra 3.2
Delivery Time	Leadtime of samples: 3-5 days mass production: 10-25days

Quality control	100% inspection before shipment
Other services	CNC engraving, Laser engraving, silk printing, Knurling

Shaft machining process:

Material preparation → Turning both ends, drilling center hole →Rough turning each outer circle→ quenching →Repair grinding center hole →Semi-precision turning of the outer circle, slot, chamfering →Thread→ Keying Groove Processing Line →Milling keyway→ Repair grinding center hole→ Grinding→ test.

The process of shaft manufacturing can be Rough turning→ semi-finishing turning→ finishing turning→ grinding based on the high accuracy requirement.

Shaft processing needs to pay attention to the dimensional accuracy, geometric accuracy, surface roughness, mutual position accuracy, etc...

Processing and precautions:

(1) The order of machining should be followed based on the principle arrangements: First base surface, First coarse, then fine grinding.

(2) After machining the center hole for the main shaft part, process the outer circle →the inner hole, and pay attention to the rough and fine processing separately.

(3) The deep hole processing is typically processed after quenching. It is difficult to correct the deep hole after it is bent and deformed, as the deformation of the quenching and tempering treatment is large.

(4) When processing the outer surface of the outer circle, the large diameter outer circle should be processed first, and then the small diameter outer circle should be processed. So as not to reduce the rigidity of the workpiece at the beginning.

(5) The machining of minor surfaces such as splines, keyways, etc. on the main shaft is generally performed after the outer fine wheel or rough grinding and before the rough grinding of the outer circle.

(6) Spindle threading is performed after the partial quenching of the spindle. The concentricity of the threaded surface and the supporting journal shaft is not affected by the deformation after quenching.

If you are looking for a supplier for shaft machining, Bomei provides an in-depth look at the shaft manufacturing process. This process begins with the design of the shaft, and proceeds through the various stages of manufacturing.

Company Introduction
Bomei Precision Machining Co., Ltd was established in 2012. The core members of the team have entered this industry since 2007 and become industry leaders, mainly engaged in the automation machinery and equipment industry.
Our manufacturing possibilities range from CNC milling, turning, drilling and the production or assembly of molds and fixtures and much more.
With the concept of "satisfaction service to customers", we provide customers with one-stop high-quality solutions from raw materials to process engineering and manufacturing, products are widely used in automation equipment, communications, precision instruments, medical equipment, auto, electric scooter, skateboard and other machinery.

We can process various raw material such as: stainless steel, steel alloy, aluminum, brass, copper, nylon, delrin, PVC, PE, ABS etc.

These customized mechanical parts include non-standard automated parts, mechanical transmission parts, Four-wheel electric skateboard parts, wheel hubs, wheel sets, wheel rims, mounting brackets, Engine parts, shaft, drive shaft, flanges, blind flange, adapters, vent plug, valve fittings & accessories, hydraulic fittings, hose fittings, bushings, generators, cylinder pistons, seals and cylinder parts, mainframe plates, timing pulley, chain link, chain coupling, motor housings, rotary motor parts, various pilot valve, nozzle parts, studs, bolts, screws nuts, washers, spacers etc.
