Ebyte free sample DAQ data acquisition system data acquisition unit wireless pressure data acquisition daq

Supplier: Chengdu Ebyte Electronic Technology Co., Ltd.
Region: Sichuan, China
Contact: Mr Chengdu Ebyte Company
Price: $52.05 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Place of Origin:	Sichuan China;	Baud rae:	9600;
Single package size:	12.5X11X3 cm;	Isolation protection:	4000vDC;
Size:	105 * 79 *25mm;	Communication address:	1-250;
Brand Name:	Ebyte;	Feature:	4-20 mA to 433mhz analog Data Acquisition;
Tx power:	30dBm;	Model Number:	E820-DTU(2I2-433L);
Color:	Black;	Weight:	150g;
Package Type:	standard packing for 4-20 mA Wireless transmitter to 433mhz radio RTU analog data Acquisition device;	Selling Units:	Single item;
Supply voltage:	8V ~ 28V;	Current:	0-20mA;
Single gross weight:	0.18 KG;

Product Description

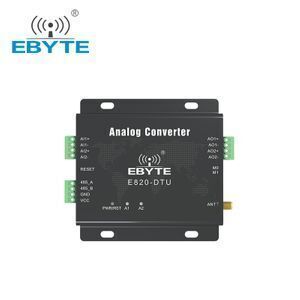

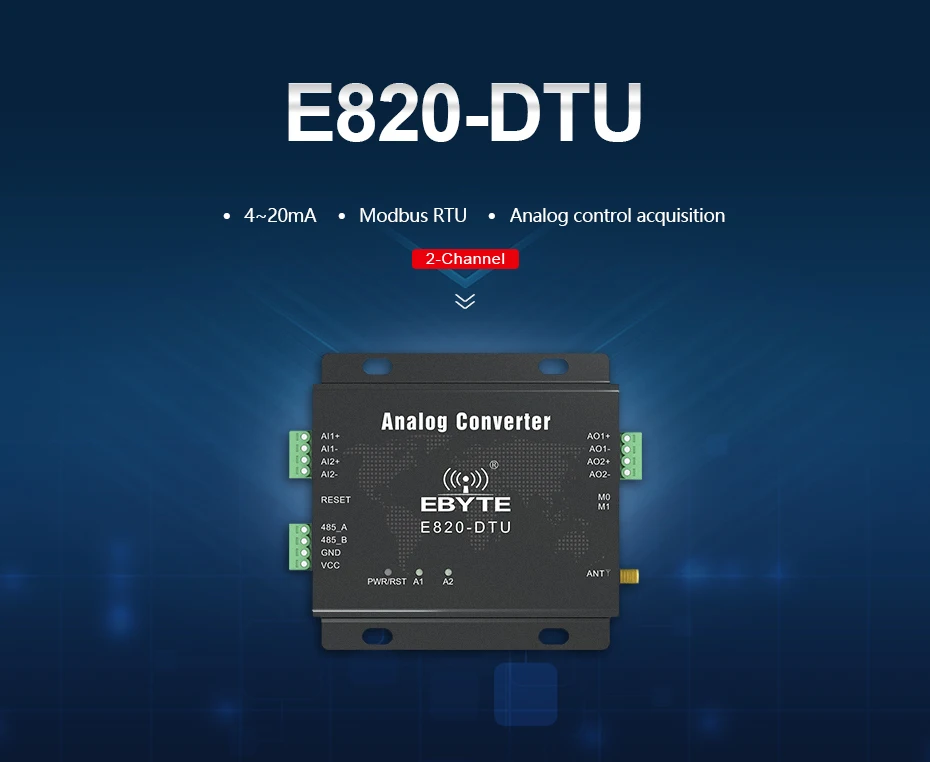

Ebyte DAQ data acquisition system data acquisition unit wireless pressure data acquisition daq

[Collection] : Switching quantity/digital quantity

[Interface] : RS485

[I/O channel] : 2-channel

[Size] : 124*105*25mm

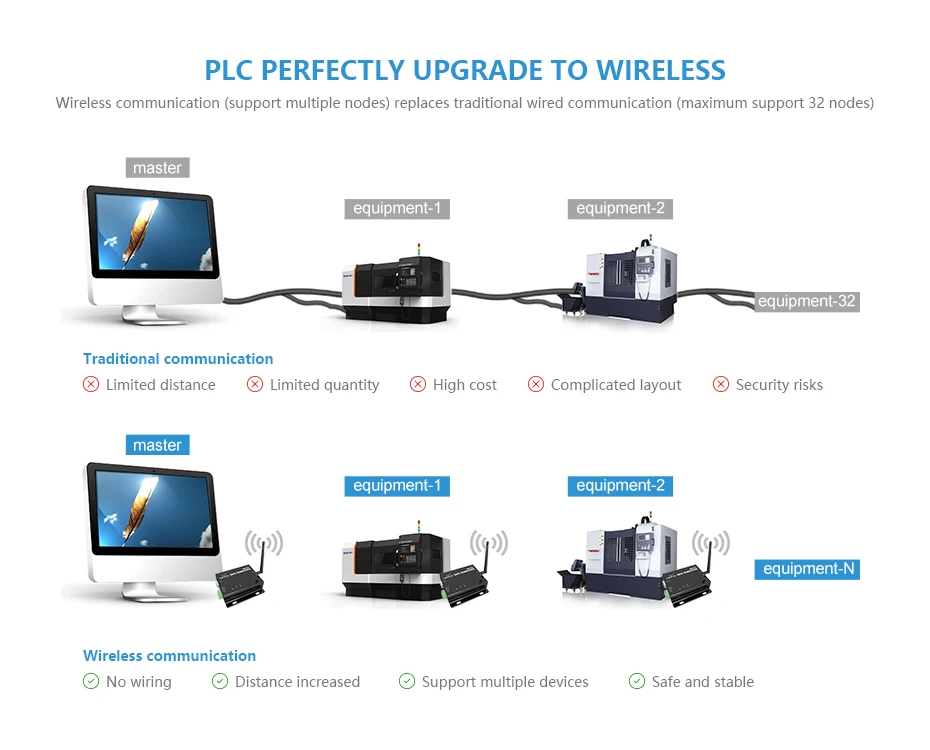

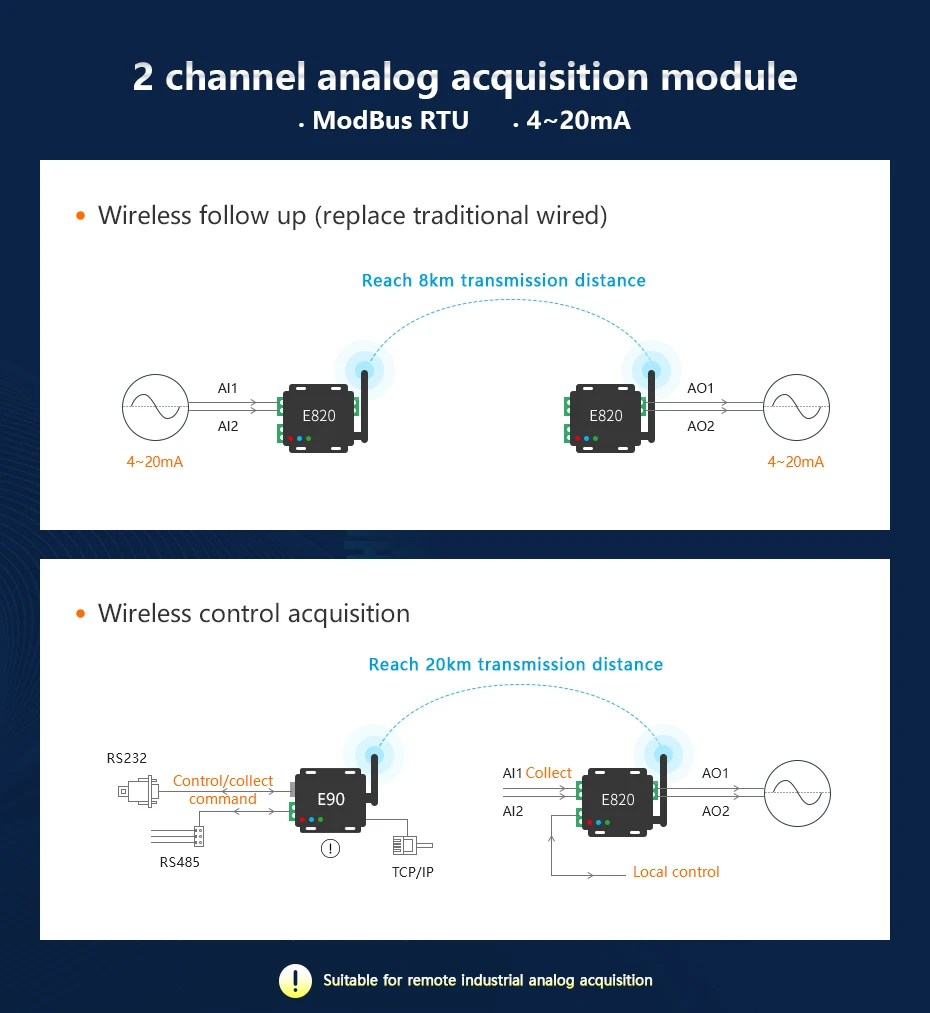

[Feature] : E820-DTU(2I2-433L) is a remote controlling device supporting analog quantity following, controlling and collecting. Under controlling and collecting mode, it supports Modbus RTU protocol. This product features easy-to use, it can be integrated into user systems so as to realize remote wireless controlling via 433MHz band.

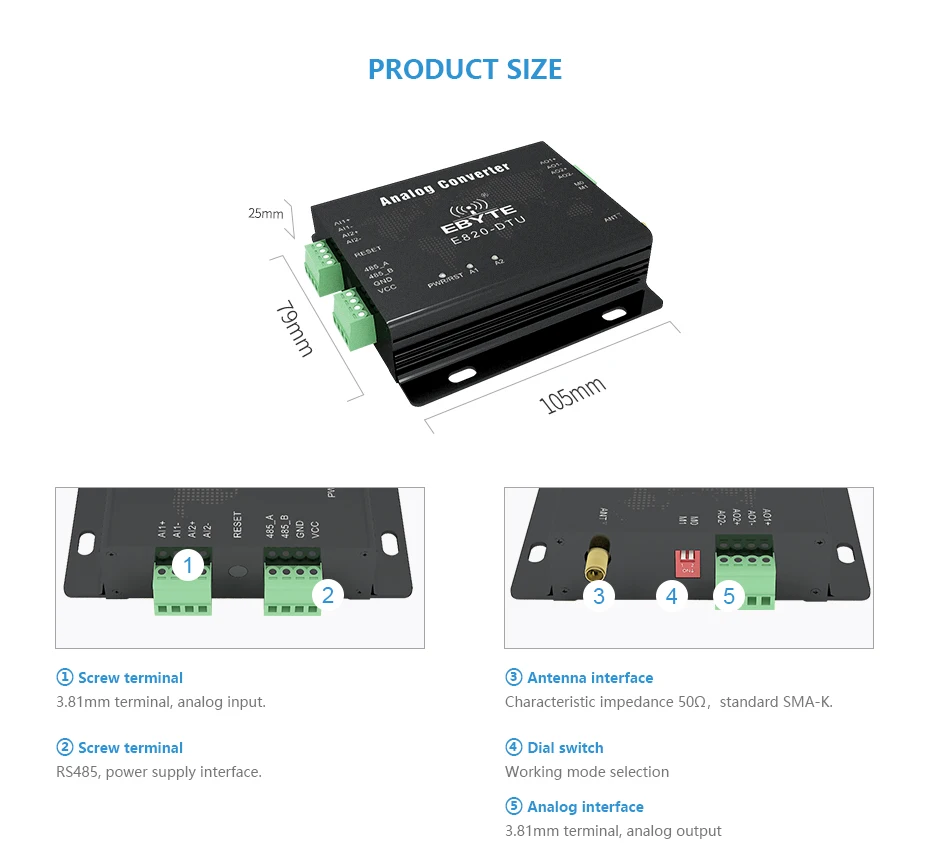

Hardware Parameter	Index
Size (HWD)	12410525 mm
Weight	138±2 g
Operation temperature	-20℃ -+70℃
Storage temperature	-40℃ -+85℃
Operation humidity	5% ~ 95%
Storage humidity	1% ~ 95%
Operation voltage	8V ~ 28V
Current collecting range	0mA ~ 20mA
Current output range	0mA ~ 20mA
Precision	0.2%
Data interface	RS485:9600bps

Pin No.	Pin Item	Function	Description

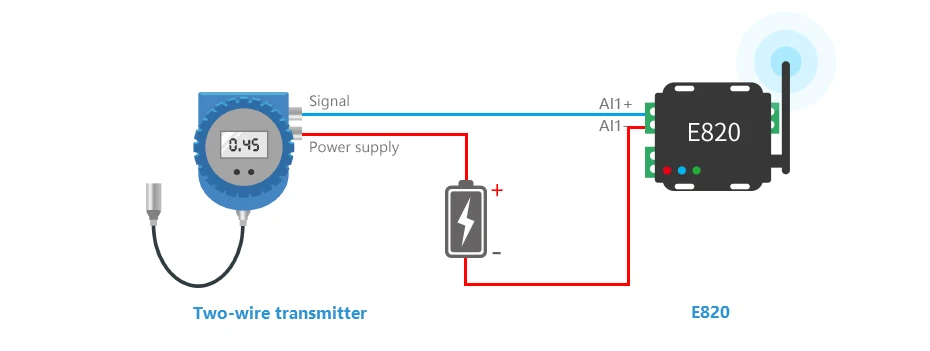

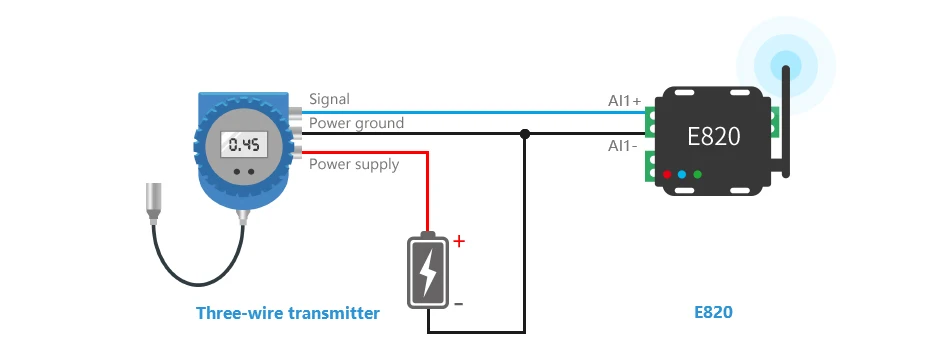

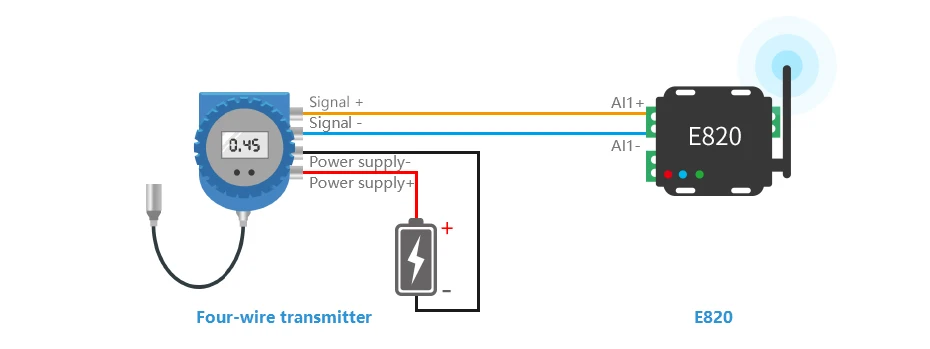

1	AI1+	Analog signal input channel 1 positive	Analog signal input pin, forms input with AI1-
2	AI1-	Analog signal input channel 1 negative	Pair with AI1+
3	AI2+	Analog signal input channel 2 positive	Analog signal input pin, forms input with AI1-
4	AI2-	Analog signal input channel 2 negative	Pair with AI2-
5	RESET	Reset button	Reset device address by long-pressing 5s
6	485_A	RS_485 A	RS_485 A connects with device A connector
7	485_B	RS_485 B	RS_485 B connects with device B connector
8	GND	Wire pressing power input negative	Power GND
9	VCC	Wire pressing power input positive	Power input end, DC 8V~28V, 12V/24V recommended
10	PWR/ACK	Power/reset successful indicator	Dual-color indicator, blue represents power, green represents reset successful.
11	A1	RF data TX/RX indicator	Dual-color indicator, blue represents data TX, green represents data RX (channel 1)
12	A2	RF data TX/RX indicator	Dual-color indicator, blue represents data TX, green represents data RX (channel 2)
13	ANT	Antenna connector	433MHz antenna
14	DIP switch	Mode selection	M1M0(00, 01, 10, 11)
15	AO2-	Analog signal output channel 2 negative	Pair with AO-
16	AO2+	Analog signal output channel 2 positive	Analog signal output pin, forms output with AO2-
17	AO1-	Analog signal output channel 1 negative	Pair with AO+
18	AO1+	Analog signal output channel 1 positive	Analog signal output pin, forms output with AO1-
