190HP Brand new sem 919 mini motor grader with ripper Products from Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

Product Details

Rated power:	140kw;	Supply Ability:	1000 Unit/Units per Month;
Engine Brand:	SDEC SC9DK190.1G3;	Reverse Speed(km/h):	25;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	After-sales Service Provided:	Overseas service center available, Engineers available to service machinery overseas, Overseas third-party support available;
Brand Name:	SEM;	Max. Depth of Cut:	715mm;
Max. Lifting Height:	475mm;	Packaging Detail:	Nude package, in 40HC container;
Forward Speed(km/h):	40;	Port:	Shanghai port;
Hydraulic Cylinder Brand:	SEM;	Applicable Industries:	Machinery Repair Shops,Manufacturing Plant,Farms,Retail,Construction works ,Energy & Mining;
Dimension(LWH):	870326303360mm;	Warranty:	1 year;
Engine Brand:	Shangchai;	Blade Length (LWH):	3,97425607mm;
Condition:	New;	Certification:	ISO CE;
UNIQUE SELLING POINT:	High operating efficiency;	Transmission Type:	Hangchi 6WG180;
Place of Origin:	Shandong China;

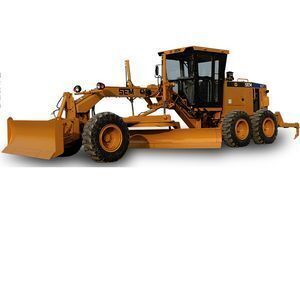

190HP Brand new sem 919 mini motor grader with ripper

Contact Person: Mandy Chen
Sales Director
Mobile: +18301769457(Whatsapp/Wechat)
E: mandy at oriemac.com

Item	SEM919	SEM921
Overall weight (kg)	15070	15930
weight - front axle(kg)	4236	4744
weight - back axle(kg)	10834	11186
Front / back axle load distribution	28% /72%	30% /70%
Overall dimension(mm)	870326303360	885426303360
Max. Tractive Force(KN)	≥78	≥85
Max. forward speed(km/h)	40	40
Max. backward speed(km/h)	25	25
Engine	Shangchai	Shangchai
Model	SC9DK190.1G3	SC9DK220G3
Rated power(kw)	140	162
Rated revolution(rpm)	2200.0	2200.0
Displacement(L)	8.8	8.8
Transmission	Hangzhou advance gearbox	Hangzhou advance gearbox
Gear	6 in the front 6 and 3 in the back	6 in the front 6 and 3 in the back
Hydraulic system	load sensing, proportional priority with pressure compensation	load sensing, proportional priority with pressure compensation
Working pump	Variable Piston Pump	Variable Piston Pump
Working valve	Proportional priority with pressure compensation	Proportional priority with pressure compensation
Tire	Diagonal tire with inner tube	Diagonal tire with inner tube
Layer/pattern	12pr, E2/L2	12pr, E2/L2
Model	17.5-25	12pr, E2/L2
Max. articulation angle(°)	±20	±20
Min. turning radius(m)	≤7.8	≤7.8
Shovel floating	Standard	Standard
Shovel length(m)	4.0	4.3
