11 Seats/ 14 Seats Sightseeing Bus Electric City Sightseeing Bus with low price

Supplier: Shandong Chengda Auto Sales Co., Ltd.
Region: Shandong, China
Contact: Mr Alan Lee
Price: $3500.00 / >=5 units
Min. Order: 5 units

Click here to contact

Product details

Port:	Qingdao Port/Tianjin Port/All China Main Port;	Motor:	48V4KW DC;
Brand Name:	wuling;	Packaging Detail:	Nude Packing with max sprayer before shipping by containers;
Delivery Detail:	7 days after receiving 30% T/T down payment;	Seats:	4-12 Seats;
Passenger Capacity:	8(2+3+3);	Controller:	Enpower electronics controller;
Max Speed:	30km/h;	Product Name:	11 Seats/ 14 Seats Sightseeing Bus Electric City Sightseeing Bus;
Power:	Electric;	Supply Ability:	50000 Unit/Units per Month;
Model Number:	WLD2081(48V);	Battery:	48V/72V;
Oversize Dimension:	411015301900mm;	Place of Origin:	Guangxi China;
Charger:	on-board charger; time 8-10hours;	Carrying Capacity:	510-3400kg;
Payment Terms:	L/C,T/T,Western Union;

Product Description

Introduction

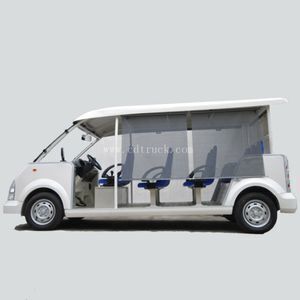

11 Seats/ 14 Seats Sightseeing Bus Electric City Sightseeing Bus

Wuling Sightseeing Car series are designed and manufactured based on Wuling’s experience of vehicle design and manufacturing for more than 30 years.

Electric Sightseeing Car

Wuling Electric Sightseeing Car series configured a powerful DC series excitation motor, its rated power is 5KW, and its max torque is 75N.m, it is technically mature, stable and reliable. Rear motor rear drive layout.

Chilwee maintenance-free lead-acid power battery with long lifespan, high capacity, environment-friendly, good high-rate discharge performance, good low-temperature discharge performance and good heavy load discharge performance to ensure the long cruising range.

American Curtis motor controller, widely used in the low-speed vehicle industry is stable and reliable, the efficiency≥96%

The electricity consumption for a fully discharged vehicle to be recharged to full is about 13kwh.

The Electric Sightseeing Car series include 8 seats model WLD2081, 11 seats model WLD2111 and 14 seats model WLD2140, and they are customizable according customers’ requirements.

Parameters

8 Seats 11 Seats 14 Seats Open Top Sightseeing Bus Customized City Sightseeing Bus for sale

Model		WLD2060	WLD2081(48V)	WLD2081(72V)	WLD2111	WLD2140
Passenger Capacity		5	8		11	14
Seats Layout		2+3	2+3+3		2+3+3+3	2+3+3+3+3
Key Components	Controller	48V	American Curtis Electronics Controller
	Motor	48V 4KW	48V 4KW	72V 5KW
	Battery	48 V 150 Ah(C3)	48V 180Ah (C3)	72V 180Ah (C3)	72V 180Ah (C3)	72 V 180 Ah(C3)
	Charger	On-board charger, charging time: 8-11 hours	Off-vehicle efficiency charger, charging time: 8-11 hours
Size	Overall Dimension (mm)	3350×1530×1870	3995×1600×2090		4615×1600×2090	5270×1600×2115
	Wheelbase (mm)	2130	2615		3235	3235
	Tread(mm, F/R)	1280/1290	1415/1340
Carrying Capacity(kg)		510	680		935	1190
Curb Weight(kg)		800	1120	1265	1350	1450
Performance	Min Turning Diameter(m)	9.5	12.2		14.2	15
	Min Clearance(mm, fully loaded)	150	118		118	120
	Grade Ability(°,fully loaded)	10	13		13	10
	Max Speed(km/h)	30	30
	Cruising Range(km)	80	70	110	100	≥100
Transmission		Single gear with constant ratio
Brake		Front disc/ Rear drum
Steering		Pinion and rack	Pinion and rack, electric power steering
Tyre		165/70R13	175/70R14LT
