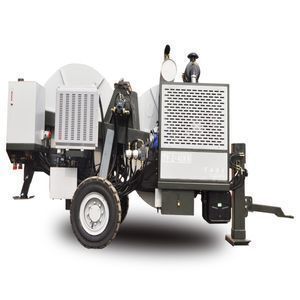

transmission line equipment TY2X40kn wire tension machine

Click here to contact
Product details
Certification:ISO9001;Warranty:1 year;
OEM:available;Selling Units:Single item;
After-sales Service Provided:Engineers available to service machinery overseas;Operating handle:German Rexroth;
Single package size:430X225X270 cm;After-sales Service Provided:Field installation, commissioning and training;
Usage:electric;Condition:New;
Machine Type:.;Engine:Cummins;
Local Service Location:None;Applicable Industries:Construction works ;
Product name:wire tension machine;Place of Origin:China;
Brand Name:boyu;Single gross weight:5,800 KG;
Showroom Location:None;After Warranty Service:Field maintenance and repair service;
Key Selling Points:Long Service Life;



transmission line equipment TY2X40kn wire tension machine



wire tension machine Characteristics

Bull-wheel diameter: 1300/1500mm

Max conductor diameter: 40mm

Groove number: 2x5

Total weight: 5800kg

Overall dimension (length*width*height): 4300×2250×2700mm



wire tension machine Main configuration

Engine: Cummins

Hydraulic pump: German Rexroth/Dnish Danfoss

Main motor:German Rexroth/French Leduc

Speed reducer: German Rexroth

Hydraulic meter: German WIKA

Operating handle:   German Rexroth



wire tension machine Configuration

Hydraulic dynamometers

Hydraulic oil cooling system

Digital speed and meter counter

Hydraulic front stabilizer

Grounding connection point

Hydraulic power pack to control up to 2 separated drum stands with hydraulic motor



wire tension machine Performance

Max intermittent pull: 2x45kN

Max continuous pull: 2x40kN

Speed at max pull: 2.5km/h

Max speed: 5km/h

Pull at max speed: 2x20kN

Max reverse pulling force: 2x35kN

Max reverse pulling speed: 5km/h



Engine

Diesel   77kw(103hp)

Cooling system   water

Electrical system  24V



Additional Devices

Lighting system for the trailer

2 hydraulic rope/conductor clamp(extra charge)

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Digital speed and meter counter



More pictures:



Other models

Model

Max

intermittent tension

Max continuous tensionSpeed at max tensionMax speedTension at max speedMax reverse pulling forceMax reverse pulling speedDieselCooling systemElectrical system
kNkNkm/hkm/hkNkNkm/hkw(hp) V
TY1X7.5 7.5 2.4
TY1X20 20 5
TY1X20II 20 4
TY1X20III 202.551015

10kw

(3600rpm)

Air
TY1X30  302.551520 12(16) 12
TY1X4045402.552035 77(103)Water24
TY1X5050402.5525452.477(103)Water24
TY140IV1x1401x1202.55351x1201.277(103)Water24
TY2X35

2x40/

1x80

2x35/

1x70

2.55

2x20/

1x40

2x30/

1x60

577(103)Water24
TY2X40

2x45/

1x90

2x40/

1x80

2.55

2x20/

1x40

2x35/

1x70

577(103)Water24
TY2X50

2x55/

1x110

2x50/

1x100

2.55

2x25/

1x50

2x45/

1x90

577(103)Water24
TY2X70

2x70/

1x140

2x65/

1x130

2.55

2x25/

1x50

2x60/

1x120

577(103)Water24
TY2x70IV

2x70/

1x140

2x65/

1x130

2.55

2x25/

1x50

2x60/

1x120

577(103)Water24
TY2X90

2x100/

1x200

2x90/

1x180

2.55

2x40/

1x80

2x80/

1x160

2

130kw

(2500r/min)

Water24
TY4x50

4x50/

2x200

4x40/

2x80

2.55

4x20/

2x40

4x40/

2x80

1.2577(103)Water24



Model Bull-wheel diameterMax conductor diameterMax optical fiber cable diameterGroove widthGroove numberTotal weightOverall damension
mmmmmmmm kgmm
TY1X7.51100242122018502300*1250*1620
TY1X201300402155519204080*1930*2300
TY1X20II80023 4559502400*1500*1650
TY1X20III80022.5 55511502500*1500*1700
TY1X30 1300402160520643700*1950*2150
TY1X401300402155534304000*2000*2300
TY1X501300/1500552168624004000*1900*2300
TY140IV150040  16100005500*2280*2700
TY2X35130040  2x545004300*2250*2700
TY2X401300/150040  2x562304300*2250*2700
TY2X501300/150040  2x560004700*2300*2700
TY2X70170040  2x675004700*2300*2700
TY2x70IV150040  2x8100005500*2280*2700
TY2X90190050  2x675005400*2300*2700
TY4x50150040  4x5130005900*2300*2700



Production workshop



Company introduction

Jiangsu Province Yixing Boyu Electric Power Industry Company is located in west side of the beautiful and fertile Taihu Lake.

Our company is high-tech enterprise of Jiangsu province having six patents, including two invention patents. Our company has a total area of 42800 square meters, having formed four series products:

1: Electric power construction tools

2: Nonmetallic galvanized the production equipment (Achieved high-tech products)

3: Numerical control machine

4: Low voltage no power-arc furnace compensation system

History

Founded in 1993, Yixing city power machinery factory

Established in 1997, Yixing city Boyu power machinery Co., LTD

In 2001 the company passed ISO9001 certification, and obtain the AAA certificate

In 2006 attains the Wuxi city contract trustworthiness enterprise, also achieved famous brand product in Wuxi city

In 2007 attains the high-tech enterprise of Jiangsu province, also achieved brand-name products in Jiangsu province

In 2009 reworded significant achievement in Wuxi city

In 2010 Boyu cooperated with Germany famous Caesar Company establishing the Boset brand

In 2010 achieved the national ministry of science and technology innovation in science and technology project.

To November 8, 2010, Boyu enterprise has already sell puller and tension equipment (excluding mobile ground grinding) nearly 4000 sets. Our products are sold well in Sudan, Kenya, Angola, Pakistan, Burma, India, Mexico, Germany.
