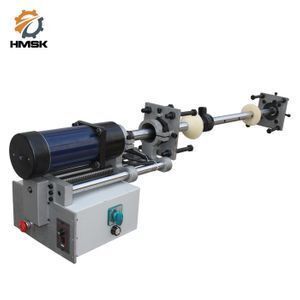

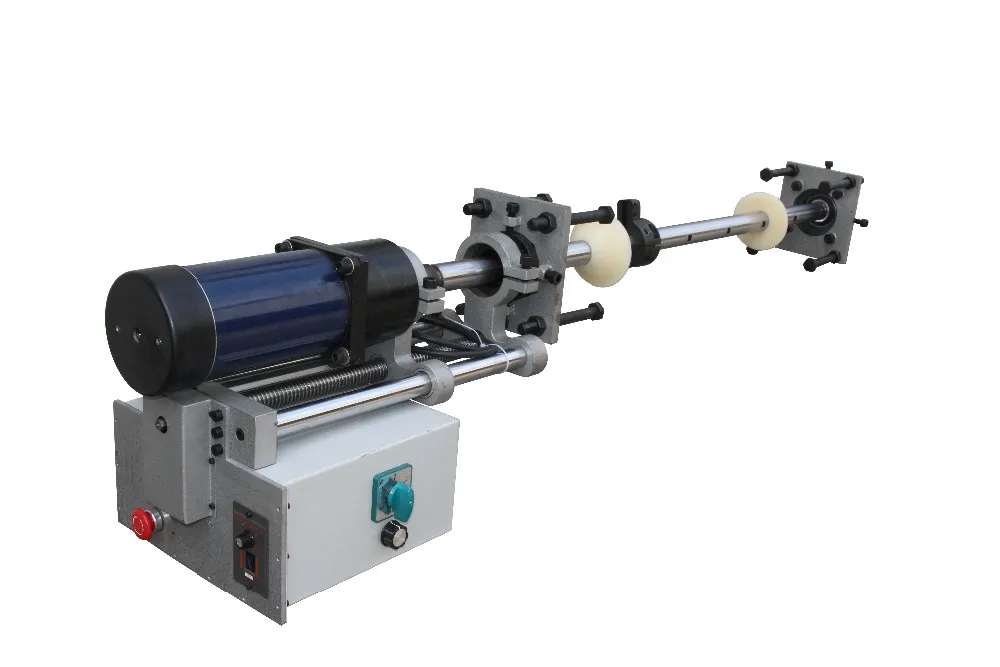

JRT40 portable line boring machine

Supplier: WMT CNC Industrial Co., Ltd.
Region: Anhui, China
Contact: Ms Jesse Wong
Price: $1200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Color:	Custmized;	Boring bar rotate speed variable:	0-87rpm;
Logo:	OEM;	Port:	JRT40 portable line boring machine delivered at Shanghai port, qingdao port , ningbo port;
Power(W):	1.2KW;	Name:	Line Boring Machine;
Place of Origin:	Anhui China;	Brand Name:	HMSK;
Packaging Detail:	Line boring machine is packed with standard export package;	JRT40 portable line boring machine:	Boring machine;
Voltage:	220V/380V;	After-sales Service Provided:	Engineers available to service machinery overseas;
Supply Ability:	100 Set/Sets per Month;	Machining hole face roughness:	RA3.2;
Dimension(LWH):	350x272x725 mm;	Weight:	100KG;
After-sales Service Provided:	Video technical support;	Warranty:	1 year;
CNC or Not:	Normal;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Production Capacity:	200 Sets / Month;	Axial feed travel:	390mm;
Usage:	Construction machinery;	Condition:	New;
Certification:	ISO CE;	Bore diameter:	45-200mm;

Product Description

Features:

Modular components make setup quick and easy
Flexible and high quality design, aluminum alloy frame make the machine portable
Optional facer tool make the machine more versabile
Spherical bearing mounts system allow quick setup
Gear box allow manual and automatic feed
Drive power provide by a brushless DC motor,powerful and stable
Could use on repairing the inner wall of the pipes,crane rotary holes,stern shaft holes and rudder holes and so on.

Specification	JRT40
Boring bar dia.and length	dia.40X1500mm
Boring dia.range	dia.45-200mm
Facing dia.	dia. 50-260
Power unit	1.2KW
Boring bar rotate speed variable	0-87rpm
Axial feed per revolution variable	0-0.6mm/r
Axial feed travel	390mm
Machining hole face roughness	RA3.2
Machining hole roundness tolerance	≤0.04mm

Standard accessories:

Boring bar(length of 1500mm) 1 pcs

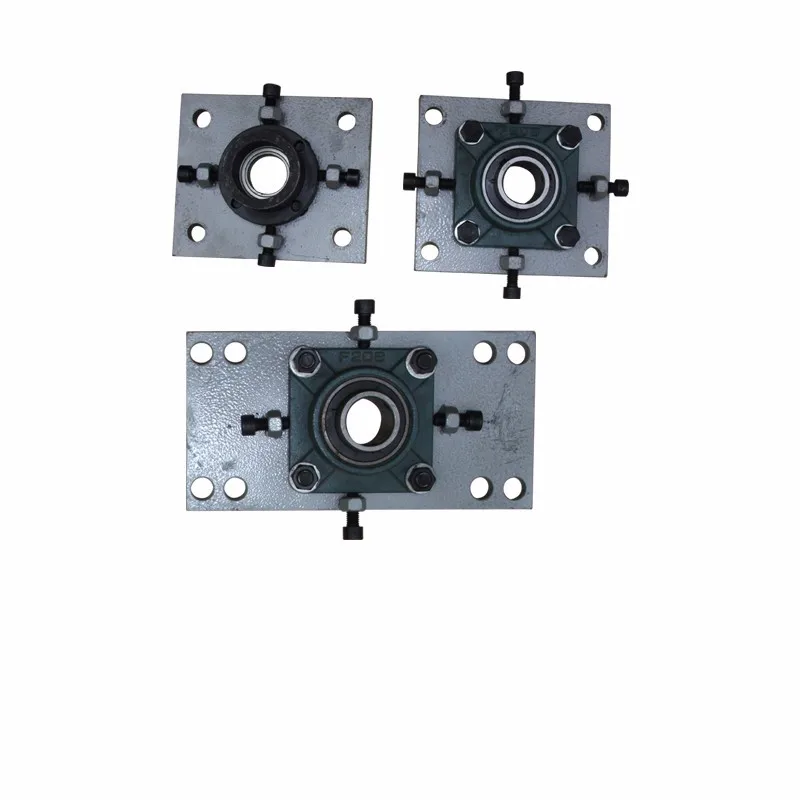

bearing support assembly (bearing contained) 2 set

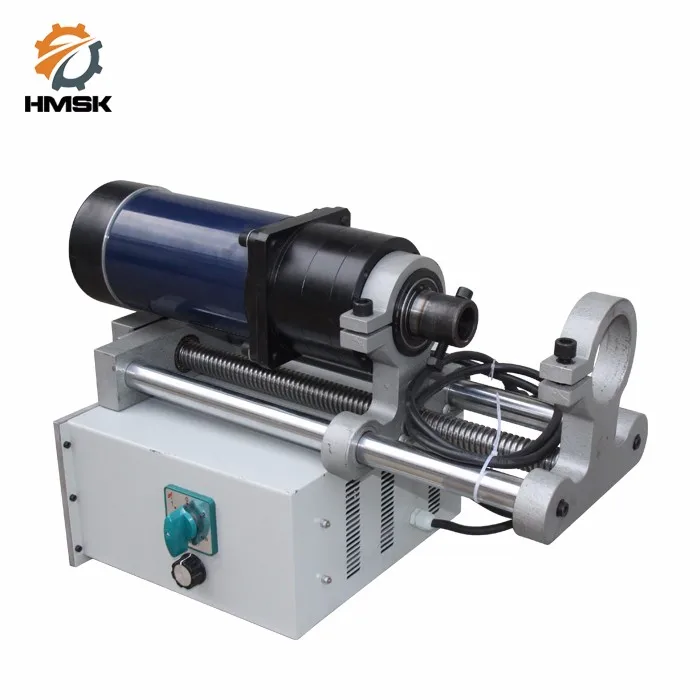

Main body 1 pcs
Bolts for welding(nuts contained) 8 pcs

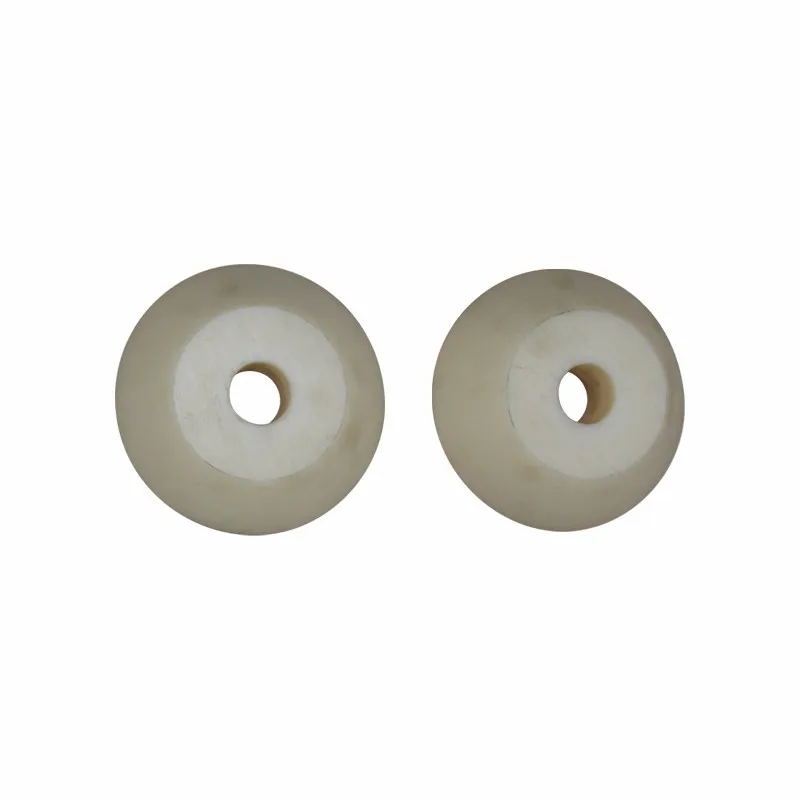

Tapered positioning block (Nylon) 4 pcs
Tool holder 3 pcs
Cutter tools 2 pcs
Other tools 1 set
Operating manual 1 pcs
