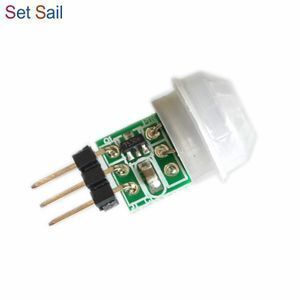

Mini IR Pyroelectric Infrared PIR Human Motion Sensor AM312 Automatic Detector Module DC 2.7 to 12V HC-SR312

Supplier: Shenzhen Setsail Business Co., Ltd.
Region: Guangdong, China
Contact: Mr Jason Chen
Price: $0.80 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Supply Ability:	10000 Piece/Pieces per Week;	Brand Name:	Setsail;
Output:	Analog Sensor;	Packaging Detail:	yes;
PCB Dimensions:	10mm * 8mm;	accept Customized:	yes;
Delay time:	2 seconds;	Block time:	2 seconds;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal RMB;	Port:	shenzhen;
type:	AM312;	voltage:	DC 2.7-12V;
style:	Infrared Motion Sensor;	Model Number:	OP20;
Theory:	Ultrasonic Sensor;	Usage:	Position Sensor;
Place of Origin:	Guangdong China (Mainland);

Mini IR Pyroelectric Infrared PIR Human Motion Sensor AM312 Automatic Detector Module DC 2.7 to 12V

Features:

1. Low power consumption, small size, easy to install
2. Internal use of digital signal processing, pit interference strong
3. High sensitivity, reliability, and can be widely used in automatic sensing circuit
4. Repeatable trigger mode: that is, after the induction output is high, in the delay period, if the body in its induction range of activities, the output will remain high until the delay after the person to become Low level. (Ie, the sensing module automatically detects a delay period after each activity of the human body, and takes the last active time as the starting point for the delay time).

Technical Parameters:

Operating voltage: DC 2.7-12V;
Static power consumption: <0.1mA;
Delay time: 2 seconds;
Block time: 2 seconds;
Trigger mode: repeatable;
Sensing range: ≤ 100 degrees cone angle, 3-5 meters; (according to the specific lens)
Working temperature: -20 - + 60 ℃

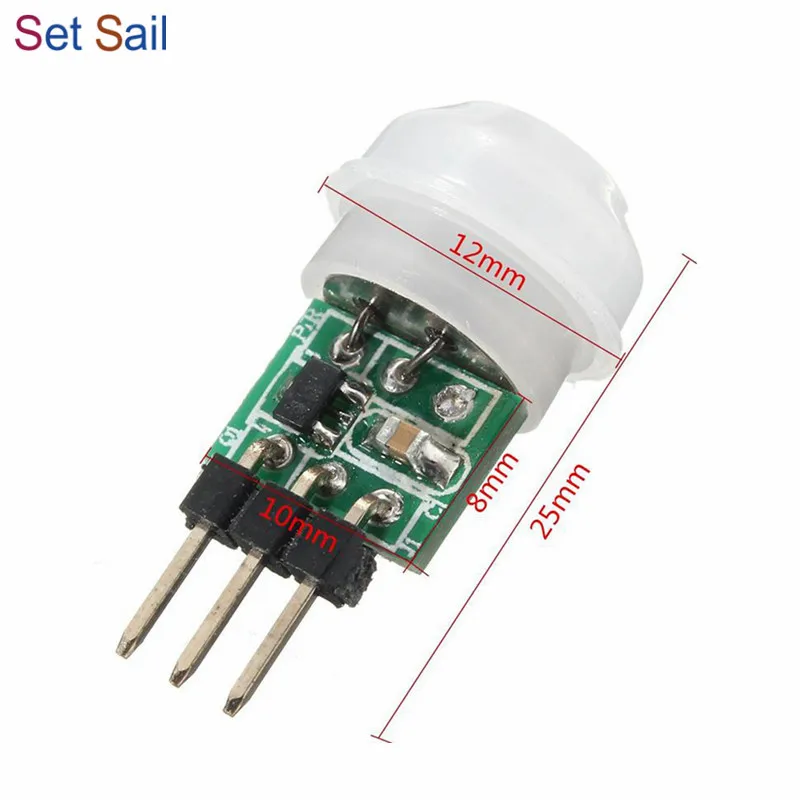

PCB Dimensions: 10mm * 8mm
Module lens: small lens

Package Included:
1 X PIR Motion Detector Sensor

Our Services

Why choose us:

1.Fast shipment,most products are instock, we are in shenzhen,you can recieve package fast than other city.

2.We can give better price for most product.

3.We have many diffirent products,so you buy it together, don’t need choose more supplier.

4.Our employee is very professional,so we can give best service and fast reply.

FAQ

our mail products:voltmeter/ammeter/battery capacity tester/temprature controller meter

DC DC converter/relay module/amplifier/motor controller

Payment:we can accept paypal west union TT RMB payment

Shiping:we will send out package asap,it normal 3-7days,we can send by DHL Fedex UPS DPEX

EMS....
