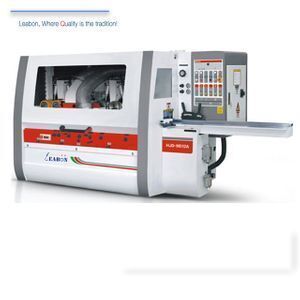

HJD-M516A 4 sides wood moulder planer for ceiling

Supplier: Foshan Leabon Machinery Company Limited
Region: Guangdong, China
Contact: Mr Daniel Liu
Price: $11580.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	2900x1200x1610mm;	Brand Name:	LEABON;
After-sales Service Provided:	Engineers available to service machinery overseas;	Four side moulder working width:	25~160mm;
Four side moulder feeding speed:	7~35m/min;	Warranty:	1 Year;
Place of Origin:	Guangdong China (Mainland);	Weight:	1830kg;
Four side moulder general power:	26.25kw/35.2HP;	Type:	Four Side Moulder;
Power(W):	18.75kw;	Port:	Shunde/ Shenzhen/Guangzhou;
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram;	Condition:	New;
Voltage:	380v 50hz 3phase/Customized;	Supply Ability:	200 Set/Sets per Month 4 Sided Planer Moulder;
Four side moulder working thickness:	8~120mm;	Certification:	CE ISO;
Packaging Detail:	woodworking four side moulder machinery use Film Packing/plywood packing is available in case you need;

Product Description

Four Side Moulder

Spindle moulder 4 side wood planer moulder lower wood planing machine price 4~18m/min feeding speed thickness planer HJD-M512A is a kind of planer products for woodworking machine Mainly used for processing wood square, board, adornment wood line, top and down sides for planing light treatment and MDF Flooring Automatic Production Line. Leabon Machinery is specialized in the manufacture and R&D for woodworking machines,your special requirements are welcome.

To get assembly accuracy and the guarantees for reasonably ensure machines quality, we have invested in high precision machining equipment at our factory and have been committed to produce key parts of our planers.

HJD-M516A High Speed Moulder Specification
Machine Parameter	Working Width	25~160mm
	Working Thickness	8~120mm
	Working Table Length	1800mm
	Feeding Speed	7~35m/min
	Main Shaft Diameter	40mm
	Main Shaft Revolution	6800r/min
	PneumaticSource Pressure	0.6Mpa
Motor Power	1st Lower Shaft	/
	1st Upper Shaft	5.5kw/7.38hp
	Right Vertical Shaft	4kw/5.36hp
	Left Vertical Shaft	4kw/5.36hp
	2nd Upper Shaft	4kw/5.36hp
	2nd Lower Shaft	4kw/5.36hp
	Feeding Beam Lifting	0.75kw/1hp
	Feeding Motor	4kw/5.36hp
	General Power	26.25kw/35hp
Cutter Diameter	Right Vertical Shaft	Ø125~ Ø180mm
	Left Vertical Shaft	Ø125~ Ø180mm
	1st Lower Shaft	Ø125mm
	1st Upper Shaft	/
	2nd Upper Shaft	Ø125~ Ø180mm
	2nd Lower Shaft	Ø125~ Ø180mm
Remark	Feeding Wheel Diameter	Ø140mm
	Dust Outlet Diameter	Ø140mm
	Overall Size (LxWxH)	3550X1630X1750mm
	Net Weight	2860kg
	Wooden Case Packing Size (LxWxH)	3570X1650X1770mm

Four Side Moulder Features

1) This adopts step-less material feeding,material feeding speed ranges from 5 to 22 m/min.

2) Each main shaft is driven by independent electric motor,cutting force is powerful.

3) Main shaft is adjusted to force on the front,operation is convenient.

4) Hard chrome plating work table is durable.

5) Equips with auxiliary unit alarming lack of material,it effectively improves smooth feed-in while lack of material.

6) Multi-group drive rollers improve feeding efficiency.

7) International brands electical parts are applied for good stability.

8) Spare parts are thick and solid to maintain high precision ,high stability and high reliability.

9) Pneumatic compressed feeding roller is applied,the pressing force can be adjusted by stages which is favorable for smooth feeding of timbers with different thickness.

10) Completely sealed safety shield can avoid flying of saw dust and isolate noise efficiently and protect operators.
