Electric heating system high quality heating cable

Product details
Color:Orange;Supply Ability:10000 Meter/Meters per Month;
Brand Name:Huanrui;Insulation Material:PVC;
Port:Shanghai;Place of Origin:Zhejiang China;
Application:Electric Heating System;FSR Series:FSR-P/ FSR-PB/FSR-PF;
Function:Floor Heating Systerm;Conductor Material:Copper Clad Aluminum;
Material:Copper;Voltage:110v-120v/220v-240v;
Jacket:PVC;Payment Terms:L/C,T/T,Paypal;
Number of Conductors:Twin Conductor;
FSR heating cable

Up to 65℃, FSR heating cable.

FSR Self  Regulating Heating Cables provide the most versatility in heat trace designs and applications.

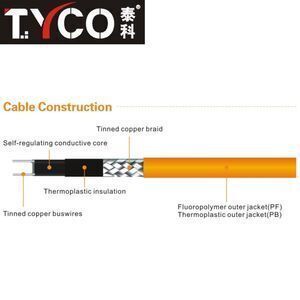

Construced of a semiconductive heater matrix extruded between parallel bug wires, a self-regulating cable adjusts its our put to independently respond to ambient tmeperature all along its length. As temperature increasing, the heater's resistance increases wihch lower the output wattage.

Conversely, as the temperature decreasing, the resistance decreased and the cable produces more heat.

So it does not need thermostat in some application.

It will never overheat or burnout even when wrapped by itself (overlapped). It can also be cut to any length.

The resulf- an energy efficient heating cable. With optional outer jackest, the heating cable is resistant to watert and inorganic chemicals and protect against abrasion and impacted damage.

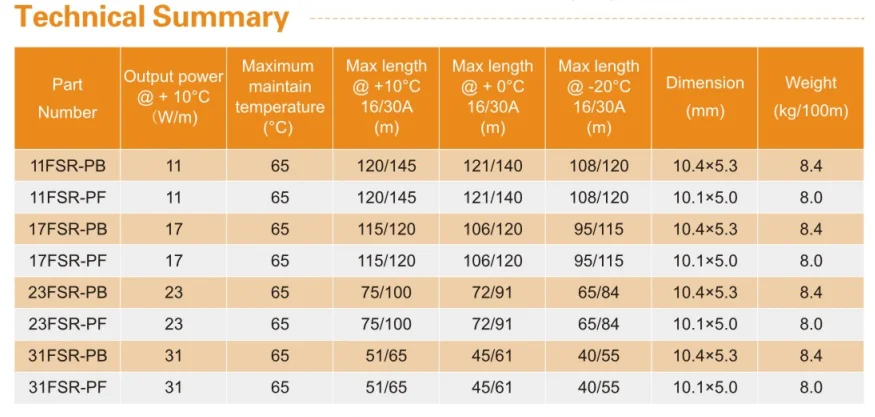

Technical Data
Output wattage
11,17,23,31(W/m)
Maximum maintain temperature
65 ℃
Maximum exposure temperature
85℃
Minimum installation temperature
-40℃
Work voyage
110V-120V /220V-240V
FSR series
FSR-P
Tinned copper metal braid
FSR-PB
Thermoplastic outer jacket
FSR-PF
Fluoropolymer outer jacket
Max resistance of braid
≤ 18.2 Ω/km
Bus wire gauge
18 AWG
Approvals
CE
Application

FSR is designed for Commercial and residential metal and plastic pipe process temperature maintenance and frost protection of regular pipelines, tanks, valves, flanges. oof & gutter de-icing and other application where work under low temperature. A UV stabilized thermoplastic elastomer outerjacket is provided to cover the braid for wet applications and exposure to the sun. It is suitbale for non-hazardous area, also hazardous area and corrosive area can use products with fluoroplymer outer jacket.

Size
+
Power output
+
